Überblick

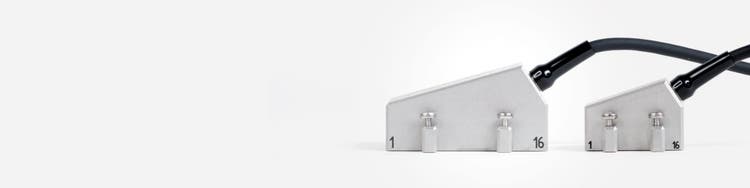

Deep penetration probes can be matched to a wide selection of wedges to suit any angle beam application. These probes are dedicated to deep penetration applications such as the inspection of thick plates and welds, forging, and noisy or granular material.
Advantages
- Wave layers with acoustic adaptation to Rexolite®
- Captive anchoring screws are provided with the probe.
- A wide selection of wedges is available to suit any angle beam application.
Typical applications
A3, A4, and A5 probes
Deep penetration applications
- Thick plates and welds
- Forging
- Noisy or granular material
Probe specifications and dimensions
Part number
Frequency
(MHz)
(MHz)
Number of elements
Pitch
(mm)
(mm)
Active
Aperture (mm)
Aperture (mm)
Elevation(mm)
External dimensions
mm (in.)
mm (in.)
L
W
H
3.5L16-A3
3.5
16
1.60
25.6
16.0
36 (1.41)
36 (1.41)
25 (0.98)
5L16-A3
5.0
16
1.20
19.2
12.0
36 (1.41)
36 (1.41)
25 (0.98)
1.5L16-A4
1.5
16
2.80
44.8
26.0
57 (2.25)
46 (1.80)
30 (1.19)
2.25L16-A4
2.25
16
2.00
32.0
20.0
57 (2.25)
46 (1.80)
30 (1.19)
2.25L32-A5
2.25
32
0.75
24.0
24.0
29 (1.15)
43 (1.67)
24 (0.96)
5L32-A5
5.0
32
0.60
19.2
20.0
29 (1.15)
43 (1.67)
24 (0.96)
These probes come standard with an OmniScan® connector and a 2.5 m (8.2 ft) cable or can be specially fitted with other connectors and cable lengths.
