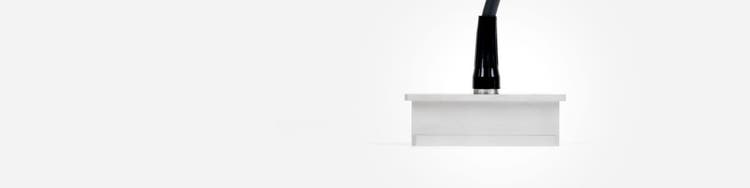

Immersion probes are designed to be used with a water wedge or in an immersion tank when the test part is partially or wholly immersed. They are longitudinal wave probes that can be set up for refracted shear-wave inspections using a Rexolite wedge.
Advantages
- Acoustic impedance matches water
- Design allows fitting on water wedges for easier coupling on many surfaces and an adjustable water path (when the part to be inspected cannot be immersed in a tank).
- Linear scanning allows coverage of 30 mm to 90 mm in one line, with very high accuracy.
- Corrosion-resistant stainless steel case
- Waterproof guaranteed up to 1 m (3.28 ft) under water
Typical Applications
- Inspection of thin plate or tubing (steel, aluminum, or other)
- Composite inspection for delamination, disbonding, etc.
- Inline thickness gaging
- Automated scanning
Probe Specifications and Dimensions
Part Number
Item Number
Frequency
(MHz)
(MHz)
Number of Elements
Pitch
(mm)
(mm)
Active Aperture
(mm)
(mm)
Elevation
(mm)
(mm)
External Dimensions
mm (in.)
mm (in.)
L
W
H
5L64-I1
U8330323
5.0
64
0.60
38.4
10.0
50 (1.97)
19 (0.75)
25 (0.98)
10L64-I1
U8330012
10.0
64
0.50
32.0
7.0
50 (1.97)
19 (0.75)
25 (0.98)
5L128-I2
U8330031
5.0
128
0.60
76.8
10.0
83 (3.27)
21 (0.83)
35 (1.38)
10L128-I2
U8330004
10.0
128
0.50
64.0
7.0
83 (3.27)
21 (0.83)
35 (1.38)
2.25L128-I3
U8330351
2.25
128
0.75
96.0
12.0
102 (4.02)
21 (0.83)
35 (1.38)
5L128-I3
U8330379
5.0
128
0.75
96.0
10.0
102 (4.02)
21 (0.83)
35 (1.38)
7.5L60-I4
U8330955
7.5
64
1.0
64.0
7.0
73 (2.87)
24 (0.94)
25 (0.98)
These probes come standard with an OmniScan® connector and a 2.5 m (8.2 ft) cable or can be specially fitted with other connectors and cable lengths.
