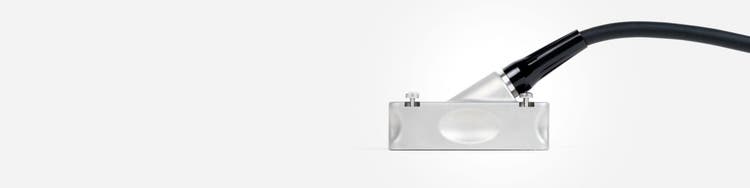

The universal probes are designed to have a low-profile probe/wedge combination for easier access in restricted areas. A wide selection of wedges is available to suit any angle beam application. These probes are used for manual or automated inspection of 6.35 mm to 38 mm thick welds and the inspections of castings, forgings, pipes, tubes, and machined and structural components for cracks and welding defects.

Advantages

  • Probes are designed to have a low-profile probe/wedge combination for easier access in restricted areas.
  • Wave layers with acoustic adaptation to Rexolite
  • Captive anchoring screws are provided with the probe.
  • A wide selection of wedges is available to suit any angle beam application.

Typical Applications

A10, A11, and A12 Probes

  • Manual or automated inspection of 6.35 mm to 38 mm (0.25 in. to 1.5 in.) thick welds
  • Detection of flaws and sizing
  • Inspections of castings, forgings, pipes, tubes, and machined and structural components for cracks and welding defects

Probe Specifications and Dimensions

Part Number
Item Number
Frequency
(MHz)
Number of Elements
Pitch
(mm)
Active Aperture
(mm)
Elevation
(mm)
External Dimensions
mm (in.)
L
W
H
5L16-A10
U8330595
5.0
16
0.60
9.6
10.0
23 (0.91)
16 (0.63)
20 (0.79)
10L32-A10
U8330251
10.0
32
0.31
9.9
7.0
23 (0.91)
16 (0.63)
20 (0.79)
5L32-A11
U8330274
5.0
32
0.60
19.2
10.0
25 (0.98)
23 (0.91)
20 (0.79)
5L64-A12
U8330593
5.0
64
0.60
38.4
10.0
45 (1.77)
23 (0.91)
20 (0.79)
5L60-A14
U8330785
5.0
60
1.0
60.0
10.0
68 (2.68)
23 (0.91)
20 (0.79)
7.5L60-A14
U8330804
7.5
60
1.0
60.0
10.0
68 (2.68)
23 (0.91)
20 (0.79)

These probes come standard with an OmniScan® connector and a 2.5 m (8.2 ft) cable or can be specially fitted with other connectors and cable lengths.
