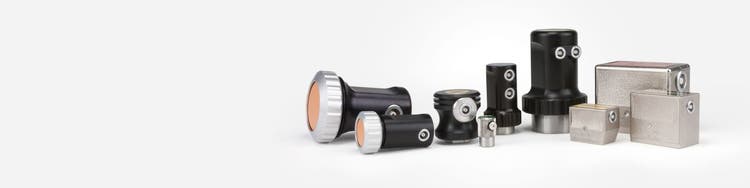

Die den europäischen Normen entsprechenden Atlas-Schallköpfe besitzen LEMO-Stecker, übliche Frequenzen wie 1, 2 und 4 MHz und Elementdurchmesser in Millimetern. Sie entsprechen den in Europa und der restlichen Welt üblichen Prüfkriterien.

Kontaktschallköpfe

Freq.
MHz
Nominal
Element
Size mm
Transducer Part # Near
Field mm
Typical
Bandwidth (%)
Connector Connector
Location
Outline #
2 10 CN2R-10 7.2 85 LEMO® 00 Right Angle 3
24 CN2R-24 45 85 LEMO 00 Right Angle 4
4 10 CN4R-10 15.6 85 LEMO 00 Right Angle 3
24 CN4R-24 91 85 LEMO 00 Right Angle 4
5 5 CN5R-5 5 60 Microdot Right Angle 5
10 5 CN10R-5 10 60 Microdot Right Angle 5
CN2R-24

DGS diagrams are currently not available for Contact Transducers.

3

4

5

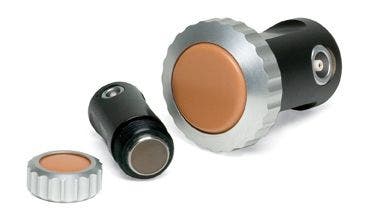

Verschleißfeste Kontaktfläche

PF2R-10 (left image), PF4R-24 (right image)

Freq. MHz
Nominal Element Size mm
Transducer Part #
Near Field mm
Typical Bandwidth (%)
Connector
Connector
Location
Outline #
1
24
PF1R-24
23
45
LEMO 1
Right Angle
12
24
PF1S-24
23
45
LEMO 1
Straight
11
2
10
PF2R-10
7.2
45
LEMO 00
Right Angle
13
24
PF2R-24
45
45
LEMO 1
Right Angle
12
24
PF2S-24
45
45
LEMO 1
Straight
11
4
10
PF4R-10
15.6
35
LEMO 00
Right Angle
13
24
PF4R-24
91
30
LEMO 1
Right Angle
12
24
PF4S-24
91
30
LEMO 1
Straight
11

DGS diagrams are included with all Protected Face Transducers.

11

12

Atlast Transducer 32 mm

13

Protective Membrane Accessories

PM-24-12 (left image), MRN-24 (right image)

Description
Fits With Nominal Element Size
Part Number
-
mm
-
Set of 12 Membranes
10
PM-10-12
Set of 12 Membranes
24
PM-24-12
Retaining Ring
10
MRN-10
Retaining Ring
24
MRN-24

Sender-Empfänger-Schallköpfe

Freq
MHz
Nominal Element Size
mm
Transducer Part # Focus
in Steel
mm
Typical Bandwidth
(%)
Connector Connector
Location
Outline #
2 7 x 18 DL2R-7X18 15 50 LEMO 00 (2) Right Angle 2
7 x 18 DL2R-7X18-0 30 50 LEMO 00 (2) Right Angle 2
11 DL2R-11 8 48 LEMO 00 (2) Right Angle 1
4 3.5 x 10 DL4R-3.5X10 10 45 LEMO 00 (2) Right Angle 1
6 x 20 DL4R-6X20 12 48 LEMO 00 (2) Right Angle 2
6 x 20 DL4R-6X20-0 25 48 LEMO 00 (2) Right Angle 2
DL2R-7X18 (left image), DL4R-3.5X10 (right image)

DGS diagrams are included with all Dual Element Transducers.

1

2

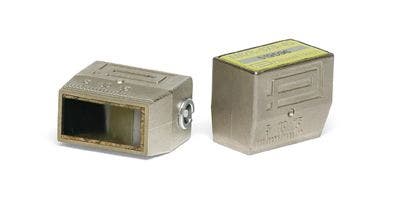

Schallkopf mit integriertem Winkel

Freq.
MHz
Nominal Element Size mm
Angle
(°)
Near Field in steel mm
Transducer Part #
Typical Bandwidth
Connector (%)
Connector
Location
Outline #
1
20 x 22
45
45
AM1R-20X22-45
55
LEMO® 01
Right Angle
9
20 x 22
60
45
AM1R-20X22-60
55
LEMO 01
Right Angle
9
20 x 22
70
45
AM1R-20X22-70
55
LEMO 01
Right Angle
9
2
8 x 9
45
15
AM2R-8X9-45
40
LEMO 00
Right Angle
6
8 x 9
45
15
AM2S-8X9-45
40
LEMO 00
Straight
7
8 x 9
60
15
AM2R-8X9-60
40
LEMO 00
Right Angle
6
8 x 9
60
15
AM2S-8X9-60
40
LEMO 00
Straight
7
8 x 9
70
15
AM2R-8X9-70
40
LEMO 00
Right Angle
6
8 x 9
70
15
AM2S-8X9-70
40
LEMO 00
Straight
7
14 x 14
45
39
AM2R-14X14-45
45
LEMO 00
Right Angle
8
14 x 14
60
39
AM2R-14X14-60
45
LEMO 00
Right Angle
8
14 x 14
70
39
AM2R-14X14-70
45
LEMO 00
Right Angle
8
20 x 22
38
90
AM2R-20X22-38
40
LEMO 01
Right Angle
9
20 x 22
45
90
AM2R-20X22-45
40
LEMO 01
Right Angle
9
20 x 22
60
90
AM2R-20X22-60
40
LEMO 01
Right Angle
9
20 x 22
70
90
AM2R-20X22-70
40
LEMO 01
Right Angle
9
4
8 x 9
38
30
AM4R-8X9-38
40
LEMO 00
Right Angle
6
8 x 9
45
30
AM4R-8X9-45
40
LEMO 00
Right Angle
6
8 x 9
45
30
AM4S-8X9-45
40
LEMO 00
Straight
7
8 x 9
60
30
AM4R-8X9-60
40
LEMO 00
Right Angle
6
8 x 9
60
30
AM4S-8X9-60
40
LEMO 00
Straight
7
8 x 9
70
30
AM4R-8X9-70
40
LEMO 00
Right Angle
6
8 x 9
70
30
AM4S-8X9-70
40
LEMO 00
Straight
7
20 x 22
45
180
AM4R-20X22-45
40
LEMO 01
Right Angle
9
20 x 22
60
180
AM4R-20X22-60
40
LEMO 01
Right Angle
9
20 x 22
70
180
AM4R-20X22-70
40
LEMO 01
Right Angle
9
5
14 x 14
45
88
AM5R-14X14-45
40
LEMO 00
Right Angle
7
14 x 14
60
88
AM5R-14X14-60
40
LEMO 00
Right Angle
7
14 x 14
70
88
AM5R-14X14-70
40
LEMO 00
Right Angle
7
6
3 x 4
45
N/A
AM6S-3X4-45
38
Microdot®
Straight
10
3 x 4
60
N/A
AM6S-3X4-60
38
Microdot
Straight
10
3 x 4
70
N/A
AM6S-3X4-70
38
Microdot
Straight
10

DGS diagrams are included with all Integral Angle Beam Transducers except AM6S-3x4-45, AM6S-3x4-60 and AM6S-3x4-45.

6

7

8

9

10

AVG / DGS-Diagramme
