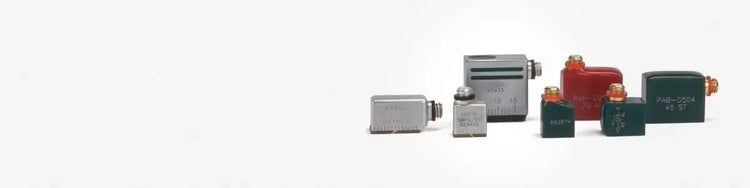

Integrale Winkelschallköpfe haben ein ausgezeichnetes Signal-Rauschverhältnis und enthalten dauerhafte Kunststoffverschleißflächen. Für einige Modelle gibt es sowohl einen rechtwinkligen als auch einen geraden Microdot-Anschlüsse.

Überblick

Integral Angle Beam Transducers

  • Durable plastic wear surface extends transducer life and avoids scratching of critical components
  • Small approach distance and overall transducer height provides an excellent choice for limited access applications
  • Superior signal-to-noise characteristics for such small integral transducers
  • Finger ring included with Micro-Miniature-RM case style transducers

A592S-SM

0.25", SM STYLE for Aluminum

A5952S-RM.tif A592S-RM

0.25", RM STYLE for Aluminum

Integrale Winkelschallköpfe


0.187", RM STYLE

A5023

0.187", SM STYLE

A5014

0.25", RM STYLE for Steel

Für weitere Informationen kontaktieren Sie uns.

Frequency
(MHz)		 Nominal Element Size ACCUSCAN-S
in. mm Part /
Item No.
2.25 0.25 x 0.25 6 x 6

A561S-RM

U8431041

A562S-RM

U8431042

A563S-RM

U8431043

A564S-RM

U8431044
5 0.25 x 0.25 6 x 6

A591S-SM

U8431052

A593S-SM

U8431056

A592S-SM

U8431054

A571S-RM

U8431045

A572S-RM

U8431046

A573S-RM

U8431047

A574S-RM

U8431048

A591S-RM

U8431051

A592S-RM

U8431053

A593S-RM

U8431055
5 0.187 x 0.187 5 x 5

A5020

U8438003

A5021

U8438004

A5015

U8438002

A5023

U8438005

A5067

U8438014

A5068

U8438015

A5069

U8438016

A5013

U8860363

A5014

U8438001
10 0.187 x 0.187 5 x 5

A5054

\

U8438012

Harisonic-Winkelschallköpfe

Harisonic Style

Miniature potted angle beam transducers provide an excellent balance between size and performance by utilizing integral angle beam shear wave wedges. Overall size and footprint are reduced compared to a screw-in style transducer and wedge with little or no sacrifice in performance. Epoxy housings prevent test surface scratching caused by the transducer.
Connectors are available in either top (straight) or side (right angle) mount depending on application requirements. Four standard shear wave angles of 45°, 60°, 70°, and 90° or custom angles are available upon request.

The sub-miniature (HS-225) and ultra-miniature (HS-877) angle beam transducers are supplied in frequencies from 2.25 to 10.0 MHz with angles from 45° through 90°. Epoxy housings prevent the transducer from causing scratches to the test surface. These transducers are ideal for inspection of small diameter welded tubes and applications where the requirement is for a shear-wave transducer with a very small footprint. Depending on the type selected, either top or side mounted, Microdot connectors are available. When ordering, please specify part number, frequency, angle, material to be inspected, and connector location.

Transducer Housing Dimensions

Sub-Miniature:
0.375 in. L x 0.425 in. H x .0325 in. W
Ultra-Miniature:
0.375 in. L x 0.375 in. H x 0.250 in. W
Item Number Part Code Frequency
(MHz)

Nominal Element Size

Angle (°)

 Angle (°) Connector Type
mm Inches

U8503183

 PAB-0204-60-AL-RM 2.25 6 x 6 0.250 x 0.250 60° Shear Wave in Steel Right Microdot

U8503124

 HS-225-5-45-AL-RM 5 3 x 6 0.120 x 0.250 45° Shear Wave in Aluminum Right Microdot

U8503092

 PAB-0504-70-ST-RM 5 6 x 6 0.250 x 0.250 70° Shear Wave in Steel Right Microdot

U8503091

 PAB-0504-70-AL-RM 5 6 x 6 0.250 x 0.250 70° Shear Wave in Aluminum Right Microdot

U8503110

 PAB-0504-60-AL-SM 5 6 x 6 0.250 x 0.250 60° Shear Wave in Aluminum Straight Microdot

U8430039

 PAB-0504-45-ST-RM 5 6 x 6 0.250 x 0.250 45° Shear Wave in Steel Right Microdot

U8503107

 PAB-0504-45-AL-RM 5 6 x 6 0.250 x 0.250 45° Shear Wave in Aluminum Right Microdot

U8435040

 HS-225-5-70-ST-RM 5 3 x 6 0.120 x 0.250 70° Shear Wave in Steel Right Microdot

U8503056

 HS-225-5-70-AL-SM 5 3 x 6 0.120 x 0.250 70° Shear Wave in Aluminum Straight Microdot

U8503090

 PAB-0504-60-ST-SM 5 6 x 6 0.250 x 0.250 60° Shear Wave in Steel Straight Microdot

U8503163

 PAB-0504-60-ST-RM 5 6 x 6 0.250 x 0.250 60° Shear Wave in Steel Right Microdot

U8503106

 PAB-0504-45-AL-SM 5 6 x 6 0.250 x 0.250 45° Shear Wave in Aluminum Straight Microdot

U8503123

 HS-225-5-70-AL-RM 5 3 x 6 0.120 x 0.250 70° Shear Wave in Aluminum Right Microdot

U8435041

 HS-225-5-60-ST-RM 5 3 x 6 0.120 x 0.250 60° Shear Wave in Steel Right Microdot

U8503086

 PAB-0503-70-AL-SM 5 5 x 5 0.187 x 0.187 70° Shear Wave in Aluminum Straight Microdot

U8503093

 PAB-0504-70-ST-SM 5 6 x 6 0.250 x 0.250 70° Shear Wave in Steel Straight Microdot

U8503054

 HS-225-5-60-AL-SM 5 3 x 6 0.120 x 0.250 60° Shear Wave in Aluminum Straight Microdot

U8503089

 PAB-0504-45-ST-SM 5 6 x 6 0.250 x 0.250 45° Shear Wave in Steel Straight Microdot

U8503082

 PAB-0503-60-AL-SM 5 5 x 5 0.187 x 0.187 60° Shear Wave in Aluminum Straight Microdot

U8503127

 HS-877-5-45-ST-RM 5 5 x 5 0.187 x 0.187 45° Shear Wave in Steel Right Microdot

U8503134

 HS-225-5-45-AL-SM 5 3 x 6 0.120 x 0.250 45° Shear in Aluminum Straight Microdot

U8503053

 HS-225-5-60-AL-RM 5 3 x 4 0.120 x 0.250 60° Shear Wave in Aluminum Right Microdot

U8503077

 PAB-0503-45-AL-RM 5 5 x 5 0.187 x 0.187 45° Shear Wave in Aluminum Right Microdot

U8503109

 PAB-0504-60-AL-RM 5 6 x 6 0.250 x 0.250 60° Shear Wave in Aluminum Straight Microdot

U8503177

 PAB-1004-45-ST-RM 10 6 x 6 0.250 x 0.250 45° Shear Wave in Steel Right Microdot

U8503176

 PAB-1004-45-AL-SM 10 6 x 6 0.250 x 0.250 45° Shear Wave in Aluminum Straight Microdot

U8503096

 PAB-1004-45-AL-RM 10 6 x 6 0.250 x 0.250 45° Shear Wall in Aluminum Right Microdot

U8502019

 PAB-1003-60-AL-SM 10 5 x 5 0.187 x 0.187 60° Shear Wave in Aluminum Straight Microdot

U8503058

 HS-877-10-45-AL-SM 10 3 x 4 0.187 x 0.187 45° Shear Wave in Aluminum Straight Microdot

U8503126

 HS-877-10-60-AL-SM 10 5 x 5 0.187 x 0.187 60° Shear Wave in Aluminum Straight Microdot

U8503164

 HS-877-10-70-AL-SM 10 5 x 5 0.187 x 0.187 70° Shear Wave in Aluminum Straight Microdot
