ChainSCANNER Lösung für die Rohrprüfung
Der ChainSCANNER ist eine manuelle Lösung zur Prüfung von Rohren mit einem AD zwischen 1,75 Zoll und 38 Zoll. Die Scanner werden durch Verbindungsglieder, anstelle von magnetischen Rädern, zusammengehalten und eignen sich besonders zur Prüfung von Schweißnähten oder Korrosion an verschiedenen Materialien. UT, TOFD, PA.
Überblick

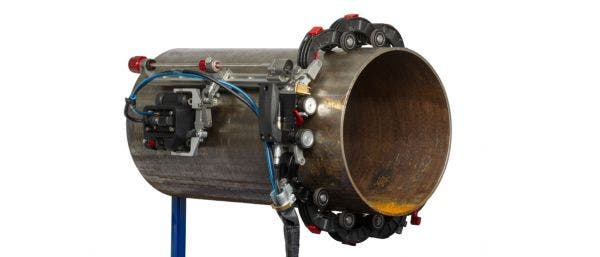

The ChainSCANNER™ solution facilitates manual inspection of pipes with outside diameters (OD) ranging from 76 mm to 965 mm (3 to 38 in.) Held by chain links instead of magnetic wheels, the scanner is well suited for weld or corrosion inspection on various material types using ultrasonic testing (UT), time-of-flight diffraction (TOFD), and phased array (PA) technologies.
The scanner offers the possibility for two-axis encoding and can inspect ferromagnetic or nonferromagnetic surfaces. The chain links help ensure a straight displacement of the scanner by eliminating steering problems. It is useful when the area around the pipe is difficult to access, as the scanner can be rotated around the pipe using the chain links.
Applications include:
- Circumferential pipe weld inspections with phased array, TOFD, or conventional UT
- Corrosion mapping of small areas with phased array or conventional UT
Key Features
- Standard configuration using one or two probes and optional configuration using four probes for TOFD, phased array, or pulse-echo inspections
- Inspect pipes with outside diameters ranging from 76 mm to 965 mm (3 in. to 38 in.)
- Encoders for scan and index axes (Index encoder not available on Light model)
- Ergonomic handle providing cable management
- Easy-to-attach chain links mounted on bearing wheels coated with urethane for smooth rolling
- Easy clamping device for quick scanner positioning
- Spring-loaded probe holders help ensure good probe contact in any scanner position or orientation
- Probe holder sliding system enables easy and precise positioning of the probe holders according to the part being inspected
- Most adjustments can be made without the use of tools
- Cable-protection zipper tube system enables quick cable reconfiguration
Standard Package
- Main module with a scan-axis encoder
- Chain links for a pipe OD of 965 mm (38 in.) with a quick-release adjustable buckle
- 5-meter (16 ft) encoder cable for OmniScan™ series flaw detectors
- 450 mm (17.7 in.) probe-holder bar
- Two spring-loaded probe holders with adjustable TOFD-P/E and phased array yokes
- Probe holder sliding system with a lead screw adjustment
- 5-meter (16 ft) zipper tube system for cable management and protection
- Irrigation tubes and fittings
- Carrying case
Note: Probes and wedges are not included with the scanner.
