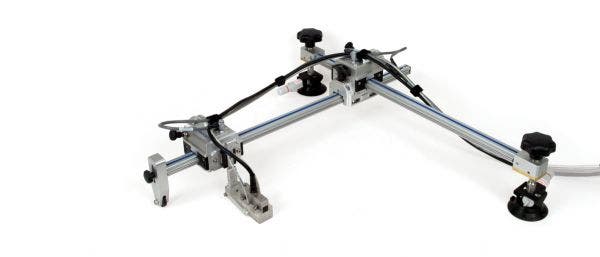

GLIDER Scanner
Der GLIDER Scanner ist ein Weggeber-Scanner auf zwei Achsen (X-Y) zur manuellen Prüfung von leicht gekrümmten oder flachen Oberflächen von Verbundwerkstoffen. Der von Saugnäpfen gehaltene Scanner eignet sich besonders für die Raster-Prüfung. Technologien: ECA, EC, UT, PA.
Überblick
Manual X-Y Scanner

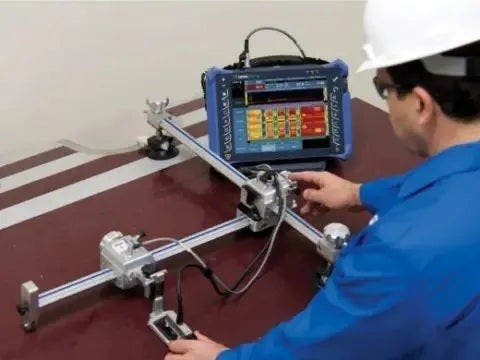

The GLIDER X-Y Scanner is a 2-axis encoding scanner for the manual inspection of slightly curved or flat composite surfaces. The scanner is well suited for raster scanning with the following technologies:
- Conventional ultrasonics (UT)
- Phased array ultrasonics (PAUT)
- Eddy current (EC)
- Eddy current array (ECA)
Commonly inspected materials include composites and aluminum, using suction-cup pods; and carbon steel, using optional magnetic pods.
Design Characteristics
The X-axis is attached to two mounting pods. Depending on the material to inspect, one of the following models can be used:
- Suction-cup mounting pod (included)
- Magnetic mounting pod (optional)
There are two encoder modules (one on each axis) to measure the probe position. The displacement of these modules can be in 3.27 mm steps, free running, or locked.
The scanner comes in three formats (18 in., 24 in., and 36 in.), depending on the scan coverage needed:
- GLIDER 18 x 18
- GLIDER 24 x 24
- GLIDER 36 x 36
Options
Magnetic mounting pods enable use on ferromagnetic surfaces (part number GLIDER-A-01)
Tracks
18 in., 24 in., or 36 in. tracks are available as options.
Manual Water Pump Kit
Water pump is compatible with scanner umbilical cables. It can also be used with provided tubing. Includes tank, tubing, and Y-splitters (part number OPIX105).
Electric Water Pump Kits
The CFU-03 and CFU-05 are portable electric pump units used to supply couplant to wedges during ultrasonic inspections.
Features
- Für Prüfungen mit Phased-Array, konventionellem Ultraschall und Wirbelstrom mit einem Prüfkopf geeignet.
- Zwei Achsen mit wasserdichten Weggebern für positionscodierte X-Y-Scans.
- Achsenpositionierung mit minimalem Nachstellen.
- Beide Module sind an Radlager für eine präzise und leichtgängige Verstellung montiert.
- Zwei drehbare gelagerte Halterungen zur Oberflächennachführung.
- Mit Verriegelungsvorrichtungen kann jede Achse verriegelt werden.
- Modulverstellung in Stufen von 3,27 mm oder im freilaufenden Modus.
- Die Sensorhalterung ist an ein System mit Radlager montiert, das ggf. federbelastet werden kann.
- Aluminiumrahmen mit leichten und rostfreien Komponenten.
- Die verschiebbare Y-Achse bietet eine größere Prüfflexibilität und eine verbesserte Portabilität
Technische Angaben
Gewicht: 5 kg bis 8 kg, je nach Konfiguration
Haltekraft der Saugringe: 18 kg pro Saugring
Magnethalterung: 81 kg pro Sockel
Weggeberauflösung: 13 Schritte/mm (± 0,15 Schritte/mm), 330 Schritte/Zoll (± 0,006 Schritte/Zoll)
Minimale Krümmung für partielle Scans: 50 cm (20 Zoll) Außendurchmesser
