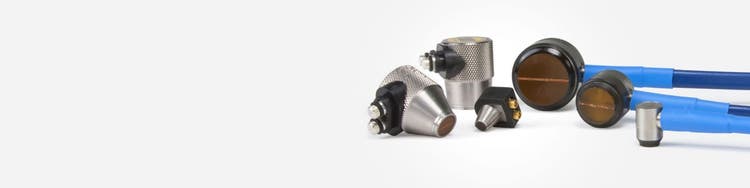

Sender-Empfänger-Messköpfe
Sender-Empfänger-Prüfköpfe
Fordern Sie ein Angebot an oder kaufen Sie einen Prüfkopf, indem Sie die Bestellnummer auswählen.
Item Number
Part Code
Frequency
(MHz)
(MHz)
Connector Type
Connector Location
Range in Steel (mm)
Range in Steel (in)
Temperature Range °F
Temperature Range °C
Tip Diameter (mm)
Tip Diameter (in)
U8450017
D797-SM
2
Microdot
Straight
3.5 - 635
0.150 - 25
-5 - 752
-20 - 400
22.9
0.9
U8450016
D797
2
Potted
Right Angle
3.5 - 635
0.150 - 25
-5 - 752
-20 - 400
22.9
0.9
U8454038
D7910
5
Potted
Right Angle
1.00 - 500.00
0.040 - 20.000
32 -122
0 - 50
12.7
0.5
U8450021
D799
5
Potted
Right Angle
1.0 - 508
0.040 - 20
-5 - 300
-20 - 150
11
0.434
U8450025
D7906-RM
5
Microdot
Right Angle
1.0 - 50
0.040 - 2.0
32 - 122
0 - 50
11
0.434
U8450005
D7906-SM
5
Microdot
Straight
1.0 - 50
0.040 - 2.0
32 - 122
0 - 50
11
0.434
U8450011
D791-RM
5
Microdot
Right Angle
1.0 - 508
0.040 - 20
-5 - 752
-20 - 400
11
0.434
U8450007
D790-RL
5
LEMO
Right Angle
1.0 - 508
0.040 - 20
-5 - 932
-20 - 500
11
0.434
U8450008
D790-SL
5
LEMO
Straight
1.0 - 508
0.040 - 20
-5 - 932
-20 - 500
11
0.434
U8450009
D790-SM
5
Microdot
Straight
1.0 - 508
0.040 - 20
-5 - 932
-20 - 500
11
0.434
U8450002
D790
5
Potted
Straight
1.0 - 508
0.040 - 20
-5 - 932
-20 - 500
11
0.434
U8450010
D791
5
Potted
Right Angle
1.0 - 508
0.040 - 20
-5 - 932
-20 - 500
11
0.434
U8620225
MTD705
5
Lepra/Con
Right Angle
1.0 - 19
0.040 - 0.75
32 - 122
0 - 50
5.1
0.2
U8450014
D794
5
Potted
Straight
0.75 - 50
0.030 - 2
32 - 122
0 - 50
7.2
0.283
U8450006
D7908
7.5
Potted
Right Angle
1.0 - 37
0.040 - 1.5
32 - 122
0 - 50
7.2
0.283
U8450018
D798
7.5
Potted
Right Angle
0.71 - 100
0.028 - 4
-5 - 300
-20 - 150
7.2
0.283
U8450020
D798-SM
7.5
Microdot
Straight
0.71 - 100
0.028 - 4
-5 - 300
-20 - 150
7.2
0.283
U8450019
D798-LF
7.5
Potted
Right Angle
0.71 - 100
0.028 - 4
-5 - 300
-20 - 150
8.9
0.35
Einzelschwingerkorrosionsmessköpfe
Einzelschwingerkorrosionsmessköpfe
Für den Einsatz mit den Dickenmessern 38DL PLUS und 45MG.
* Oxide Software nur für 38DL PLUS verfügbar.
**E110-SB nicht für 45MG verfügbar.
†Adapter für E110 (Teilenummer 1/2XA/E110) erforderlich.
Messkopf
Teilenr.
Teilenr.
Bestell-
nummer
nummer
Frequenz
Ø Ankoppelfläche
Messkopfart
Anschluss
Prüfbereich in Stahl
Temperatur- bereich
MHz
Zoll
mm
Typ
Stelle
Zoll
mm
°F
°C
V260-SM
U8411019
15
0,080
2
Sonopen
Microdot
Gerade
0.02 - 0.400
0.5 - 10
-32 bis 122
0 bis 50
V260-RM
U8411018
15
0,080
2
Sonopen
Microdot
Rechtwinkelig
0.02 - 0.400
0.5 - 10
-32 bis 122
0 bis 50
V260-45
U8411017
15
0,080
2
Sonopen
Microdot
45˚-Griff
0.02 - 0.400
0.5 - 10
-32 bis 122
0 bis 50
M2017*
U8415002
20
0,250
6,35
Für innere Oxidschicht
Microdot
Rechtwinkelig
Stahl:
0.020 - 0.50
Oxid:
0.010 - 0.050
0.020 - 0.50
Oxid:
0.010 - 0.050
Stahl:
0.5 - 12
Oxid:
0.25 - 1.25
0.5 - 12
Oxid:
0.25 - 1.25
-32 bis 122
0 bis 50
M2091*
U8415018
20
0,250
6,35
Austauschbarer Vorlauf für Transversalwelle
Microdot
Rechtwinkelig
Stahl:
0.020 - 0.50
Oxid:
0.006 - 0.050
0.020 - 0.50
Oxid:
0.006 - 0.050
Stahl:
0.5 - 12
Oxid:
0.150 - 1.25
0.5 - 12
Oxid:
0.150 - 1.25
-32 bis 122
0 bis 50
E110-SB†**
U8471001
-
1,25
28,5
EMAT
BNC
Gerade
0.080 - 5
2.0 - 125
32 bis 176
0° bis 80°
Kabel
Messgerät Dual-Kabel
Teilenummer des Kabels
Bestellnummer
Für Einsatz mit
Länge
Kabeltyp
Steckertyp
Fuß
Meter
LCMD-316-5B
U8800353
D790-SM
5,0
1,5
Standard
Gerade
RLCMD-316-5B
U8800367
D790-SM
5,0
1,5
Standard
Rechter Winkel
LCMD-178-5B SSA
U8800352
D790-SM
5,0
1,5
Panzerkabel
Gerade
RLCMD-178-5B SSA
U8800366
D790-SM
5,0
1,5
Panzerkabel
Rechter Winkel
LCLD-316-5G
U8800330
D790-RL
5,0
1,5
Standard
Gerade
LCLD-316-5H
U8800331
D790-SL
5,0
1,5
Standard
Gerade
LCMD-316-5C
U8800354
D791-RM
5,0
1,5
Standard
Gerade
LCMD-316-5D
U8800355
D797-SM
5,0
1,5
Standard
Gerade
LCMD-316-5J
U8800357
D798-SM
5,0
1,5
Standard
Gerade
LCMD-316-5L
U8800358
D7906-SM
5,0
1,5
Standard
Gerade
LCLPD-78-5
U8800332
MTD705
5,0
1,5
Standard
Gerade
LCM-74-4
U8800348
V260-SM, V260-RM, V260-45, M2017
4,0
1,2
Standard
-
LCM-188-4 SSA
U8800342
V260-SM, V260-RM, V260-45, M2017
4,0
1,2
Panzerkabel
-
LCB-74-4
U8800320
E110-SB
4,0
1,2
Standard
-
