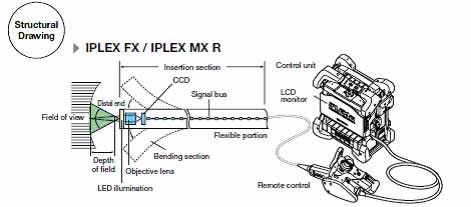

IPLEX FX/ IPLEX MX R

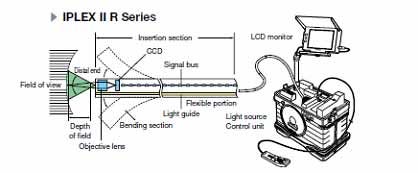

IPLEX Ⅱ R Series

Ultra-compact CCD for image transmission. High-resolution images are displayed on a TV monitor.

The videoscope capture light reflected from a subject through an objective lens and directs it to the surface on the CCD. The CCD then converts the light into electrical signals and transfers this data to the videoscope control unit. The unit then sends video output to the monitor.

Benefits

All-in-one package offering simple operation and outstanding performance.

• Bright image with high resolution LCD monitor.
• Fulfilling image recording functions*1
• Super stereo measurement modes are available to facilitate high-precision measurement.*2
• Extensive scope lineup including ultra-thin, long and working channel types.

*1 Image recording functions are not available for IPLEX Ⅱ R.
*2 Super stereo measurement are not available for IPLEX Ⅱ R and IPLEX MX R.

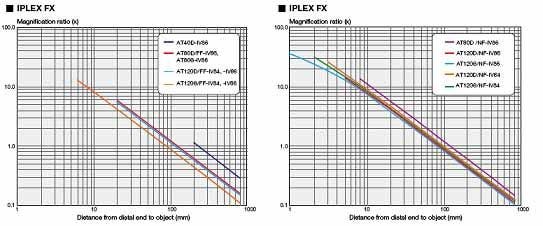

Magnification Ratio of IPLEX-series Monitors
