As the electric vehicle (EV) industry advances, the need for precision in the inspection of critical components has never been more important. One of the key tools helping to ensure the quality of EV manufacturing is the IPLEX™ TX II videoscope, designed to tackle the challenges of inspecting hard-to-reach areas. Its advanced features make it indispensable for EV applications, particularly when examining small, intricate components like inverters and cooling systems.

The IPLEX™ TX II Advantage in EV Inspections

The IPLEX™ TX II offers both flexible and rigid scope options, ensuring versatility in the inspection process. These scopes come in ultra-thin diameters, as small as 2.2 mm (flexible) and 1.8 mm (rigid), making them ideal for accessing the tight spaces common in EV components. With its 120-degree field of view, the videoscope allows for wide-area inspections, reducing the time needed to examine complex systems like inverters, water jackets, and electric motors​.

Meeting the Demands of EV Inverter Inspection

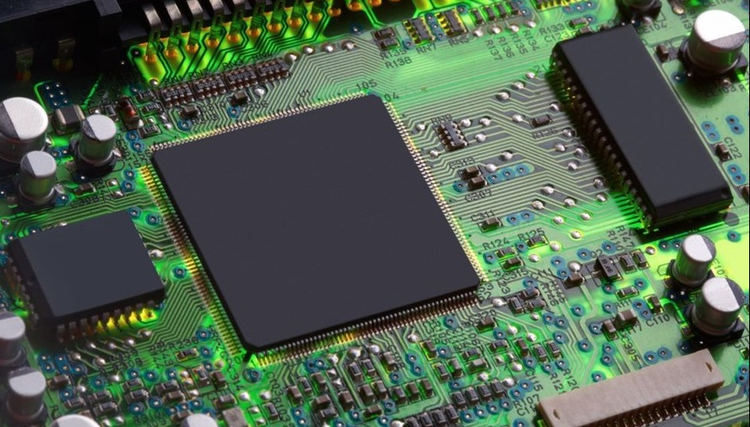

Inverters, which convert DC power to AC to control the motor in an electric vehicle, are essential for smooth operation and efficiency. The precise inspection of inverters is crucial because any defect, such as poor soldering or contamination, can impact performance, leading to malfunction or safety risks​. The IPLEX™ TX II's ultra-thin and flexible scope is perfect for inspecting small solder joints and detecting any imperfections within the confined spaces of an inverter board​.

• Insertion Capabilities: The ultra-thin scope of the IPLEX™ TX II allows easy entry through the narrow insertion points common in inverters, while its flexible articulation system enables inspection around tight bends without risking damage​
• Lighting Control: High-intensity LED illumination paired with smart lighting control adjusts brightness levels instantly, allowing for clear and consistent image capture in varying spaces, whether examining large chambers or focusing on minute solder joints​
• Wide Viewing Angle: The wide 120-degree viewing angle ensures that more of the component is visible at once, enabling quicker inspections and reducing the risk of missing potential defects​

Applications Beyond Inverters

While inverters are critical, the IPLEX™ TX II is also highly effective for inspecting other essential EV components:

• Water Jackets for Motors: The cooling systems in EV motors, such as water jackets, require inspections for burrs, foreign debris, or metal chips. The IPLEX TX II’s flexible scope can navigate these tight areas, ensuring the motor remains free from contaminants that could lead to overheating​
• On-Board Chargers: Another important application is inspecting on-board chargers, where the videoscope can be inserted into tight spaces to inspect connections between control boards and other components​

Why the IPLEX™ TX II is a Game-Changer for the EV Industry

EV manufacturing demands efficient and reliable inspection solutions, and the IPLEX™ TX II delivers with:

• Superior image quality from a high-pixel CMOS sensor, enabling quick and confident decision-making​
• Durable construction, including a tungsten-braided articulation section, offering flexibility without compromising on strength​
• User comfort, with its lightweight design reducing operator fatigue during long inspections, essential for ensuring productivity and accuracy in automotive factories​

With the increasing complexity of EV components, having a versatile, reliable, and ultra-thin inspection tool like the IPLEX™ TX II videoscope is essential to maintaining the high standards required in modern automotive manufacturing.

By adopting the IPLEX™ TX II, manufacturers can enhance efficiency, reduce inspection time, and improve the overall quality of their vehicles, ensuring a safer and more reliable future for electric mobility.

Future-Proofing EV Production

As EV designs continue to evolve towards even more compact and integrated systems, the need for precision inspection tools like the IPLEX TXII will only grow. By enabling detailed inspections in hard-to-reach areas, the IPLEX TXII ensures that EV manufacturers can maintain the highest standards of quality while keeping production efficient.

In a world where every detail matters, the IPLEX TXII is not just a tool—it’s an essential part of the EV revolution.
