Vanta Element™ Handheld XRF Analyzer Series

Affordable Alloy ID and Light Element Analysis

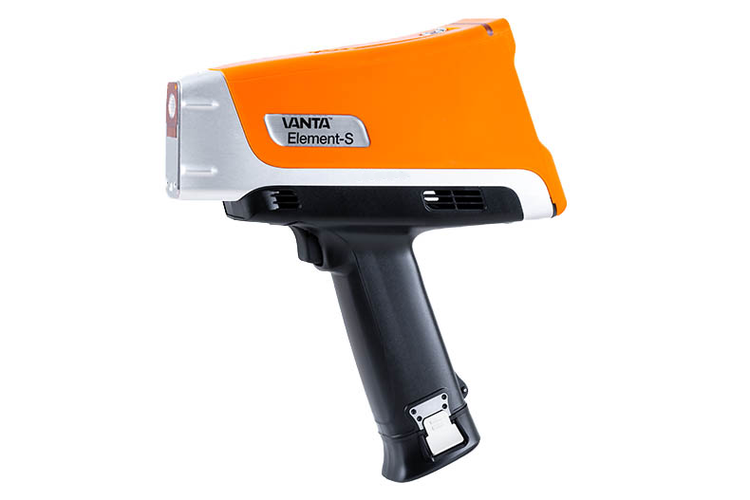

Vanta Element handheld XRF

The Vanta Element XRF analyzer series has the performance and portability you need for fast scrap sorting or metal ID. Both the Vanta Element and Vanta Element-S models offer fast grade identification with clear on-screen grade comparisons for easy operation when testing metals.

The Vanta Element series is our family of entry-level, cost-effective handheld XRF analyzers. Choose the Vanta Element analyzer for alloy ID or the Vanta Element-S analyzer for fast light element analysis at an affordable price.

Vanta Element

✓ Stainless Steel
✓ Copper Alloys
✓ Low-Alloy Steel
✓ Nickel Alloys
✓ Titanium Alloys
✓ Aluminum Alloys
✓ Precious Metals

Vanta Element-S

✓ Stainless Steel
✓ Copper Alloys
✓ Low-Alloy Steel
✓ Nickel Alloys
✓ Titanium Alloys
✓ Aluminum Alloys
✓ Precious Metals
✓Light Element Analysis
(Mg, Al, Si, S, and P)

https://adobeassets.evidentscientific.com/content/dam/video/videolibrary/videos/VANTA_ELEMENT_HIGHLITE_Video_SubtitleMASTER(2)_480.mp4

Vanta Element Model
Vanta Element-S Model
Use
Affordable alloy ID
Alloy ID and Affordable light element detection
Best for
Fast, basic analysis
Analyzing magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P)
Detector
PIN
Silicon drift detector (SDD)
Window
Thick Kapton® window
Prolene® window with Kapton mesh support
Excitation source
2-watt X-ray tube with 35 kV tungsten (W) anode
4-watt X-ray tube with 50kV silver (Ag) anode
Scrap recycling with xrf gun

Rugged

  • IP54 rated to resist dust and moisture
  • Drop tested (MIL-STD-810G) to help protect from the occasional drop or jostle
  • Thick Kapton ® window to protect the analyzer when testing sharp objects

Modern

  • Fast alloy identification for sorting powered by Olympus' proven Axon Technology™
  • Wireless connectivity to a local network or the Olympus Scientific Cloud™ (optional)
  • See results and share data on your smartphone with the Vanta Mobile App
X-ray gun app componenet
Xrf analyser in the scrapyard

Easy to Use

  • On-screen grade comparison and fast results for high throughput
  • Smartphone-like UI is easy to learn and easy to use
  • Affordable pricing
