Overview
Sliding probes are specifically designed to inspect rows of fasteners. They operate in reflection mode (driver/pickup coils) and are used to find surface and near-surface flaws.
Sliding probes are available in two different types:
- Adjustable Types: Iinclude shims that allow the probe to be adjusted to accommodate different fastener sizes and include Microdot connectors
- Fixed Types: Capable of finding the same flaws as the adjustable but are usually procedure specific due to coil size and frequency range
The fixed versions typically include the Fischer/LEMO Triax connector and their underside is relieved to enable the probe to easily slide over raised fastener heads.
Adjustable
Type
Series
Frequency range
Height
Length
Width
Connector
Part number
Item number
Sliding Probe
Adjustable
100 Hz - 5 kHz
25.4 mm (1.00 in.)
85.1 mm (3.35 in.)
19.1 mm (0.75 in.)
(2) 1-Pin Microdot
LTW0419-1
U8633025
Sliding Probe
Adjustable
500 Hz - 10 kHz
25.4 mm (1.00 in.)
44.7 mm (1.76 in.)
25.4 mm (1.00 in.)
(2) 1-Pin Microdot
LTW2018-1
U8633056
Sliding Probe
Adjustable
500 Hz - 10 kHz
25.4 mm (1.00 in.)
44.5 mm (1.75 in.)
25.4 mm (1.00 in.)
(2) 1-Pin Microdot
LTW0423-1
U8690009
Sliding Probe
Adjustable
1 kHz - 20 kHz
25.4 mm (1.00 in.)
25.4 mm (1.00 in.)
25.4 mm (1.00 in.)
(2) 1-Pin Microdot
LTW5010-1
U8690010
Sliding Probe
Adjustable
5 kHz - 100 kHz
25.4 mm (1.00 in.)
38.1 mm (1.5 in.)
19.1 mm (0.75 in.)
(2) 1-Pin Microdot
LTW1022
U8633026
Fixed
Type
Series
Frequency range
Height
Length
Width
Connector
Part number
Item number
Sliding Probe
Fixed
1 kHz - 100 kHz
25.4 mm (1.00 in.)
38.1 mm (1.5 in.)
20.3 mm (0.80 in.)
Triax Fischer/LEMO

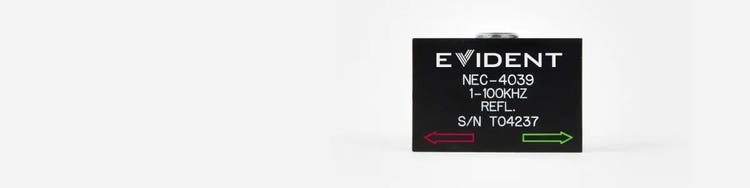

NEC-4039
U8636053
Sliding Probe
Fixed
1 kHz - 100 kHz
25.4 mm (1.00 in.)
38.1 mm (1.5 in.)
20.3 mm (0.80 in.)
2-Pin Microdot
NEC-4039-1
U8636054
Sliding Probe
Fixed
1 kHz - 100 kHz
25.4 mm (1.00 in.)
38.1 mm (1.5 in.)
20.3 mm (0.80 in.)
4-Pin Fischer
NEC-4039-2
U8636055
Sliding Probe
Fixed
1 kHz - 100 kHz
25.4 mm (1.00 in.)
38.1 mm (1.5 in.)
20.3 mm (0.80 in.)
(2) 1-Pin Microdot
NEC-4039-3
U8629545
Sliding Probe
Fixed
1 kHz - 100 kHz
38.1 mm (1.5 in.)
58.4 mm (2.3 in.)
30.4 mm (1.2 in.)
7-Pin LEMO
NEC-4039-7L
U8633027
