Overview

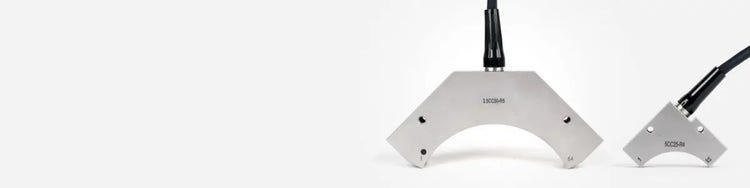

Curved array probes are made with a corrosion-resistant stainless steel case and are guaranteed waterproof up to 1 m underwater. The acoustic impedance of these probes matches water. They are compatible with adjustable immersion wedges and are used for the inspection of carbon fiber reinforced polymers (CFRP) corners and in addition to the inspection of composite for delamination.
Advantages
- Acoustic impedance matches water.
- High circumferential resolution around the radius
- Corrosion-resistant stainless steel case
- Waterproof guaranteed up to 1 m (3.28 ft) underwater
- Compatible with adjustable immersion wedges
Typical Applications
- Inspection of carbon fiber reinforced polymers (CFRP) corners
- Composite inspection for delamination
Probe Specifications and Dimensions
Part Number
Item Number
Casing Type
Frequency (MHz)
Number of Element
Pitch (mm)
Elevation (mm)
Radius (mm) (R)
Angle (°) (A)
Inspection Type
3.5CC10.2-16-R1
U8330453
R1
3.5
16
1.0
5.0
10.2
90
ID
5CC10.2-16-R1
U8330709
R1
5.0
16
1.0
5.0
10.2
90
ID
3.5CC25-32-R4
U8330629
R4
3.5
32
1.32
6.0
25.0
90
ID, OD
5CC25-32-R4
U8330479
R4
5.0
32
1.32
6.0
25.0
90
ID, OD
3.5CC50-64-R5
U8330630
R5
3.5
64
1.65
6.0
50.0
121
OD
5CC50-64-R5
U8330636
R5
5.0
64
1.65
6.0
50.0
121
OD
These probes come standard with an OmniScan® connector and a 2.5 m (8.2 ft) cable or can be specially fitted with other connectors and cable lengths.
