Thickness and Flaw Inspection Solutions
Dual Array Probes for Welds
Overview
Advantages of Dual Linear Array™ and Dual Matrix Array™ Probes
- Ability to transmit and receive longitudinal waves in granular materials
- Increased penetration in stainless steel, including austenitic, corrosion-resistant alloys, and dissimilar welds
- Excellent signal-to-noise ratio
- Higher frequencies and smaller elements provide benefits for applications requiring detection of very small indications

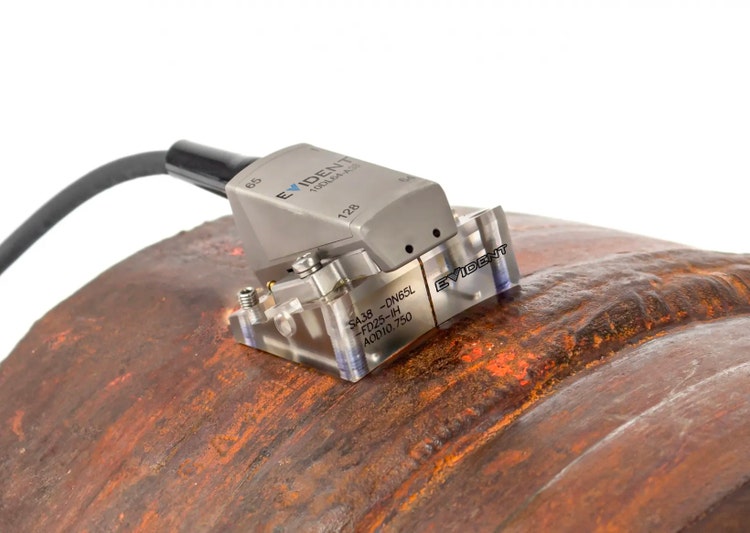

A28 and A38 Dual Linear Array (DLA) Probes
- High-frequency probes (up to 10 MHz) for applications with high-sensitivity requirements (such as HTHA, creep damage, SOHIC)
- Dual 32 (A28) or 64 (A38) small-element arrays offer wide coverage with a short footprint
- Series of wedges to fit pipe diameters of 4.5 in. [114.3 mm] OD and larger
- Series of wedges with roof angles offering passive focusing for depths from 4 mm to 95 mm (0.16 in. to 3.74 in.)
- Compatible with the universal holder and the ChainSCANNER™, VersaMOUSE, HSMT-Compact, HSMT-Flex, AxSEAM™, WeldROVER™, MapROVER, and SteerROVER scanners
A26 and A36 Dual Linear Array (DLA) Probes
- Stainless steel weld applications (austenitic, dissimilar welds, cladding, etc.)
- Thick pipes (40 mm–80 mm [1.6 in.-3.1 in.]) with the A26 dual 32-element linear probe

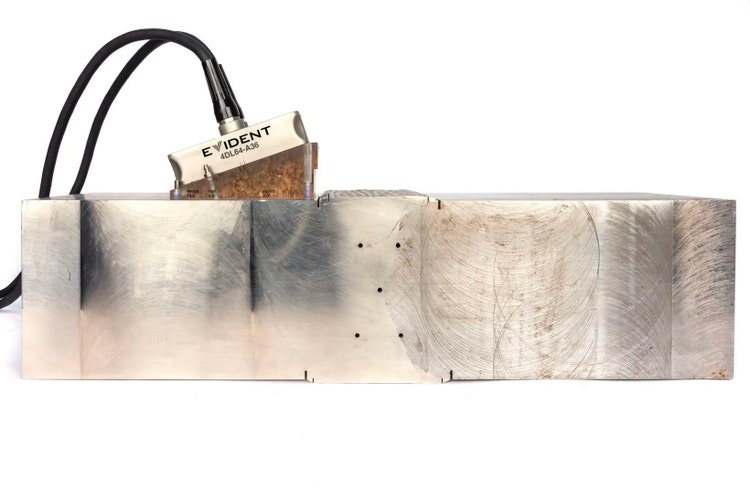

- Extra-thick pipes (80 mm [3.1 in.] and up) with the A36 dual 64-element linear probe
- Series of wedges to fit pipe diameters of 8.625 in. [219 mm] OD and larger
- Compatible with the universal holder and ChainSCANNER and VersaMOUSE scanners

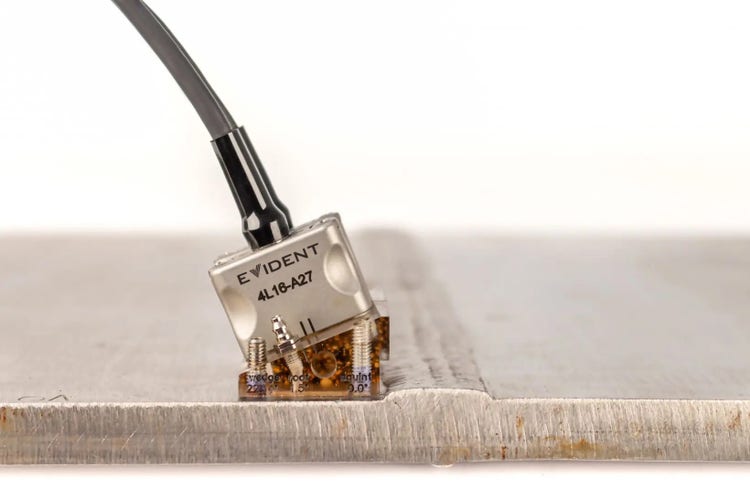

A27 32-Element (16×2) Dual Matrix Array Probe
- Stainless steel weld applications (austenitic, dissimilar welds, cladding, etc.)
- Mid-range pipe thicknesses
- Series of wedges to fit pipe diameters of 4.5 in. [114.3 mm] OD and larger
- Compatible with the universal holder and ChainSCANNER and VersaMOUSE scanners

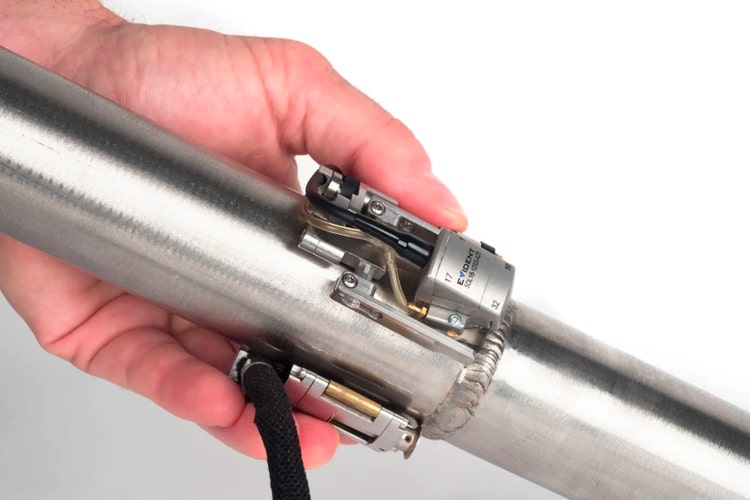

A25 16-Element Dual Linear Array Probe
- Stainless steel weld applications (austenitic, dissimilar welds, cladding, etc.)
- Thin-walled pipes (passive focal depth of approx. 6 mm [0.23 in.])
- Series of wedges to fit pipe diameters from 1 in. to 4.5 in. [25.4 mm to 114.3 mm] OD
- Compatible with the COBRA™ scanner
Specifications
Phased Array Probe Specifications and Dimensions
| Part Number | Item Number | Frequency (MHz) |
Configuration | Total Number of Elements | Pitch (mm) |
Element Size in Elevation (mm) | Active Aperture (mm) | External Dimensions mm (in.) |
||
| L | W | H | ||||||||
| 2.25DM7X4-A17 | U8331715 | 2.25 | Dual Matrix (7 × 4 elements ea.) | 56 | 2.71 | 3 | 19 × 12 | 34 (1.34) | 16 (0.63) | 25 (0.98) |
| 5DL16-12X5-A25 | Q3301132 | 5 | Dual Linear (16 elements ea.) | 32 | 0.75 | 5 | 12 × 5 | 24 (0.94) | 24 (0.94) | 18 (0.71) |
| 2.25DL32-32X12-A26 | Q3301043 | 2.25 | Dual Linear (32 elements ea.) | 64 | 1 | 12 | 32 × 12 | 48.2 (1.9) | 16.5 (0.65) | 26.4 (1.04) |
| 4DL32-32X12-A26 | Q3301480 | 4 | Dual Linear (32 elements ea.) | 64 | 1 | 12 | 32 × 12 | 48.2 (1.9) | 16.5 (0.65) | 26.4 (1.04) |
| 4DM16X2-A27 | Q3300060 | 4 | Dual Matrix (16 × 2 elements ea.) | 64 | 1 | 3 | 16 × 6 | 29 (1.14) | 10 (0.39) | 20 (0.79) |
| 10DL32-9.6X5-A28 | Q3301742 | 10 | Dual Linear (32 elements ea.) | 64 | 0.3 | 5 | 9.6 × 5 | 36.8 (1.45) | 34 (1.34) | 24.4 (0.96) |
| 2.25DL64-64X12-A36 | Q3302293 | 2.25 | Dual Linear (64 elements ea.) | 128 | 1 | 12 | 64 × 12 | 80.21 (3.16) | 16.51 (0.65) | 26.34 (1.04) |
| 4DL64-64X12-A36 | Q3302295 | 4 | Dual Linear (64 elements ea.) | 128 | 1 | 12 | 64 × 12 | 80.21 (3.16) | 16.51 (0.65) | 26.34 (1.04) |
| 10DL64-19.2X5-A38 | Q3302412 | 10 | Dual Linear (64 elements ea.) | 128 | 0.3 | 5 | 19.2 × 5 | 50.15 (1.97) | 34.01 (1.34) | 28.19 (1.11) |
