Overview

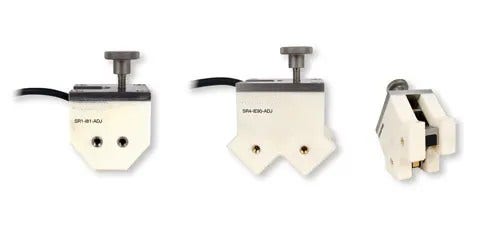

Immersion corner wedges for curved array probes are available in specific radius and angle and also with adjustable radius to fit on various components to be inspected. These wedges are designed to perform manual scans and to accommodate the Mini-Wheel encoder.
Advantages
- Available in specific radius and angle and also with adjustable radius to fit on various components to be inspected
- Wedges are designed to perform manual scans.
- Designed to be used with the Mini-Wheel encoder
Specifications
Part Number
Item Number
Probe Type
Angle of the Inspected Part (ยบ)
Radius Range
mm (in.)
mm (in.)
Inspection Type
SR1-I81-ADJ
U8720659
R1
81
4 to 14(0.16 to 0.55)
ID
SR1-I90-ADJ
U8720638
R1
90
3 to 14 (0.12 to 0.55)
ID
SR1-I98-ADJ
U8720660
R1
98
3 to 13 (0.12 to 0.51)
ID
SR4-IE90-ADJ
U8720608
R4
90
3 to 20 (0.12 to 0.79)
OD/ID
