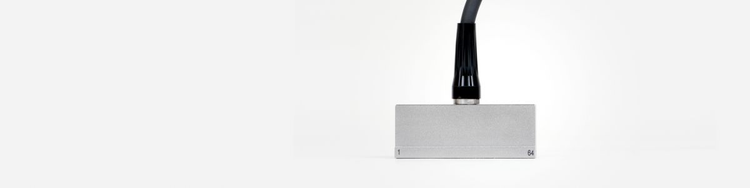

Near-Wall Probes
Near-wall probes offer a shortened dead zone at both ends of the probe (1.5 mm between center of first or last element and housing edge). They are well suited for composite channel inspections and are used for C-scan inspections of composites (delamination, disbonding, and porosity).
Advantages
- Shortened dead zone at both ends (1.5 mm between center of first or last element and housing edge)
- Well suited for composite channel inspections
- Used for C-scan inspections of composites (delamination, disbonding, and porosity)
Probe Specifications and Dimensions
Part Number
Item Number
Frequency
(MHz)
(MHz)
Number of Elements
Pitch
(mm)
(mm)
Active Aperture
(mm)
(mm)
Elevation
(mm)
(mm)
External Dimensions mm (in.)
L
W
H
3.5L64-NW1
U8330148
3.5
64
1.0
64.0
7.0
66 (2.60)
19 (0.75)
25 (0.98)
5L64-NW1
U8330134
5.0
64
1.0
64.0
7.0
66 (2.60)
19 (0.75)
25 (0.98)
3.5L24-NW2
U8330965
3.5
24
1.0
24.0
7.0
26 (1.02)
19 (0.75)
30 (1.18)
5L24-NW2
U8330155
5.0
24
1.0
24.0
7.0
26 (1.02)
19 (0.75)
30 (1.18)
3.5L128-NW3
U8330695
3.5
128
1.0
128.0
7.0
130 (5.12)
21 (0.83)
35 (1.38)
5L128-NW3
U8330647
5.0
128
1.0
128.0
7.0
130 (5.12)
21 (0.83)
35 (1.38)
Colspan=10
These probes come standard with an OmniScan® connector and a 2.5 m (8.2 ft) cable or can be specially fitted with other connectors and cable lengths.
