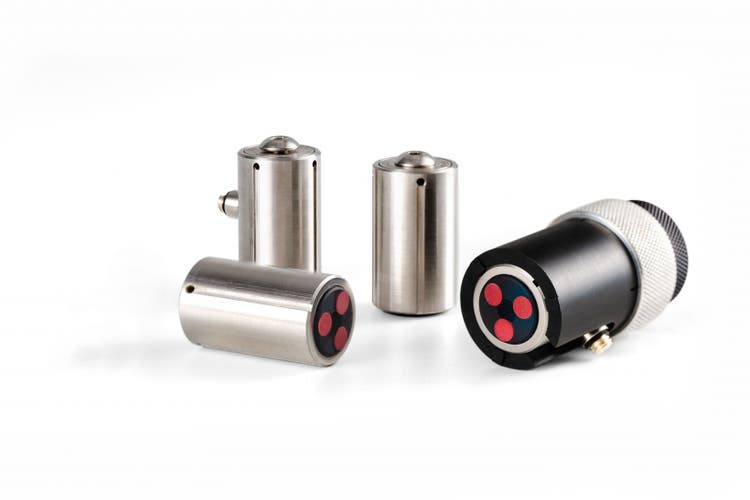

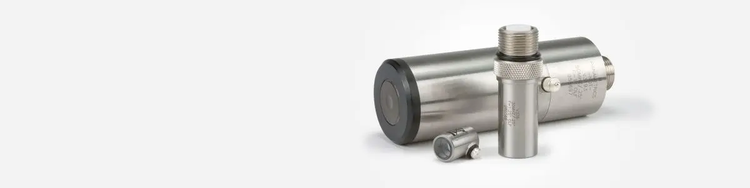

High-frequency transducers are single element contact or immersion transducers designed to produce frequencies of 20 MHz and greater.
Contact transducers are available in frequencies up to 225 MHz. Performance is dependent on pulser/receiver and application. All transducers are manufactured on a special basis to customer specifications. Contact us to discuss applications.
Overview
Advantages:

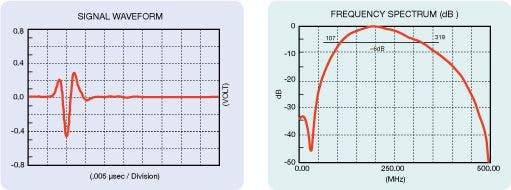

- Heavily damped broadband design provides excellent time resolution
- Short wavelengths for superior flaw resolution capabilities
- Focusing allows for very small beam diameters
- Frequencies range from 20 MHz to 225 Mhz
High-Frequency Contact
High-Frequency Contact
- Permanent fused silica delay line allows for flaw evaluation, material analysis or thickness measurements using a direct contact testing method
- Three different delay line configurations (BA, BB, BC) allow for various combinations of delay line echoes
- Standard connector style is Right Angle Microdot
- ®
- (RM)

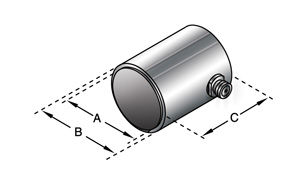

Transducer Dimensions (in inches)
Click image to enlarge diagram.
| Delay Style | (A) | (B) | (C) |
| BA | 0.72 | 0.81 | 1.00 |
| BB | 0.34 | 0.44 | 0.81 |
| BC | 0.34 | 0.44 | 0.63 |
Transducer Configurator
(MHz)
Item No.
V212-BA-RM
U8411009
V212-BC-RM
U8411011
V212-BB-RM
U8411010
V213-BB-RM
U8411021
V213-BA-RM
U8411020
V213-BC-RM
U8411022
V215-BA-RM
U8411026
V215-BB-RM
U8411027
V215-BC-RM
U8411028
V214-BC-RM
U8411025
V214-BA-RM
U8411023
V214-BB-RM
U8411024
V2025
\
U8415045
V2022
\
U8415044
V2012
U8415043
V2054
U8415046
V2062
\
U8415047

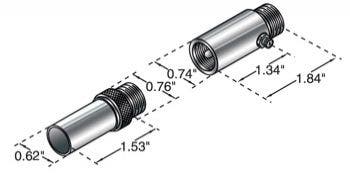

Standard Immersion Case
High-Frequency Standard Immersion Case
- Permanent fused silica delay line
- Focused units use an optical quality ground lens
- F202 adaptor allows fixturing with a passive UHF connector and an active Microdot ® style connector (see page 38)
- Combines high frequency with a small case design
Transducer Configurator
Request a quote or purchase a transducer by selecting the item number.
(MHz)
Item No.
V354-SU
U8423057
V372-SU
U8423058
V373-SU
U8423059
V374-SU
U8423060
V376-SU
U8423081
V375-SU
U8423080
V377-SU
U8423082
V356-SU
U8423078
V358-SU
\
U8423079

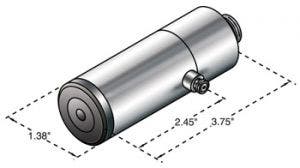

SU/RM Immersion Case
High-Frequency SU/RM Immersion Case
- Permanent fused silica delay with an optical quality ground lens provides a high degree of precision in beam alignment and focusing
- Stainless steel case has a passive Straight UHF (SU) connector and an active Right Angle Microdot (RM) connector
- Large cases allow for larger delay lines and decrease in delay reverberations and noise
*Transducers create surface waves in steel, titanium and other materials with similar velocities. Please contact us for higher frequency. Lightweight High Frequency transducers are an alternative to the SU/RM case style transducers. They offer a smaller case width and lighter weight without sacrificing performance.
Transducer Configurator
Request a quote or purchase a transducer by selecting the item number.
(MHz)
Item No.
V3332
\
U8424006
V3192
U8424001
V3193
U8424002
V3409
U8424012
V390-SU/RM
U8423084
V3330
U8424005
V3337
U8424007
V3320
U8424004
V3349
U8424009
V3346
\
U8424008
High-Frequency Standoff Transducers
High-Frequency Standoff Transducers
- Permanent fused silica delay line allows for material analysis or thickness measurements
- Fixed standoff discs provide controlled capillary coupling
- Standard connector style is Right Angle Microdot® (RM)

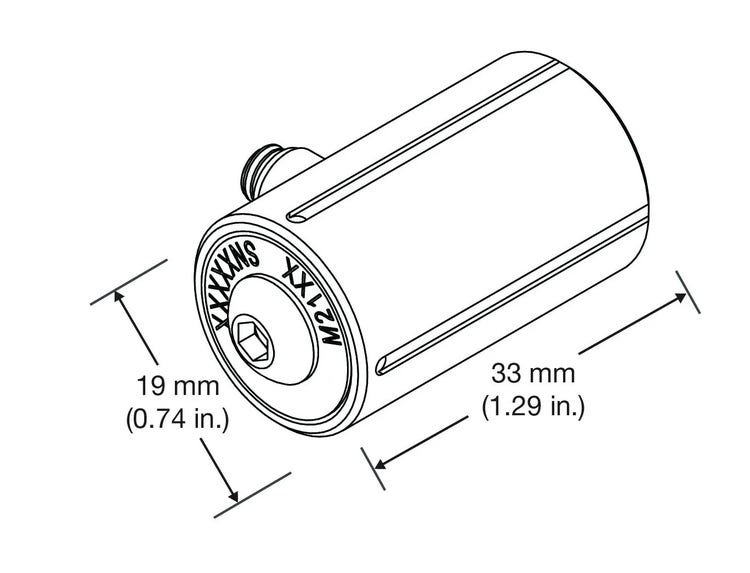

Transducer Dimensions
Transducer and Accessory Options
M2104: Special high-frequency standoff transducer, 125 MHz, tip diameter of 0.74 in (18.8 mm). Includes test form certificate.
M2102: Special high-frequency standoff transducer, 75 MHz, tip diameter of 0.74 in (18.8 mm). Includes test form certificate.
B126: Special variable water path bubbler for the M2104 and M2102 transducers.
