PipeWIZARD iX Automated Ultrasonic System for Girth Weld Inspection

The PipeWIZARD™ iX phased array ultrasonic testing system helps pipeline companies ensure the reliable validation of girth welds during the construction process. Equally rugged and compact, the PipeWIZARD iX system is designed to facilitate both onshore and offshore pipeline inspections. A highly efficient automated ultrasonic testing (AUT) solution, this powerful multitechnology detection system reveals defects in girth welds and the heat-affected zone (HAZ) so they can be quickly analyzed and evaluated.

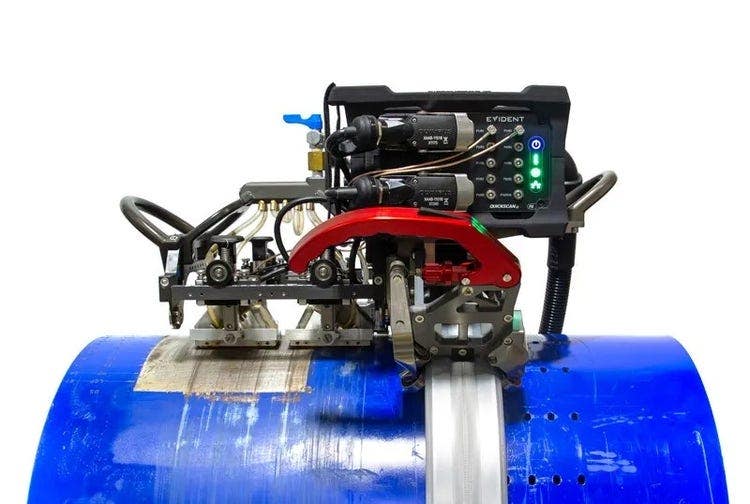

PipeWIZARD-iX Automated Inspection

PipeWIZARD™ iX Automated Ultrasonic System for Girth Weld Inspection

The PipeWIZARD™ iX phased array ultrasonic testing system helps pipeline companies ensure the reliable validation of girth welds during the construction process. Equally rugged and compact, the PipeWIZARD iX system is designed to facilitate both onshore and offshore pipeline inspections. A highly efficient automated ultrasonic testing (AUT) solution, this powerful multitechnology detection system reveals defects in girth welds and the heat-affected zone (HAZ) so they can be quickly analyzed and evaluated.

High-Performance Instrument for Standard and Advanced Inspections

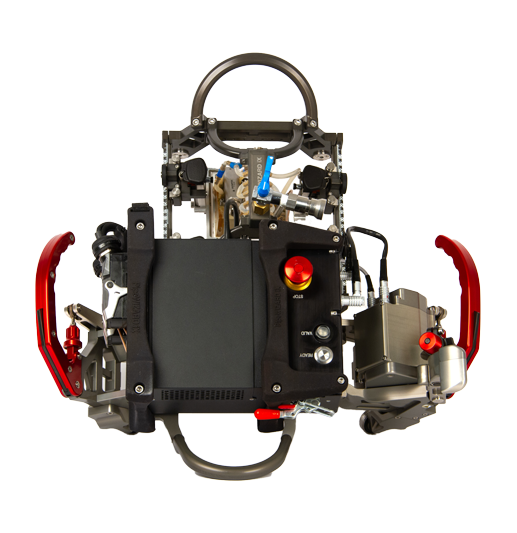

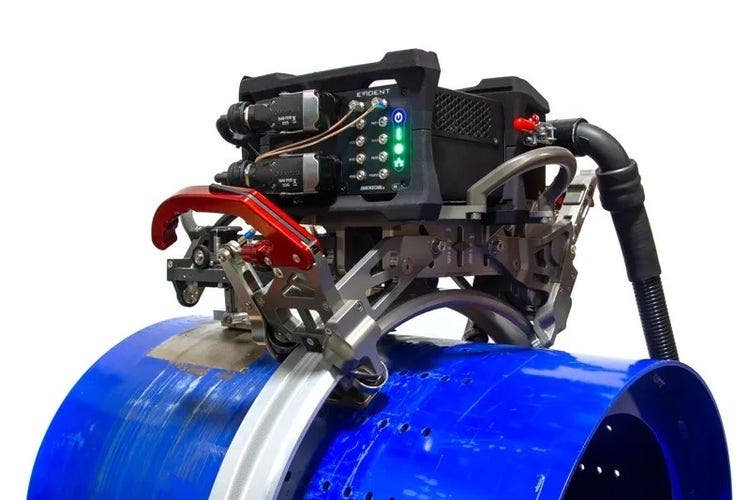

The PipeWIZARD iX system is built to resist vibrations, shocks, and electromagnetic interference, and it can withstand extreme temperatures. Thanks to its compact yet robust design, the PipeWIZARD iX system is also easy to transport and manipulate with confidence.

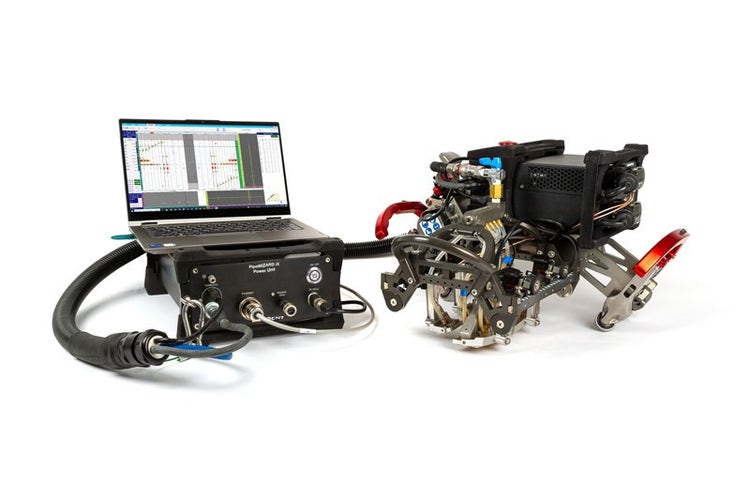

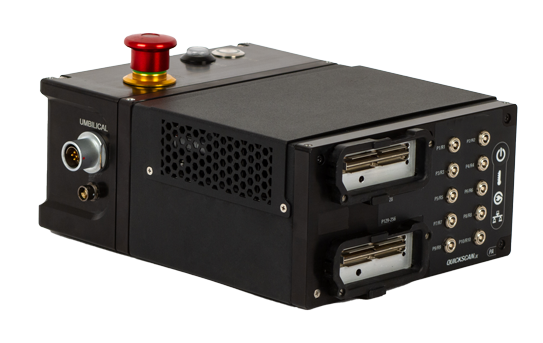

Lighter than its predecessor, the PipeWIZARD iX system’s data acquisition unit is integrated onto the scanner, making it easier to set up and operate. Featuring more powerful electronics and more input channels, the QuickScan iX PA 64:256 data acquisition instrument boosts the PipeWIZARD system’s capabilities and efficiency, improving the coverage capacity and supporting advanced ultrasonic inspection techniques.

Improved Ease of Use and On-Site Efficiency

The optimized hardware design of the PipeWIZARD iX system provides increased setup flexibility and adaptability. Additional umbilical cable lengths, quick-latching connectors, and configurable probe modules increase your ability to accommodate the PipeWIZARD iX setup to varying inspection needs and environments. Its narrower band also significantly reduces coating cutback requirements versus its predecessor.

The PipeWIZARD iX system enables onsite inspection personnel to work together more easily and efficiently. Integrated indicator lights and software functions ease the communication between the scanner technician and operator, so the inspection goes smoothly, even under challenging conditions.

Optimized Inspection and Analysis Workflow

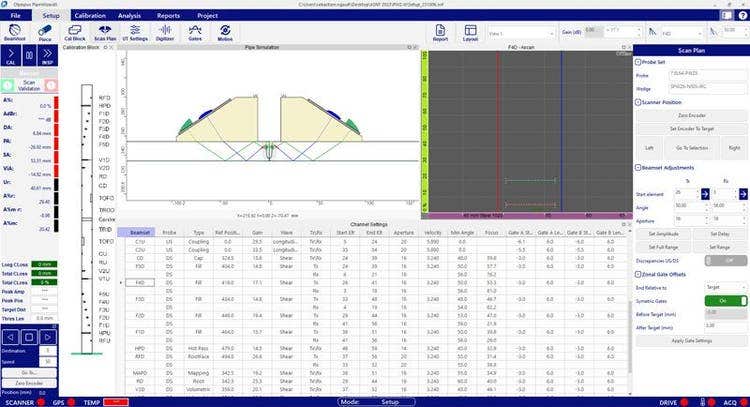

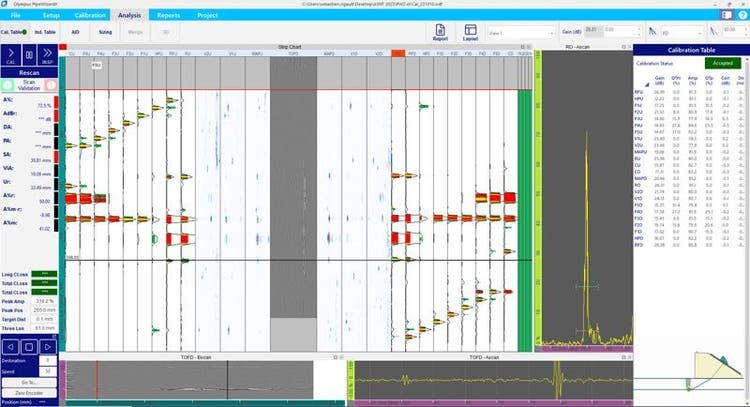

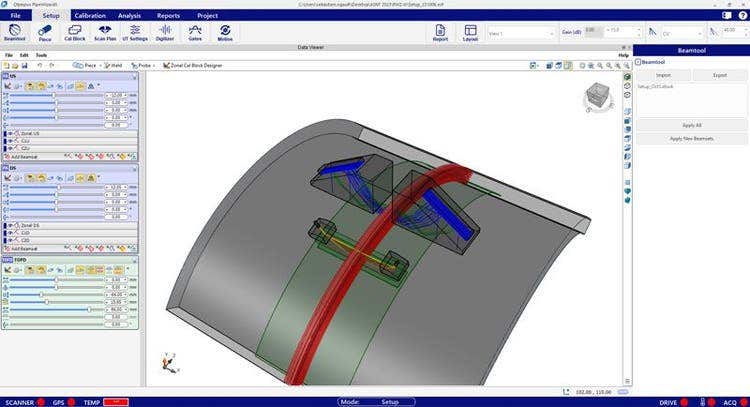

Thoughtfully designed to reflect the key requirements for reliable and code-compliant girth weld validation, the PipeWIZARD iX companion software is easier to use yet features more advanced and sophisticated tools, including:

For increased data accessibility and versatility, the QuickScan iX PA acquisition unit saves data files in an open file format, facilitating custom software development. If customization is an aspect that interests you, talk to your Evident representative for more details.

Applications

Complete Girth Weld Inspection System

The PipeWIZARD iX girth weld inspection system is built for demanding and extreme conditions, from cold subarctic regions to hot deserts. Detecting defects including lack of fusion, incomplete penetration, porosity, burn through, undercut, hi-low, crack, cold lap, inclusion, etc. the PipeWIZARD iX system adapts to all circumferential weld configurations:

Any weld profile type, including J-bevel, V-bevel, double V, X, etc.

Pipe wall thicknesses typically from 6 mm (0.25 in.) to more than 35 mm (1.4 in.); options are available for thicker pipes.

Pipe diameters from 168 mm (6.625 in.) to 1524 mm (60 in.).

Pipe materials from standard carbon-steel to more complex configurations, including Inconel, and cladded pipe.

Automated Ultrasonic Testing (AUT)

For pipeline girth weld inspection, automated ultrasonic testing (AUT) is the replacement of choice for traditional radiography.

Some clear advantages of AUT over radiography:

  • No radiation risks for personnel, no chemicals, or environmental concerns
  • Comparatively short inspection cycle time enabling high productivity
  • Better detection and sizing accuracy, leading to lower rejection rates
  • Satisfies Engineering Critical Assessment (ECA) acceptance criteria with measurement of vertical height and depth of indications
  • Real-time analysis from smart output display
  • Data and inspection reports
  • No licensing required

Multitechnology Inspection Capabilities

Leverage the versatile advanced phased array and conventional ultrasonic technology of the PipeWIZARD iX system:

Code Compliance for Girth Weld AUT Inspections

Confidently validate girth welds according to international standards and regulations governing both the offshore and onshore pipeline industry. The PipeWIZARD iX system enables you to perform AUT inspections that comply with the following codes:

  • ASTM E-1961 code (covering key elements of AUT of girth welds, including zone discrimination, rapid data interpretation, specialized calibration blocks, and configuration procedures)
  • API 1104 standard (by inference)
  • DNV-OS-F101 standard (the offshore AUT code)

When your company’s specifications demand it, you can increase the accuracy of your flaw sizing and achieve a level of resolution that exceeds these code requirements.

Features

Key Features of the PipeWIZARD iX System

Specifications

PipeWIZARD iX System

System Specifications
Size
Full scanner with handles
577 mm × 578 mm × 210 mm (22.7 in. × 22.7 in. × 8.3 in.)
Acquisition unit
243 mm × 188 mm × 100 mm (9.6 in. × 7.4 in. × 3.9 in.)
Weight
Full scanner with handles
18 kg (40 lb)
Acquisition unit
4.8 kg (10.6 lb)
Pipe Diameter Range
From 168 mm (6.625 in.) to 1524 mm (60 in.)
Maximum Scanning Speed
100 mm/s (3.9 in./s)
Environment
Storage temperature
−30°C to 60°C (−22°F to 140°F)
Operating Temperature
−30°C to 50°C (−22°F to 122°F)
Max relative humidity
90% noncondensing
Pollution degree (level)
4
Altitude
Up to 2000 m (6561 ft)
IP rating
IP65
Installation category
III
Ethernet Connectivity
Ethernet interface
1000BASE-T (bandwidth of 1000 Mbps)
Cable length
30 m max. (100 ft)
Cable type
Category 5e or higher, shielded
Transfer rate on Ethernet cable
940 Mbps max.
Connector
Female RJ-45, shielded
DC Power Requirements
Voltage
24 VDC ±5%
Max. power consumption
360 W
System
Warm-up time
None
Probe Connectors
2 phased array (IPEX) and 10 conventional UT (LEMO)
Positioning System
External GPS (optional)
Temperature Sensor
Thermocouple for wedge temperature monitoring
Techniques
Zone discrimination, PA, TOFD, UT
TFM, PWI, PCI (hardware ready, software features in dev.)
Pulser Specifications
Parameter
PA
UT
Number of Focal Laws
1024
N/A
Pulse Output (into a 50 Ω) ±10%
5, 10 , 20, 40, 60, 80, 90 volts peak-to-peak (Vpp) for a bipolar pulse
Pulse Output (in High Impedance)
8.5, 17, 33, 67, 100, 134 and 150 volts peak-to-peak (Vpp)
Number of Pulsers
64:256PR with parallel firing
10
Number of Elements
256
N/A
UT Channels
N/A
P/E: up to 10 and P/C: up to 5
Pulse Width/Step (Precision of 5 ns or ±10%)
30 ns to 1000 ns (steps of 5 ns)
Fall Time
15 ns for a 40 Vpp bipolar pulse
Pulse Shape
Bipolar, positive, and negative square pulse
Output Impedance
25 Ω
39 Ω
Receiver Specifications
Parameter
PA
UT
Gain Range/Increment
0 dB to 80 dB (44 dB analog + 36 dB digital)
Gain Resolution
0.1 dB
Maximum Input Signal
P/E & P/C: 1.05 Vpp
P/E & P/C: 1 Vpp
Input Impedance
P/E & P/C: 63Ω ±15%
P/E & P/C: 132 Ω ±1.5 Ω
Gain Precision between Channels (at 20 dB)
0.5 dB
0.1 dB
Crosstalk Isolation between Channels
>45 dB at 5 MHz
>80 dB at 5 MHz
Only for channel pairs specified in the user manual.
System Bandwidth (−3 dB) ±10%
0.68 MHz to 22.3 MHz
Data Specifications
Elementary A/D Converter
PA: 14 bits, 120 MSPS; UT: 14 bits, 120 MSPS
Digitizing Frequency
100 MHz
Amplitude Resolution
8 bits / 16 bits
A-Scan Height
Up to 800%
Global Data Throughput
Up to 90 MB/s
Maximum Pulse Repetition Frequency (PRF)
25 kHz
Maximum Number of A-Scan Samples
16380
Acquisition Depth
163.8 µs without compression
Compression
1 to 2000
Averaging
1, 2, 4, 8, 16, 32, 64
Rectifier
RF/FW/HW+/HW−
Digital Filtering
Low-pass: 2, 4, 7.45 MHz
Band-pass: 2 (1–3.5), 4 (2–6.5), 5 (2.5–8), 8 (4–12), 10 (5–16), 12 (6–18) MHz
High-pass: 4, 6, 8, 10 MHz
Certifications
EMC
EN IEC 61326-1:2021, EN 61000-3-2:2014, EN 61000-3-3:2013
USA: FCC 47 CFR Part 15, Subpart B – Verification
Canada : ICES-001 Issue 5 July 2020
GPS
ETSI EN 301 489-19 V2.2.1 (2022-09)
Phased Array
ISO-18563-1 (2022)
UT
ISO-22232-1 (2020)
