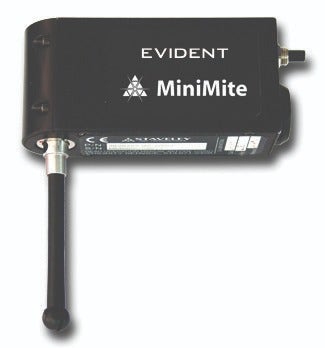

MiniMite Scanner
The MiniMite™ handheld rotating scanner works with our line of NORTEC™ eddy current flaw detectors for the inspection of fastener, bore, and bolt holes. Find flaws fast with high-speed (up to 3000 rpm) and high-frequency (up to 6 MHz) eddy current testing. A right-angle grip is easy to operate with one hand and offers the flexibility to scan from any direction.
MiniMite Scanner
Specifications
Speed Range
600 to 3000 rpm
Speed Control
Instrument controlled
Frequency Range
200 kHz to 6 MHz
Probe Connector
4-pin LEMO or 4-pin Fischer with O-rings
Probe Types
Reflection differential
Signal Coupling
Rotary transformer
Mounting
Handheld
Orientation
No physical restrictions
Alarm
LED indicator located at the rear and top of the case
Cable Connector
16-pin LEMO
Size (L × W × H)
89 mm × 25 mm × 38 mm (3.5 in. × 1 in. × 1.5 in.)
Weight
0.11 kg (4 oz)
Part Number
U8750013 (LEMO); U8750012 (Fischer)
