EPOCH 6LT
Don’t compromise on the inspection capabilities of your flaw detector. The EPOCH® 6LT portable flaw detector combines the functionality of a powerful ultrasonic flaw detection device with a form factor designed to thrive in rope access and high portability applications.
The EPOCH 6LT Portable Flaw Detector
Elevate Your Inspections
Don’t compromise on the inspection capabilities of your flaw detector. The EPOCH® 6LT portable flaw detector combines the functionality of a powerful ultrasonic flaw detection device with a form factor designed to thrive in rope access and high portability applications.

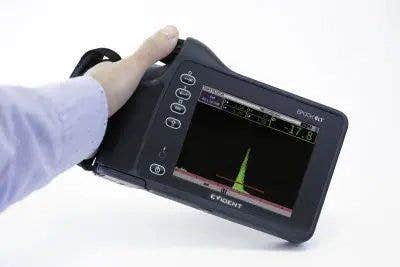

Reliable Flaw Detection in the Palm of your Hand
Portable and easy to use, the EPOCH 6LT flaw detector is an ergonomic, rugged instrument that delivers user comfort and more uptime.
- Weighs just 1.95 pounds (890 g) with a grip-oriented weight distribution for one-handed operation with minimal wrist fatigue
- Rotary knob and simple button design make it easy to use, even when wearing gloves
- Engineered to IP65/67 and drop tested
- Clear, bright screen for readable A-scans in any light
More Functionality on the Go
The EPOCH 6LT flaw detector’s workflow is simple and straightforward. Despite the instrument’s small size, it has the features and functions to meet the requirements of nearly any conventional ultrasonic inspection application.
- Offers all the core functionality of the EPOCH 650 flaw detector in a small, portable instrument
- Meets the requirements of ISO 22232-1
- Optional corrosion software with center-pin transducer ID
- Optional Wireless LAN connectivity

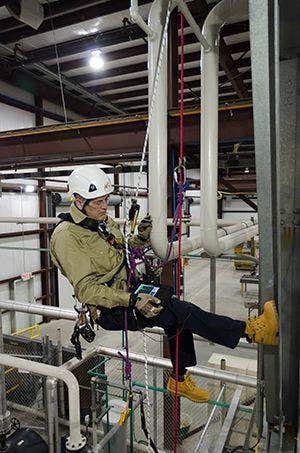

Designed for Rope Access and Ultra-High Portability Applications
For rope access technicians, the EPOCH 6LT flaw detector offers features to help keep you safe during challenging inspections.
- With the optional rope access accessory kit, secure the instrument to your leg with a strap or attach it to your harness, leaving your hands free to maintain balance or adjust the probe
- Rotate the display from portrait to landscape to properly view the A-scan and readings
- For greater flexibility, the 1/4-20 threaded insert enables you to connect the flaw detector to a wide variety of Evident and third-party accessories
Software Features
Powerful Features Optimized for One-Handed Operation
The EPOCH® 6LT portable flaw detector has a variety of standard and optional software features designed to meet a wide range of flaw detection applications.

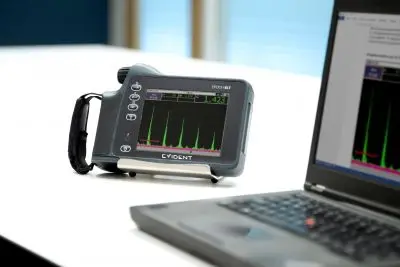

Exporting saved inspection files for reporting is easy. Send your inspection results to a removable USB memory stick in a variety of convenient file formats, such as BMP, CSV, and PDF, to quickly communicate your data.
Connected and Cloud Enabled
With optional Wireless LAN, connect your flaw detector to the Evident Connect and access powerful cloud-based features, including:
- Wireless firmware upgrade
- File backup and archiving
- Remote file access and management
Cloud file management includes all EPOCH 6LT file types, making it easier than ever to report and communicate your inspection results.
Standard Software Features for Reliable Flaw Sizing
Dynamic DAC/TCG: Calculates signal amplitude as a percentage or decibel level compared to a DAC curve or a reference echo amplitude fixed at a time-varied gain. The DAC version includes standard, custom DAC warning curves, and 20–80% views.
DGS/AVG: Enables echo signals to be evaluated with a DGS/AVG diagram, which illustrates the relationship between echo height, flaw size, and distance from the transducer.
AWS D1.1 and D1.5: Provides a dynamic reflector indication rating for various AWS weld inspection applications. This enables more efficient inspections by eliminating manual calculations.
Added Versatility: Optional Software Features

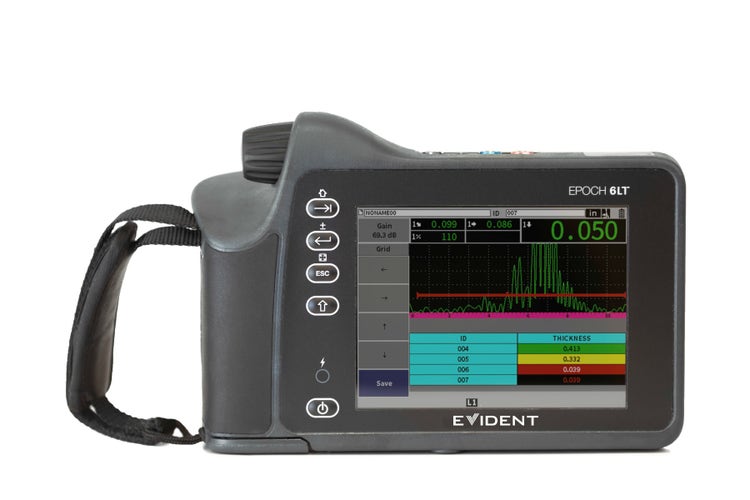

Corrosion Module: For corrosion inspections, this feature enables automatic ultrasonic setups based on transducer selection with automatic probe recognition for all standard Evident corrosion dual transducers, Automatic Gain Control (AGC), a thickness gage measurement algorithm, true V-path correction, and transducer wear compensation using an automatic zero function (“Do Zero”). The module also features a color-coded grid view for improved corrosion reporting capabilities.
Back Wall Echo Attenuator (BEA): Attenuates the back wall of an inspected part using the screen region defined by Gate 2. BEA software enables the user to monitor for back wall drop off while scanning at a high gain level.
Specifications
General
Instrument Inputs/Outputs
(1) USB 2.0 Full Speed Client (Type Mini B)
Environmental Ratings
Pulser
Receiver
0.2 to 26.5 MHz at -3 dB (ISO 22232-1:2020 compliant version)
7 digital filter sets (ISO 22232-1:2020 compliant version)
Calibration
Straight beam (first back wall or echo-to-echo)
Angle beam (sound path or depth)
Gates
Measurements
Applications

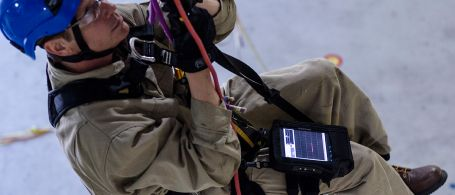

EPOCH 6LT for Rope Access Inspections
With features designed to make rope access inspections easier and help keep these inspectors safe, the EPOCH 6LT flaw detector is optimized for one-handed operation and easily attaches to a user’s leg or safety harness.

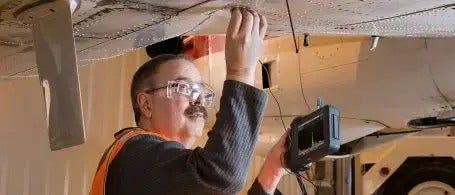

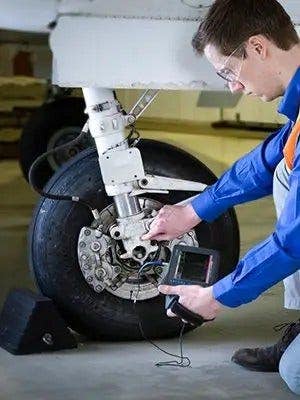

EPOCH 6LT for High-Portability Applications
NDT inspectors working in high portability industries need a lightweight instrument that has the features they need to do their job. The EPOCH 6LT flaw detector meets these needs; it’s comfortable to hold in one hand and small enough to fit in a bag with other equipment.
