In one seamless platform, the NORTEC™ 700 brings conventional ECT and advanced ECA within easy reach. A new generation of powerful probe technology and high-fidelity imaging deliver user-friendly dual-frequency and bolt-hole capabilities, shortening learning curves and making inspection more cost-effective than ever. Engineered from real-world input, this is a breakthrough that standardizes premium inspection technology.

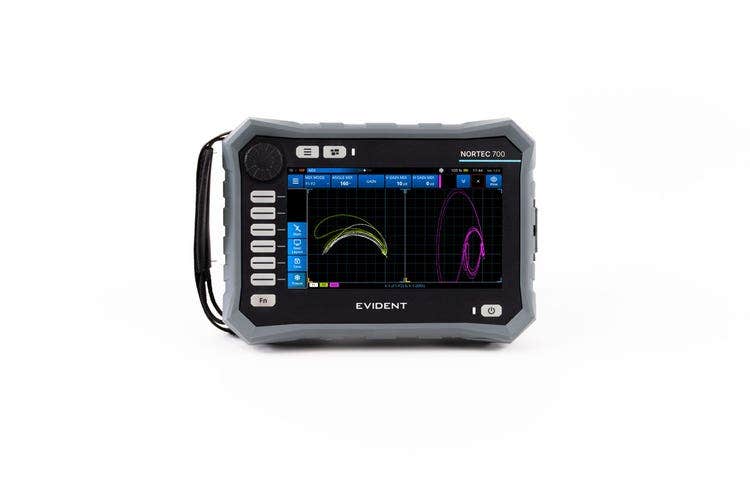

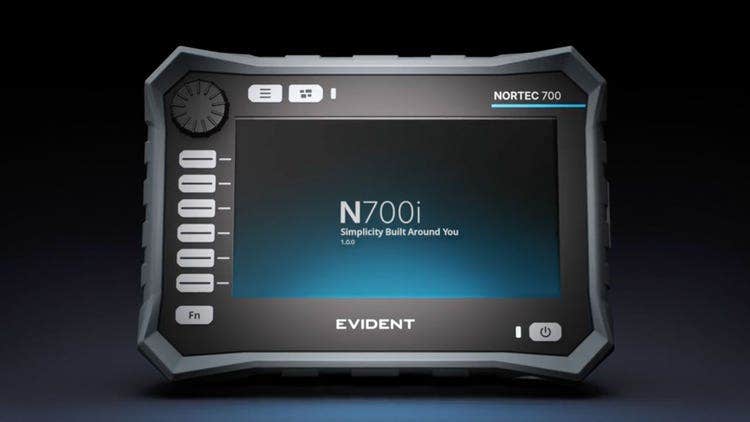

NORTEC 700 Eddy Current Array Flaw Detector: Simplicity Built Around You
An accessible, unified eddy current solution, the NORTEC™ 700 eddy current array flaw detector pairs easy controls with next-gen probe technology and high-fidelity imaging so teams of all sizes can get up to speed fast and work with confidence through the most demanding conditions. Smart, scalable, and cost-effective, the NORTEC 700 eddy current array flaw detector is available in three operator-friendly models:
N700: Conventional eddy current (ECT) for single-frequency inspections
N700D: Expanded versatility with enhanced dual-frequency and bolt-hole capabilities
N700i: Both ECT and advanced eddy current array (ECA), and layer detection
Based on the proven NORTEC 600 series, all three models share the same user-friendly build, simplified workflows, and digital ecosystem compatibility, ensuring seamless training and easy fleet standardization.
Eddy Current Testing Easy from the Start
Streamlined controls, an intuitive interface, and a comfortable, lightweight design help you work faster, stay focused, and trust every result.
The NORTEC 700 offers:
A simplified navigation
Multiple test capabilities
Application-based Intelligent presets
Hybrid hard key/ touchscreen controls
Lightweight portability
Enhanced ergonomics

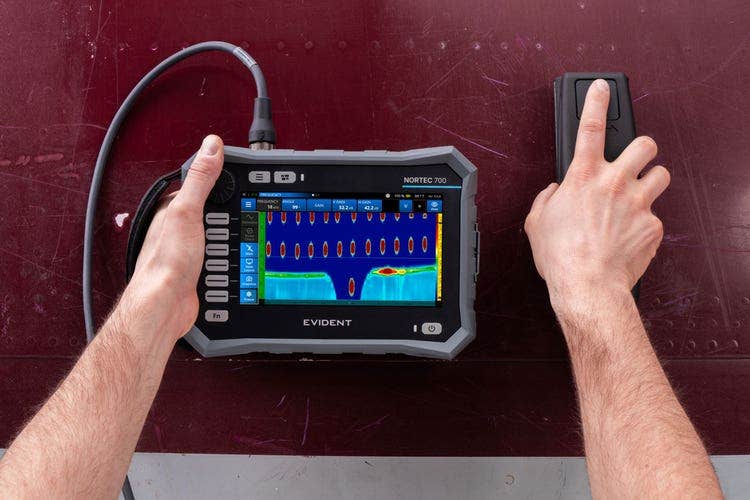

ECT and ECA in One Seamless Platform
The NORTEC 700 combines conventional ECT and advanced ECA in one platform. Users can transition effortlessly between ECT and ECA using the same intuitive interface, preserving setup continuity and eliminating the need for separate instruments.

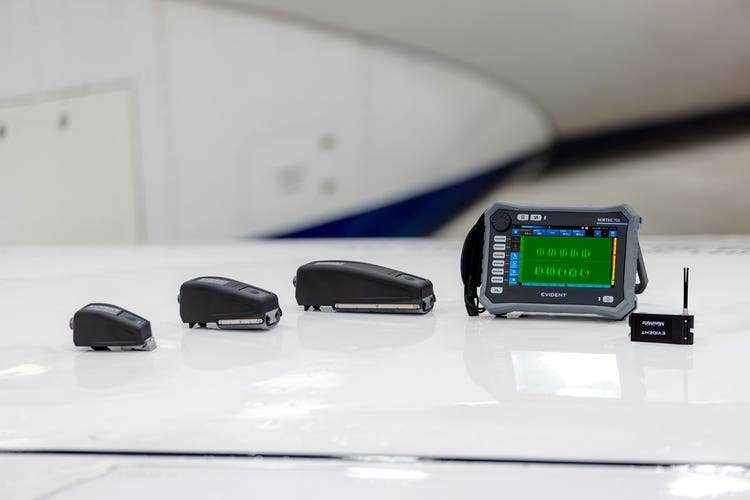

Next Generation Eddy Current Array Probes

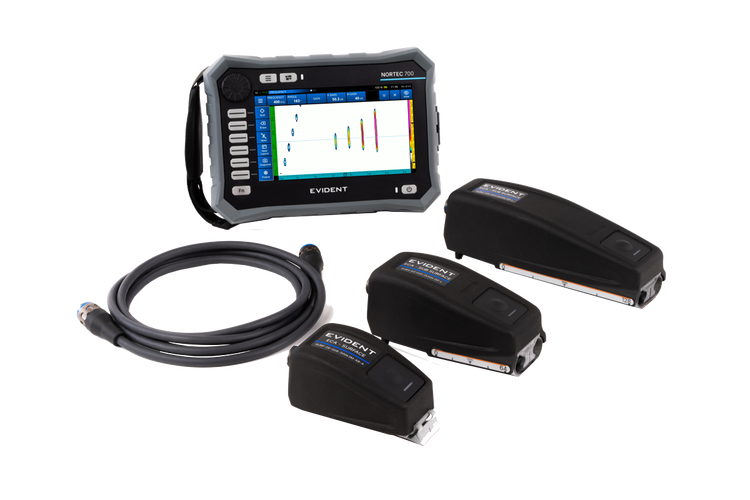

The NORTEC 700 platform introduces not only a new flaw detector, but an entirely new generation of eddy current array probes (up to 256 channels) delivering superior repeatability, uniform signal quality from probe to probe, and simple calibration.

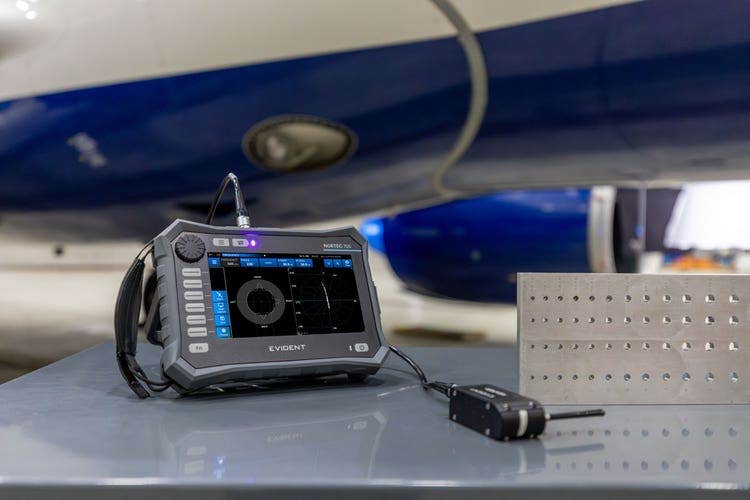

Bolt-Hole Inspection and Layer Detection
Advanced automatic layer detection and Freeze Mode bring new precision to bolt-hole and multi-layer inspections.
Using intelligent signal interpretation, the N700i can accurately distinguish between fastener and backing material layers and genuine defect responses— reducing false calls and minimizing rework.

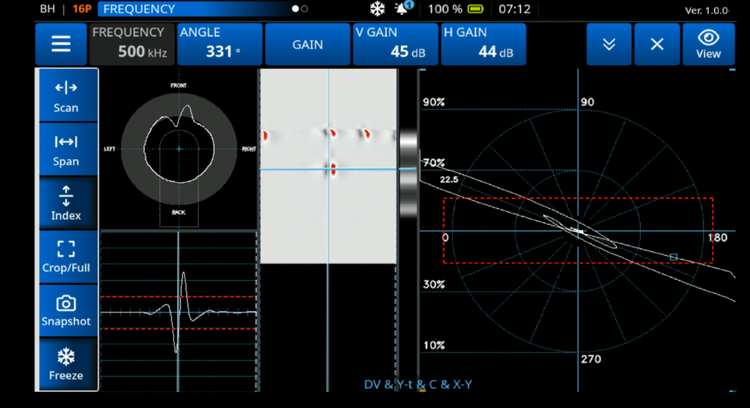

The Defect Viewer feature simplifies defect localization using the direct hole view and the Minimite scanner overlay image.
A New Standard in NDT Inspection
Equal parts simplicity and performance, the NORTEC 700 is available in three versatile models to meet inspection demands across an array of aerospace, defense, industrial, and manufacturing applications. Additional features can also be unlocked remotely.
Features & Models
N700
For users who need to apply simple inspection using ECT conventional technique out of the aerospace duty:
Surface and subsurface crack detection
Conductivity measurement
N700D
More capabilities using a conventional N700 by adding a dual frequency system. All the ECT power without the imagery
Surface and subsurface crack detection
Conductivity measurement
Bolthole (rotary scanner) inspection
Dual frequency capability
N700I
Higher productivity for the eddy current inspection either in conventional or Array modes. More area covering using eddy current array probe and give more visual and intuitiveness for the defect interpretation
Surface and subsurface crack detection
Conductivity measurement
Bolthole (rotary scanner) inspection
Dual frequency capability
Eddy current array (ECA) applications
Defect viewer (bolthole inspection)
Automatic layer detection (bolthole inspection)

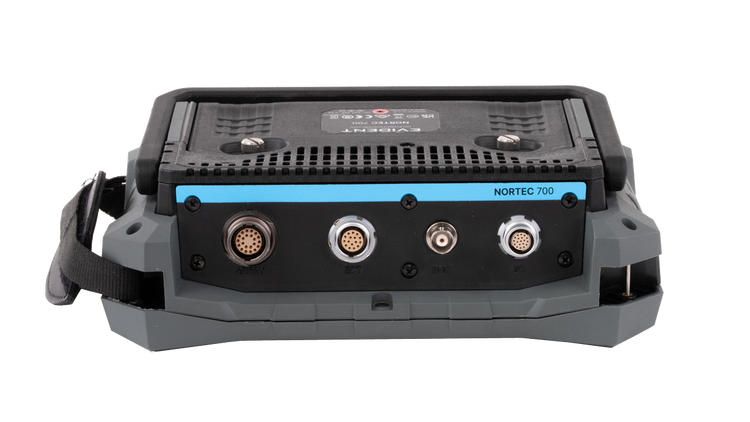

Four Connectors
All NORTEC 700 models come with a standard LEMO® 16-pin universal connector, a BNC ECT connector (automatic internal balancing), an ECA connector, and an I/O connector (for system integration)—simply select the connector in the easy-use interface.
The NORTEC 700’s LEMO connector also supports POWERLINK™ NORTEC probe technology (for bolt-hole and conductivity inspections only), which features automatic probe recognition and instrument presets for quicker setups.

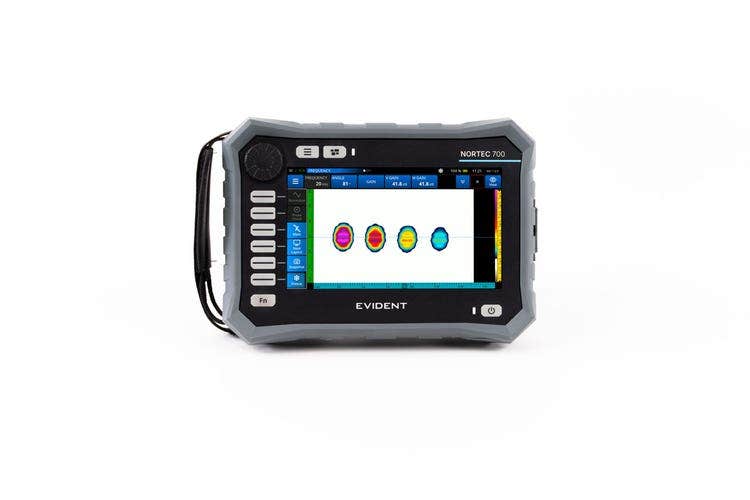

The NORTEC 700 delivers exceptional visual clarity that helps you interpret results faster and with more confidence. Its high-brightness, high-resolution 7-inch display remains sharp and readable even in direct sunlight, ensuring consistent visibility whether indoors or on the tarmac. Enhanced color mapping and real-time imaging bring subsurface defects and surface cracks into sharp focus, delivering instantly recognizable patterns.
Every viewing element—from a responsive interface to refined contrast and brightness—was engineered to improve interpretation accuracy, reduce eye strain, and keep inspections simple and efficient.
Fast Layout Selection
With the NORTEC 700, it is easy to change the layout view using the Next Layout direct-access key. Layouts are user-selectable, enabling you to configure the display to best suit your inspection needs. Choose from a variety of displays:
Single impedance plane
Dual impedance plane
Sweep (strip chart)
One-to-one view

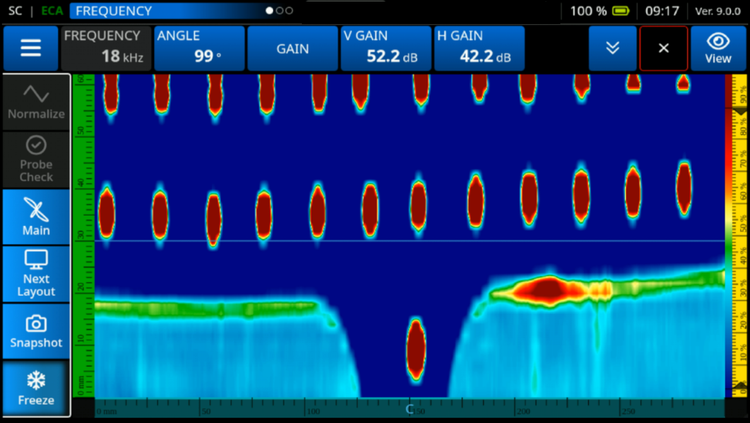

C-scan
C-scan waterfall
Split screen (sweep + impedance)
All-in-one display featuring up to three configurable traces
Seamless Eddy Current Integration
The NORTEC 700 merges seamlessly into any integrated eddy current detection system, ensuring consistent flaw detection in even the most demanding environments.
Rated IP65
-10°C to 50°C (14°F to 122°F) operating temperature range at 80% relative humidity
Continuous null filter
Strip chart view with sweep alarm
30 kHz measurement rate
Remote control from NORTEC PC software
Alarm and analog outputs, digital inputs
Standard impedance plane view, sweep mode (strip chart), C-scan, split screens, adjustable null point, crosshairs, improved filter response, reference signal display, and other useful features are all part of the NORTEC 700 package.
Simplified Reporting that Ensures Accuracy

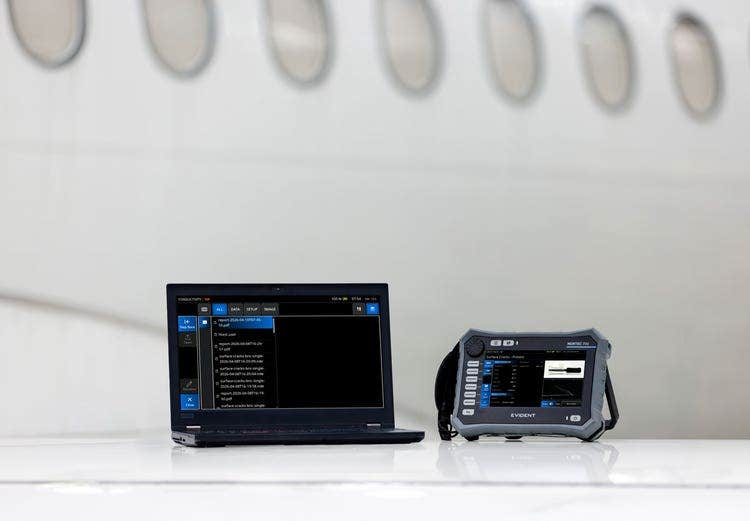

The NORTEC 700 simplifies the entire reporting process with fast, reliable tools that document inspection results directly from the detector—no extra hardware, software, or complex data handling required.
You can capture and save inspection snapshots, setup parameters, and signal data, ensuring that every result is recorded accurately and ready for review.

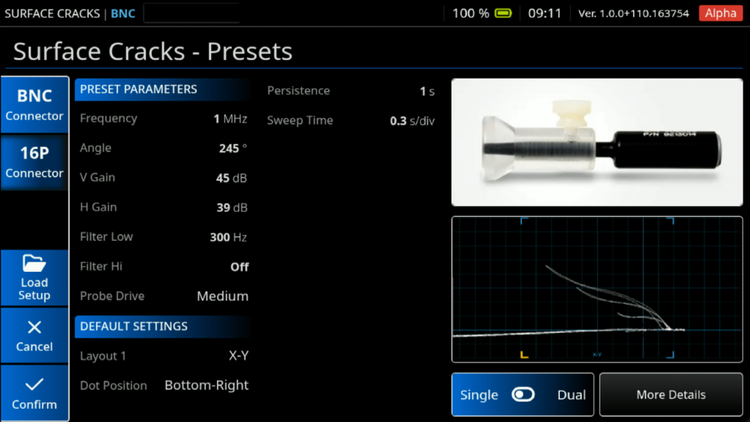

Application-Based Intelligent Presets
The NORTEC 700 turns complex inspection setup into a guided, intuitive process. Each preset automatically configures key parameters for selected probes and inspection types, eliminating guesswork and reducing setup time to seconds.
With preconfigured setups, field crews can start inspections with minimal training knowing that parameters are already optimized for accuracy and compliance. This built-in intelligence ensures consistency across operators and shifts, enforces compliance, and dramatically reduces operator error.

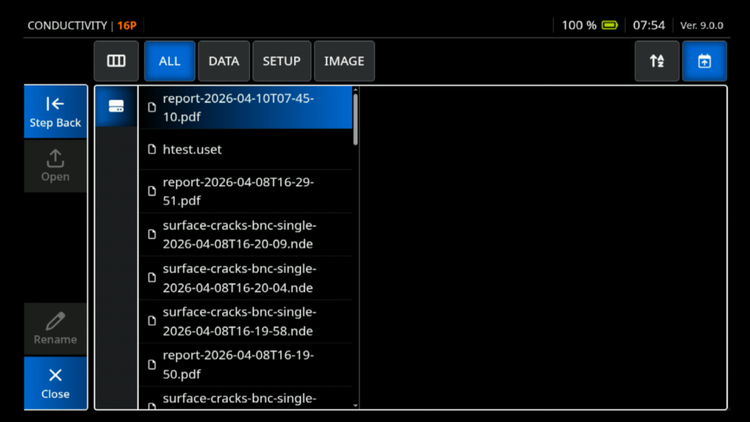

Intuitive File Management
Easily preview, edit, overwrite, and delete files using the NORTEC 700’s File Manager menu. A file preview function makes it simple to browse through different files. Once a file is found, it can be recalled at your convenience. The onboard Text Editor makes it simple to edit file names, revise user and instrument information, and add notes while onsite.
Applications
Aerospace

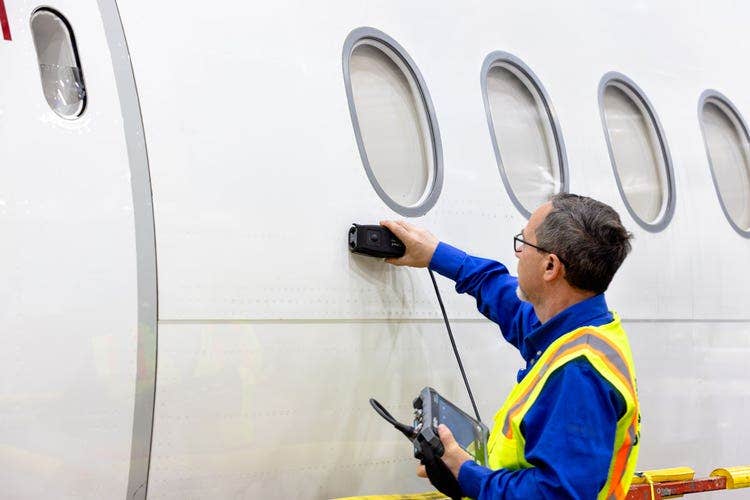

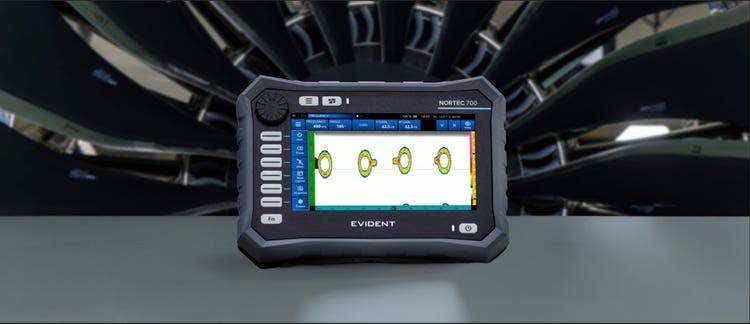

Engineered to deliver exceptional performance for aerospace applications, the NORTEC 700 allows quick, easy surface, wheel, and bolt-hole inspections. The NORTEC 700 offers the signal quality, versatility, and confidence you need to meet every demand of critical aerospace inspection, from surface cracks to fasteners to layered structures.
Defense
Within the harshest conditions on earth, the NORTEC 700 is a mission-ready inspection tool built to keep up. From surface crack detection to bolt-hole and fastener inspection, the NORTEC 700 helps maintenance teams stay on top of aircraft, ground vehicles, naval vessels, and critical equipment through long shifts and remote deployments.
Industrial
The NORTEC 700 gives industrial inspection teams the signal quality, ruggedness, and flexibility to detect flaws accurately and efficiently, wherever the job takes them. The NORTEC 700 is ideally suited for weld inspection, heat exchanger and tube inspection, and surface and corrosion inspection across a wide range of industrial components and materials.

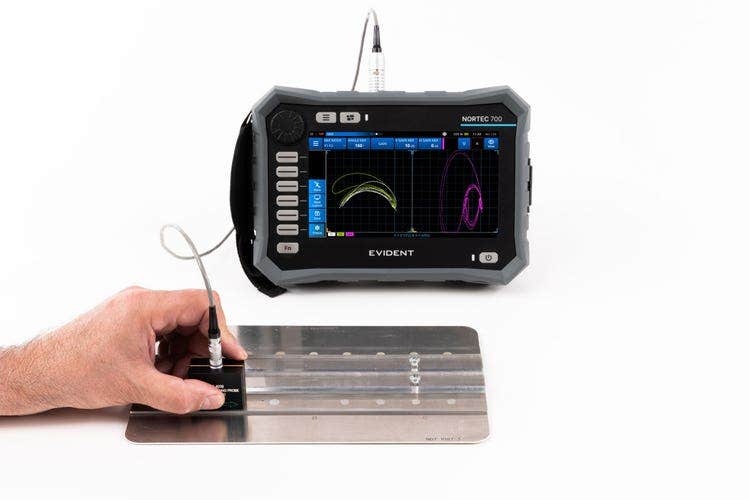

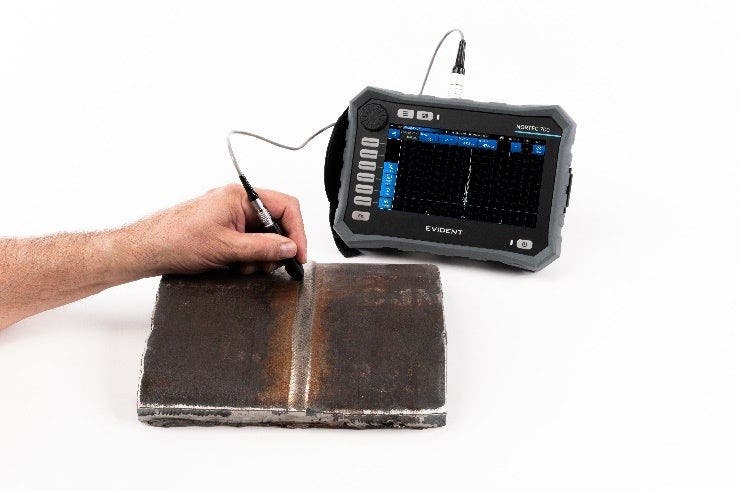

High-performance electronics and a vibrant display deliver outstanding signal quality for surface and subsurface inspections. All standard features for medium- to high-frequency inspection are included: impedance plane views, 10 × 10 grid, sweep (strip chart), multiple alarm configurations, and automatic lift-off. Added features include null point crosshairs, fine (expanded) and web grids, and automatic internal balance circuit (for BNC connector).
Bolt-Hole Inspection (N700D, N700i)
Simplified configuration and an improved filter system make the NORTEC 700 ideal for bolt-hole (rotary scanner) inspection. Filters are set by default to a “figure 6” response. The filters can also be set to the “figure 8” response as needed. For an even easier configuration, operators can activate the Link option, which automatically adjusts the filter settings according to the scanner’s speed settings.

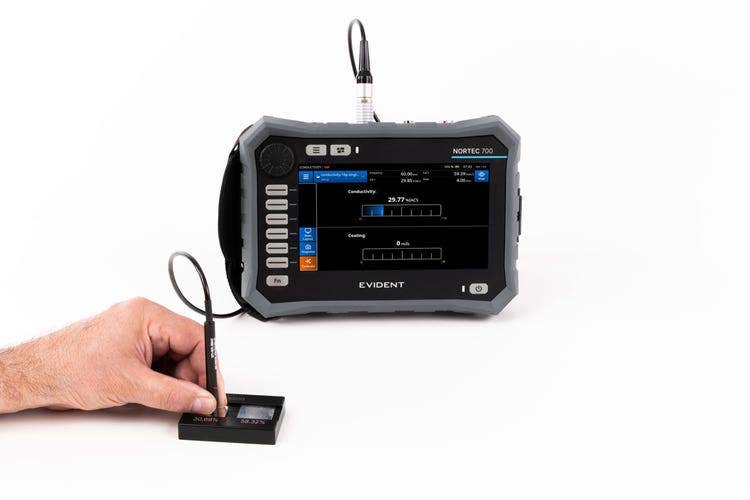

The NORTEC 700’s conductivity mode features a straightforward calibration wizard including user-defined conductivity and coating thickness references. The NORTEC 700 can measure conductivity and non-conductive coating thicknesses of up to 0.64mm (0.025 in.) on non-ferromagnetic materials.
Critical Hole Inspection (N700D, N700i)
With the NORTEC 700, inspecting critical holes is simple and reliable. With support for most industry bolt-hole scanners, improved C-scan waterfall display, and layer cursor, the NORTEC 700 easily pinpoints the location of flaws in layered structures. In addition to these features, the N700i model includes layer detection, a defect viewer, and a C-scan view.
Dual-Frequency Inspection (N700D, N700i)
All-in-One Display An all-in-one display features up to three configurable traces for frequency 1, frequency 2, and mixed channels. Each channel can be displayed as an impedance or strip chart, with independent display position controls.
Real-Time Readings With the Real-Time Readings parameter, you can choose to display up to two real-time signal measurements in standard or full-screen modes. Displaying a variety of measurements reveals the various amplitude and angle (phase) characteristics of the signal.
Choice of three peak-to-peak amplitude measurements (horizontal, vertical, or magnitude)
Horizontal or vertical maximum distance from null point
Angle (phase) measurement of signal as peak-to-peak
Specifications
NORTEC 700 Basic Specifications
For complete specifications, please download the full NORTEC 700 user manual at ims.evidentscientific.com.
Housing Dimensions
230.7mm × 166.9mm × 71.9mm (9.1 in. × 6.6 in. × 2.8 in.)
Weight
1.79kg (3.95 lb.), including lithium-ion battery
IP Rating
Rated IP65
Battery Model and Type
600-BAT-L-2 (Li-ion) [U8760058]
Battery Life
Minimum 8 hours for standard ECT inspections
Operating Temperature
-10°C to 50°C (14°F to 122°F) operating temperature range at 80% relative humidity
0–100 dB; 1-dB increments; linked and independent, vertical and horizontal

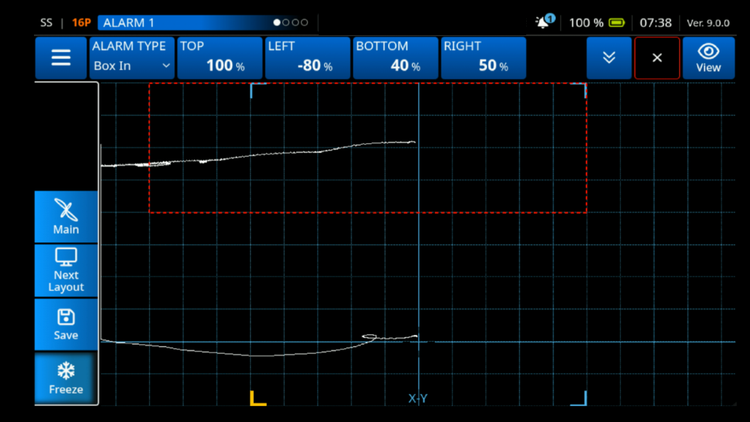

Alarm Quantity
3 (independent)
Available Alarm Types
Choices of BOX (rectangle), POLAR (circle), SECTOR (pie), SWEEP (time-based), CONDUCTIVITY, and COATING THICKNESS
Angle
0–359.9°
Array Capacity
Up to 128 time slots
Number of Inputs
2
Drop-Tested
Method 516.6 Procedure IV, 26 drops, package for shipment
Shock-Tested
MIL-STD-810F, Method 516.5 Procedure I, 6 cycles each axis, 15G, 11 ms half sine shock testing
Vibration-Tested
MIL-STD-810F, Method 514.5 Procedure I, Annex C, Figure 6, general exposure; 1 hour each axis vibration test
Filters
Low-pass: 10 Hz to 2000 Hz and wide band. High-pass: off or 5 Hz to 1000 Hz, user-selectable in constant “figure 6” or “figure 8” filter type
Drive Voltage
2 V p-p, 4 V p-p, 8 V p-p (low, medium, high)
Data Resolution
32 bits
Sample Rate
Up to 30 kHz
Connectivity
USB C peripheral port (supports USB 2.0, USB 3.0, display port over USB alternate mode, Ethernet over USB 2.0 with optional external adapter)
Wi-Fi/Bluetooth
19-pin LEMO I/O connector
Probe Types
Absolute and differential, in either bridge or reflection configuration. The instrument is fully compatible with NORTEC PowerLink probes, as well as other main probe and accessory suppliers.
