HST-X04
Hand Scanner for TOFD weld inspection on flat plates, pipes, and curved surfaces. One encoded axis. Kit includes one TOFD Hand Scanner frame, two TOFD probe holders, two frame bars (150mm and 250mm long), a Mini-Wheel encoder, two 2.5m LEMO-00 to Microdot probe cables, two 10 MHz-3 mm (C563-SM) and two 5MHz-6mm (C543-SM) composite TOFD transducers with Microdot connector, a pair of 45 degree , 60 degree , and 70 degree TOFD wedges with irrigation and carbide wear pins (ST1-45L-IHC, ST1-60L-IHC, ST1-70L-IHC), and one carrying case. Pre-Amplifier kit is available as an option (5682-KIT01)
This product may be available in the NDT Shop on your location.
- Lead Time: 10
Overview
The Evident HST-X04 time-of-flight diffraction (TOFD) manual scanner offers an efficient, low-cost, and versatile weld inspection solution.
Applications

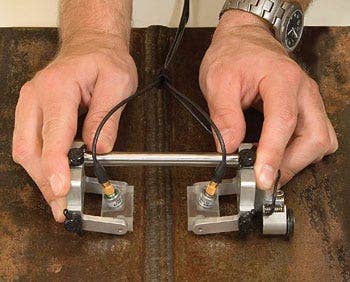

- Manually deployed single-axis scanner for use on plate, pipe, and curved surfaces
- Applicable to pipes, pressure vessels, storage tanks, and structural components
- Operates in any orientation, either on flat surfaces or on pipes up to 51-mm (2 in.) OD.
Data acquisition
- Permanent record of the results with the OmniScan®
- Ideal for position-related A-scan, B-scan, and echo-dynamic scan data collection
- Suitable for any system with 2 UT channels

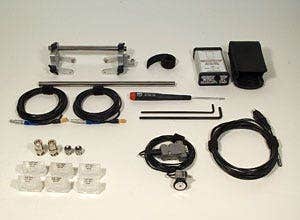

Scanner Kit Components
- Scanner with 150-mm frame
- Two 10-MHz (3-mm element diameter) CentraScan™ composite TOFD probes offering signal-to-noise ratio improvement over conventional UT probes
- Three sets of ST1 wedges with carbide wear pins and irrigation holes for 45º, 60º, and 70º operation
- Two LEMO®-Microdot® transducer cables 2.5m long
- Two LEMO®-to-BNC adapters
- Spring-loaded, friction-driven, and water proof Mini-Wheel encoder for X-axis or Y-axis data encoding
- Brackets for flexible encoder positioning
- Additional 250-mm frame for wider probe center separation
- Foam-padded carrying case
This HST-X04 Scanner kit can be further configured to fit the broad range of Evident TOFD and pulse-echo probes and wedges, including the composite product line.
Optional Preamplifier Kit
Part number: 5682-KIT01
The Panametrics 5682 preamplifier kit includes:
- 5682 preamplifier
- 2.5-m LEMO-LEMO cable
- Power cable
- 9 V battery
- Belt case
Preamplifier operates with standard 9 V battery or plugged to OmniScan® with supplied power cable.
Preamplifier specifications
- 30 dB gain
- 50 hours of battery life (continuous discharge)
- Continuous power-level indicator
- 67 dB signal-to-noise ratio
- Weight: 180 g (6.4 oz) with battery
- CE-certified
Features
- Encoded linear-scan (one axis) for TOFD or pulse-echo inspections with appropriate yoke
- Water proof spring loaded encoder with rubber wheel for maximum adherence on inspected surfaces
- Compact, light and versatile
- Cost-effective
- Durable construction
- Can fit a full range of probes and wedges, including the CentraScan™ composite product line
- Probe center separation (PCS) fully adjustable from 17 mm to 180 mm
- Low-profile frame for use in constrained areas
- Tool-free quick release of wedges and probe holders
- Encoder resolution: 12 step/mm
- Compatible with the OmniScan, the TomoScan FOCUS LT (with optional adapter), and other instruments using the appropriate encoder cable (not included).
