HSMT-Compact Scanner
Multi-Probe Hand Scanner for in-service pipe inspection, for 4-inches pipe outside diameter (O.D.) up to flat surface. Supports up to 4 UT probes and/or phased array probes . This kit includes one waterproof wheel encoder with detachable 5m encoder cable with Lemo connector compatible with current generation of OmniScan and Focus instruments, 4 spring loaded arms (SLA), 4 yokes ADIX689 for TOFD/PE UT probes, 2 yokes ADIX612 for standard Phased Array probes wedges, 4 magnetic wheels, 2 rulers for probe positioning, frame bars of 250mm, 450mm and 650mm, 5m divisable cable protection, irrigation tubes and fittings. Probes, wedges, and umbilical NOT included.
HSMT-Compact Scanner

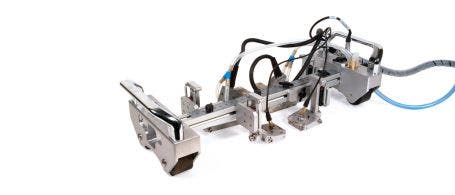

The HSMT-Compact is a manual one-axis encoded scanner. In particular, it is light and small, and also versatile. It can be used (with up to 4 probes) on plates and for circumferential scans on pipes as small as 4.5 in. OD pipes.
Overview

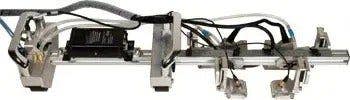

The HSMT-Compact is a light, small, and versatile manual one-axis encoded scanner. It can be used -with up to four probes- on plates and for circumferential scans on pipes as small as 4 in. schedule (4.5 in. OD). The scanner length can be changed and the frame can extend outside the limit of the wheels, providing a configuration that is well suited for hard-to-reach places such as pipe-to-component welds.
The HSMT-Compact completes the HSMT family. While the HSMT-Flex and HSMT-X03 are designed for construction welding inspection, the HSMT-Compact is designed for maintenance weld inspection.
HSMT-Compact Kit Includes:
- Scanner frame with handles
- Additional frame bars: 400 mm (16 in.) and 600 mm (24 in.)
- Four magnetic, plastic-covered wheels
- Waterproof, spring-loaded wheel encoder
- OmniScan-compatible encoder with 5 m cable
- Four 90° probe holder brackets
- Four spring-loaded arms (SLA)
- Four TOFD/PE yokes (31.75 mm)
- Two phased array yokes (40 mm)
- Irrigation tubing and accessories
- Two metric/U.S. rulers
- Hard carrying case
Note: Probes and wedges are not included in the basic kit.
Configurations
A typical configuration includes two phased array probes and a pair of TOFD probes, to comply with ASME code.
Other configurations include:
- 1 pair of TOFD probes
- 2 pairs of TOFD probes
- 2 PA probes
Options
Manual Water Pump Kit
Water pump is compatible with scanner umbilical cables. It can also be used with provided tubing. Includes tank, tubing, and Y-splitters (part number: OPIX105).
TRPP 5810 Remote Pulser/ Preamplifier
Four-channel 40 dB Remote Pulser/Preamplifier with LEMO® connectors to amplify probe and instrument output signals. Using the TRPP 5810 and composite probes enhances the S/N ratio in TOFD inspections.
Features
- Circumferential scan on 4 in. schedule pipes (4.5 in. OD), or greater
- Magnetic wheels hold the unit against a ferromagnetic inspection surface.
- Light aluminum frame with customizable length
- Frame design allows probes to be positioned outside the wheels.
- Support up to 4 probes on pipes or flat surfaces
- Fully adjustable probe positioning
- Independently spring-loaded probe holders
- Waterproof, spring-loaded encoder
- Removable handles
- Eyelet for umbilical or lanyard attachment
- Water manifold integrated into the scanner frame
- Metric/U.S. rulers on the scanner for easy probe separation measurement
