Overview
Bond Seam Inspection

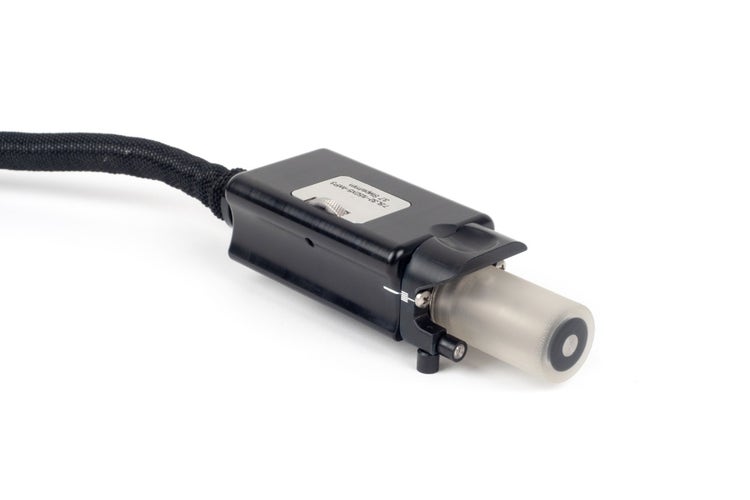

The EdgeFORM™ phased array wheel probe is used by automotive manufacturers to inspect for voids in bonded or glued seams in trunk, hoods, and door panels. It’s also ideal for inspecting composites and other smooth-surfaced materials.
Benefits:
- Exceptional coupling with minimal couplant
- Near-surface resolution up to 1 mm (0.04 in.)
- Inspect flat, smooth, and curved panels from 0.5 mm to 1.5 mm (0.02 in. to 0.06 in.) thick
- Inspect aluminum plates up to 20 mm (0.79 in.) thick with a 10 mm (0.39 in.) delay line
- Cover bond seams up to 32 mm (1.26 in.)
- Adjustable rollers optimize signal stability
- Available in 1.0 mm and 0.36 mm pitches, depending on resolution requirements
The Edge of Technology

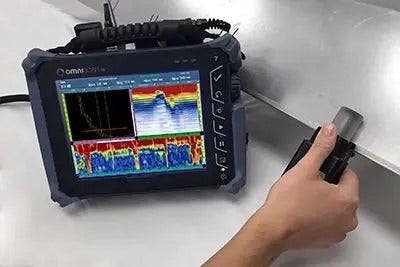

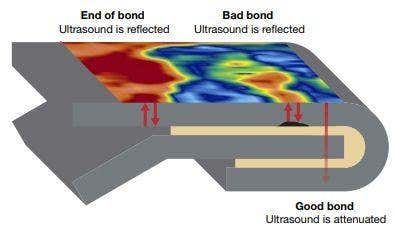

The probe’s zero-degree ultrasonic beams and built-in encoder enable it to produce a clear C-scan image. If the bond is good, sound energy is transmitted and attenuated in the glue and metal sheets. If it’s bad, the sound is reflected back. A gate in your helps identify the bond seam and show it in a C-scan image. The image is color coded according to the signal amplitude.
Unique Probe Design
Adjustable Wheel
Adjust the aperture in the vertical and horizontal axes to cover multiple panel geometries. The horizontal range is 32 mm, and the vertical range can be adjusted +/- 2.5 mm.
Lightweight and Ergonomic
The lightweight scanner (0.3 kg or 0.66 lb) is ergonomic, enabling stable scans on flat or curved automotive body panels.
Innovative Transparent Tire
The tire is made of a unique material that enables high-quality, immersion-like testing. It has an easily accessible fill port, so you can identify and remove bubbles in the chamber.

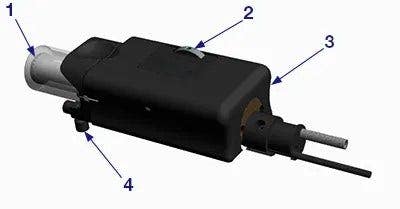

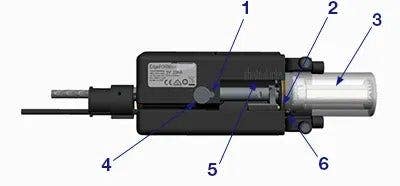

- Alignment Set Screw
- Magnetic Encoder
- Phased Array Probe
- Locking Thumb Screw
- Adjustment Scale
- Easy Access Fill Port
- Acoustic Polymer Wheel
- Adjustment Knob
- Ergonomic Housing
- Adjustable Guide Rollers
Specifications
| Description | Value |
| Frequency | 7.5 MHz |
| Typical near-surface resolution | Aluminum: 1.5 mm (for 1.0 mm pitch) / 1.0 mm (for 0.36 mm pitch) Steel: 2.0 mm (for 1.0 mm pitch) / 1.5 mm (for 0.36 mm pitch) |
| Dimensions (L × W × H) | 153 mm × 45 mm × 45 mm (6 in. × 1.77 in. × 1.77 in.) |
| Probe coverage value | 2–11.5 mm (32 × 0.36 model) / 4–32 mm (32 × 1 model) |
| Encoder resolution | 3.7 steps/mm |
| Weight (with tire filled) | 0.3 kg (0.66 lbs) |
