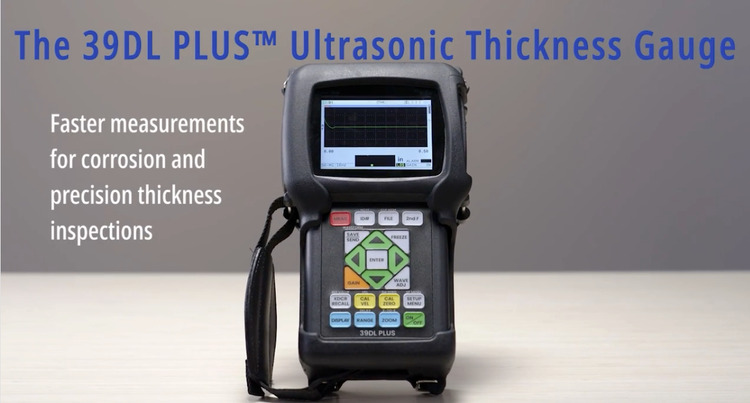

39DL PLUS Ultrasonic Thickness Gauge

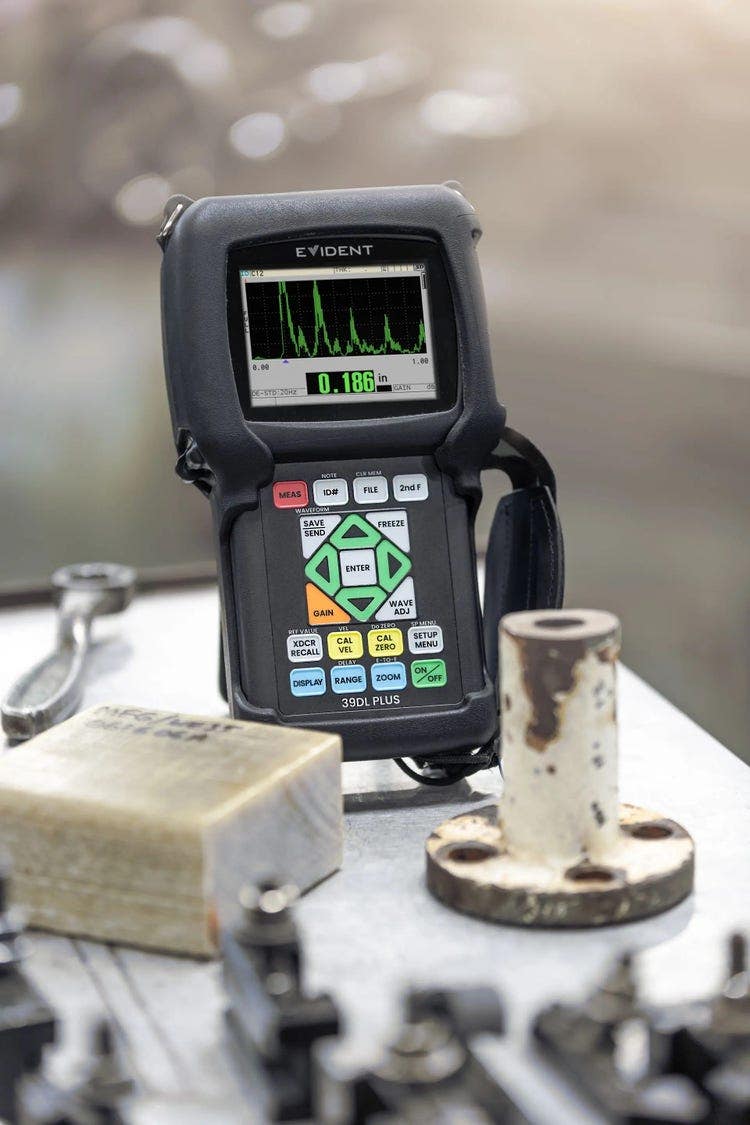

The 39DL PLUS™ gauge works as a precision or corrosion thickness gauge for demanding applications. Integrated Wi-Fi®, Bluetooth®, USB, RS-232, and a removable microSD card. Scan for minimal thickness areas at a 2 times faster display update rate. Tackle multiple thickness applications with full line of dual and single element transducers.
39DL PLUS™ Ultrasonic Thickness Gauge
Faster Thickness Results
Streamline your ultrasonic thickness inspection process with one fast, connected, and reliable handheld gauge. The 39DL PLUS™ gauge works as a precision or corrosion thickness gauge for demanding applications.
With world-class ultrasonic capability, fast scanning speeds up to a 60 Hz update rate, and fully integrated wireless connectivity, our flagship handheld thickness gauge delivers results you can trust in a seamless workflow.
- Connected: Integrated Wi-Fi®, Bluetooth®, USB, RS-232, and a removable microSD card*
- Fast: Scan for minimal thickness areas at a 2 times faster display update rate**
- Versatile: Tackle multiple thickness applications with our full line of dual and single element transducers
*Wi-Fi® and Bluetooth® are pending certification in some regions. Contact your local Evident representative for details on their availability.
**Up to 60 Hz versus 30 Hz on the predecessor model and comparable handheld thickness gauges.
Affordable Part Scanning
With breakthrough scanning speeds, the 39DL PLUS instrument offers an industry-leading* 60 Hz update rate for handheld thickness gauges.
- Works as an affordable alternative for inspection codes that require a 60 Hz display update rate for scanning; get the scanning speed of a flaw detector with the ease of use of a thickness gauge
- Find thin spots more easily when scanning for minimal thickness areas on pipes and other assets affected by corrosion
*As of June 2024.
One Thickness Gauge for Multiple Applications
Take advantage of powerful measurement features and a suite of application-specific software options for your current and future requirements.
- Wide thickness range: 0.08 mm (0.003 in.) to 635 mm (25 in.) depending on material and transducer selection
- Corrosion thickness gauging with dual element transducers
- High Resolution software option of 0.001 mm or 0.0001 in. with single element transducers from 2.25 MHz to 30 MHz
- THRU-COAT™ technology and echo-to-echo measurements to measure through painted and coated surfaces
- Internal Oxide/Scale software option for boiler tube and internal oxide measurements
- Multilayer software option to measure up to four layers simultaneously
- High Penetration software option for attenuating materials such as fiberglass, rubber, and thick castings
- Standard resolution: 0.01 mm or 0.001 in. for all transducers
- Thickness, velocity, and time-of-flight measurements
- Differential mode and reduction rate mode to track thickness variation and its percentage from a preset value
- Time-based B-scan mode: 10,000 reviewable readings per scan
- High Dynamic Gain technology with digital filters optimizes the starting gain setting based on calibration
- V-Path Builder for custom V-path compensation in corrosion applications
- Designed for EN15317 compliance
- Compatible with all probes and accessories supported on the predecessor model

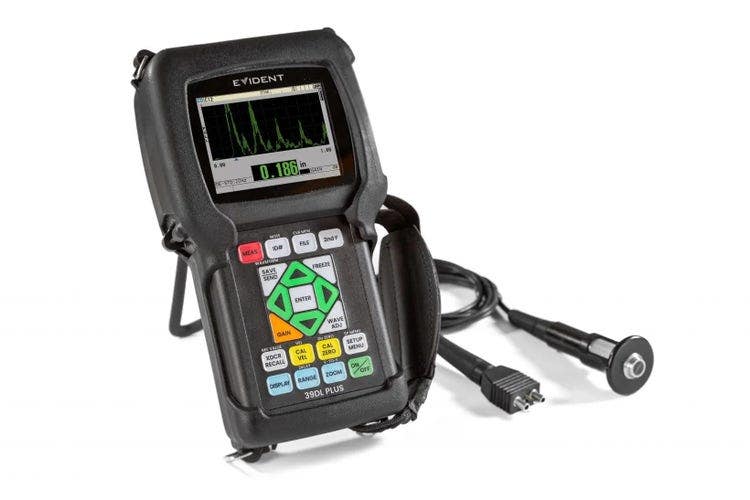

Key Benefits
Trusted Ultrasonic Technology
The 39DL PLUS™ gauge builds on proven performance. Confidently perform your work with industry standard technology for ultrasonic thickness testing.
- Accurate, reproducible measurements from exceptional signal quality, stable waveforms, and optimized algorithms
- World-class ultrasonics developed by professionals with 35+ years of nondestructive testing (NDT) experience

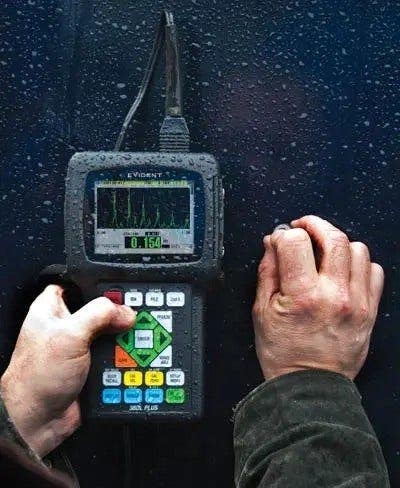

Built to Last in Any Environment
Your thickness gauge needs to keep working despite shocks, drops, and rough handling, and the 39DL PLUS instrument is up to the challenge.
- Rugged: Designed for IP67 for protection against dust and water
- Explosive atmosphere, shock, and vibration tested using MIL-STD-810H
- Wide operating temperature range: –10 °C to 50 °C (14 °F to 122 °F)
- Protective rubber boot with gauge stand
Easy to Carry, Easy to Use
Designed with the operator in mind, the 39DL PLUS handheld gauge is comfortable to carry and use in the field or on the production floor.
- Ergonomic keypad: operate with the left or right hand for quick access to all functions
- Lightweight handheld design: Weighs only 0.83 kg (1.83 lb)
- Built-in data logger: Easily collect thickness readings and waveform data
- Efficient inspections: Default and custom setups for dual and single element transducers
- Secure access control: Lock instrument features with password-protected functions
- Excellent clarity: Color transflective VGA display with indoor and outdoor color settings
- See work on a larger screen: VGA output to connect the gauge to a computer or monitor
Outdoor display setting, A-scan mode
Indoor display setting, B-scan mode
Workflow

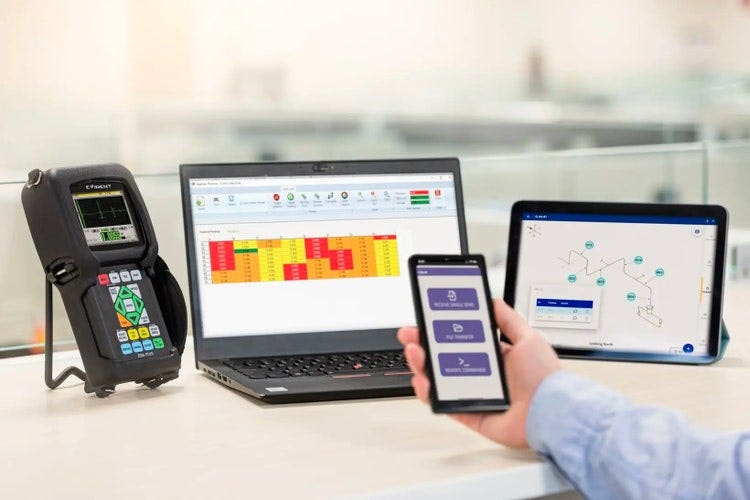

Save Time with a Digital Inspection Workflow
Integrated Wi-Fi® and Bluetooth® capabilities on the 39DL PLUS™ thickness gauge enable a seamless inspection workflow for Industry 4.0.
- Wirelessly connect to the Link Plus iOS app, Link-Wedge software, or the Inspection Project Manager (IPM) app to effortlessly share results
- Use GageView™ software for the flexibility to review data with a wired connection

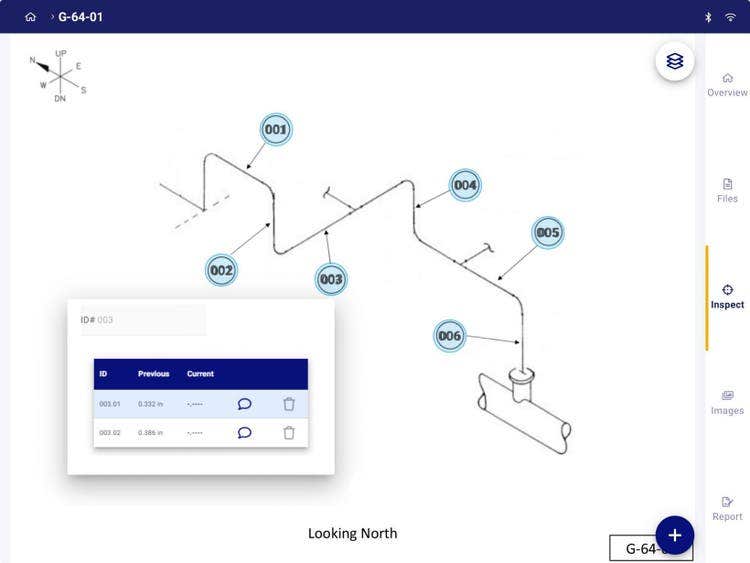

Powerful Workflow Management Tools
The Inspection Project Manager (IPM) is a cloud-based web and mobile app offering a digital inspection workflow that improves efficiency and data integrity.
- Use the iOS or Android mobile app with or without an internet connection to efficiently execute inspection tasks
- Collect inspection data and digitally sign off on inspection tasks in an intuitive interface
- The digital report automatically updates throughout your inspection
Send Thickness Data to Your Mobile Phone or Tablet
Use the Link Plus iOS app and Bluetooth® to send thickness data to your phone or tablet.
- From your mobile device, share thickness data over text message or email, or save the data as a text file for easy import to a spreadsheet
- You can also send data to compatible third-party mobile applications
Easily Populate Your Thickness Data into Data Entry Programs
Use the optional Link-Wedge software and Bluetooth® to send data from your gauge to an active Windows software application. The software can populate data into almost any Windows-based data entry program.
Remote Control and Integration
The 39DL PLUS gauge offers the potential for remote control and integration, enabling convenient control of the gauge from a distance in innovative applications. To learn more about these capabilities, reach out to your local Evident sales representative.
Confidence in Your Thickness Data
Built-In Data Logger
Improve productivity and data traceability with the full-featured, built-in data logger on the 39DL PLUS gauge. The bidirectional alphanumeric data logger is designed to easily collect and transfer thickness readings and waveform data.
Log data
- Internal memory of 792,832 thickness readings or 20,000 waveforms with thickness readings
- 32-character file name
- 9 file formats: incremental, sequential, sequential with custom point, 2D grid, 2D grid with custom point, 3D grid, 3D custom, boiler, and manual
- 20-character ID# (thickness measurement location or TML#)
- Store up to 4 notes per ID#
- Store notes at one or more ID#s
Analyze data
- Onboard statistical report

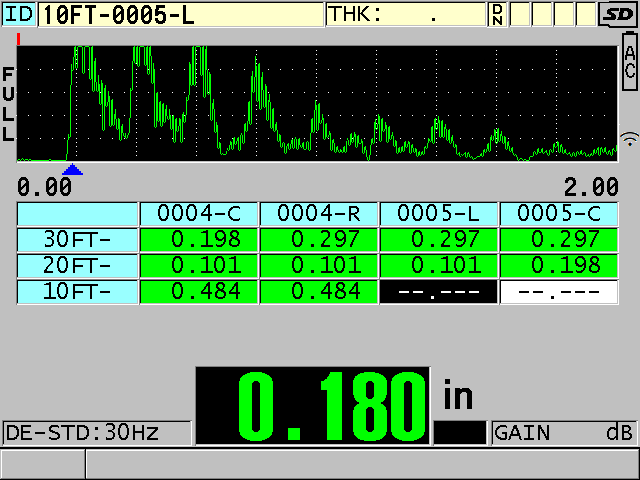

- Assess readings at a glance: Onboard DB Grid View with three programmable colors set to specific thickness values
Transfer data
- Wirelessly share data: integrated Wi-Fi® and Bluetooth®
- Wired data transfer: USB and RS-232 communication ports
- Two-way transfer of single and dual element transducer setups
- Copy files between internal/external microSD™ memory cards; directly export internal files to a microSD card in an Excel-compatible CSV format
PC Software

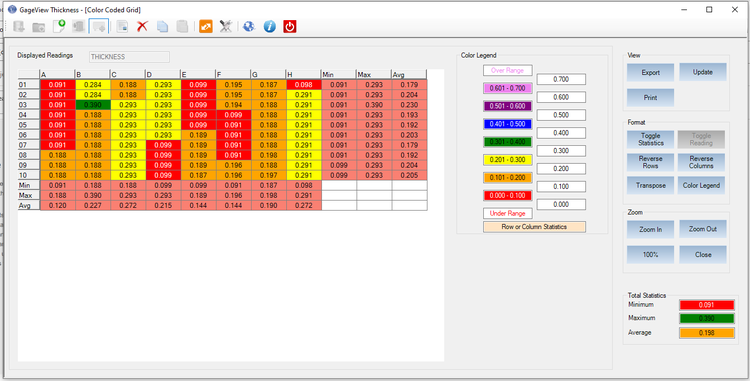

The GageView™ interface program, a Windows-based application, collects, creates, prints, and manages data from the 39DL PLUS gauge. The software communicates with the gauge using the USB and RS-232 ports, and it can read and write to a microSD memory card.
- Create datasets and surveys
- Edit stored data
- View dataset and survey files, including thickness readings, gauge setup values, and transducer setup values
- Download and upload thickness surveys to and from the gauge
- Export surveys to spreadsheets and other programs
- Collect snapshot screens
- Print reports such as thickness, setup table, statistics, and color grid
- Upgrade the operating software
- Download and upload single and dual element transducer setup files
- B-scan review
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Evident Corporation is under license.
Applications
The 39DL PLUS™ instrument works as a precision or corrosion thickness gauge in a variety of inspections. Explore the applications below to discover common inspections, related software features, and a full line of compatible transducers.

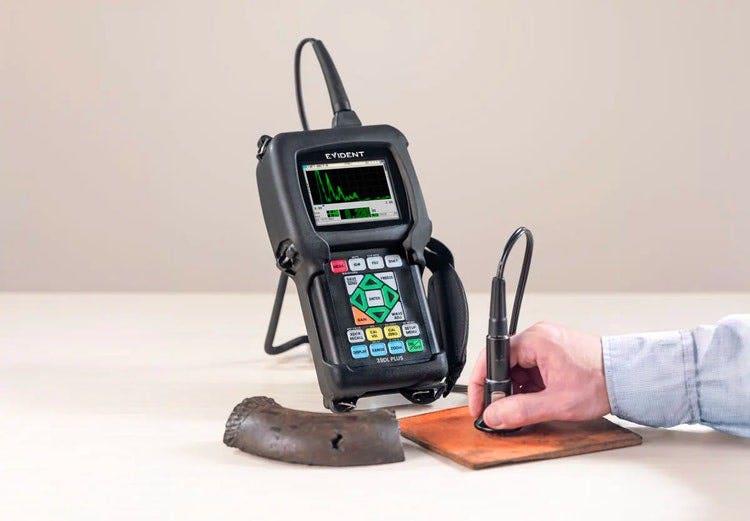

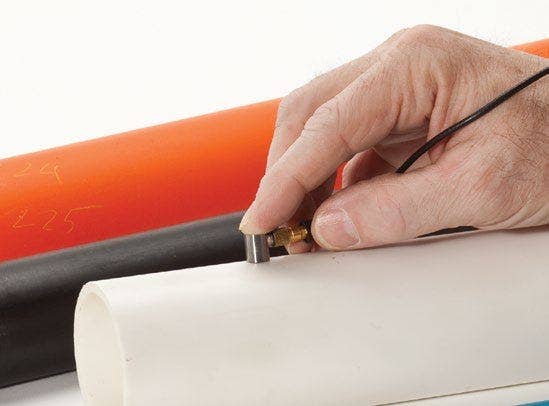

Thickness Measurements on Plastics, Metals, Composites, Glass, Rubber, and Ceramics
Use single element transducers with the 39DL PLUS gauge to make accurate thickness measurements on metals, plastics, composites, glass, ceramics, and other materials. These transducers are available in a wide range of frequencies, diameters, and connector styles.
- Versatile measurements: Take thickness, velocity, or time-of-flight measurements.
- Standard resolution of 0.01 mm (0.001 in.) for all transducers.
- High Resolution software option: Make very precise measurements at a resolution of 0.0001 in. or 0.001 mm for single element transducers from 2.25 MHz to 30 MHz.
- Application auto-recall: Simplify thickness measurements with default and custom setups
- High Penetration software option: Measure thick or sound attenuating materials, such as rubber, fiberglass, castings, and composites, using low-frequency single element transducers (low as 0.5 MHz).
- Multilayer software option: Calculates and simultaneously displays thickness measurements of up to four individual layers. It can also display the total thickness of selected layers.
- Differential and reduction rate modes: Differential mode shows the thickness variation from a preset thickness value. Reduction rate mode displays the percentage of that thickness variation.
Transducers for Precision Thickness Gauges
Evident offers a complete selection of single-element transducers, cables, couplants, calibration test blocks, and accessories to meet a wide variety of precision thickness gauging applications.

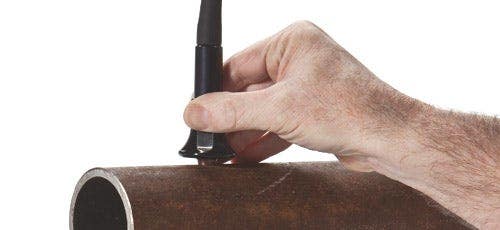

Thickness Measurements on Internally Corroded Metals
Use the 39DL PLUS gauge to measure the remaining thickness of pipes, tubes, tanks, pressure vessels, hulls, and other structures affected by corrosion or erosion. Dual element transducers are commonly used for these applications.
- Automatic probe recognition: Automatically recalls a default V-path correction for each specific transducer. Available for all standard dual element transducers (including the D79X series).
- Easier application setup with 10 custom transducer setups for dual element transducers.
- High Dynamic Gain technology with digital filters optimizes the starting gain setting based on calibration for dual element transducers
- V-Path Builder: Build a custom V-path compensation curve for almost any dual element transducer. You can save and recall these curves along with custom setups for most dual element transducers.
- High-temperature measurements up to 500 °C (932 °F)
- Temperature compensation: For more accurate measurements in varying temperatures, manually enter the calibration block’s temperature and the current (high) temperature at the measurement points. The gauge automatically displays the temperature-corrected thickness.
- Encoded B-scan option: Connect the gauge to a linear encoded scanner to generate encoded B-scans. The gauge captures and stores the distance traveled information with corresponding thickness readings and the waveform at the minimum thickness location. You can select the distance between measurements and between bidirectional and unidirectional modes. Store up to 10,000 thickness readings in a single B-scan.
- Calibration doubling warning in case echo doubling occurs during calibration.
- THRU-COAT™ technology and echo-to-echo measurements on painted and coated surfaces. The THRU-COAT feature measures true metal thickness. It can also display the metal and coating thicknesses, each adjusted for their correct material sound velocities. THRU-COAT measurements use D7906- SM, D7906-RM, and D7908 dual element transducers.
- Oxide/scale measurement option: Measures the thickness of oxide/scale buildups inside boiler tubes with M2017 or M2091 single element transducers so you can estimate tube life. Gauge simultaneously displays the boiler tube’s metal thickness and the oxide layer’s thickness.
- No-couplant measurements of boiler tubes with external oxide/scale buildup using the EMAT E110-SB transducer.
Transducers for Corrosion Thickness Gauges
Evident offers a complete selection of dual element transducers and cables to meet a wide variety of corrosion thickness gauging applications.
Specifications
39DL PLUS™ Specifications
Mode 2: Time interval between the delay line echo and the first back-wall echo (with delay or immersion transducers)
Mode 3: Time interval between successive back-wall echoes following the first interface echo after the excitation pulse (with delay line or immersion transducers)
Oxide: optional
Multilayer mode: optional
Standard: 0.01 mm (0.001 in.)
High Resolution (optional): 0.001 mm (0.0001 in.)
High Penetration (optional): 0.50 MHz to 30 MHz (-3 dB)
Fast charge: 2 to 3 hours
Standard Package
39DL PLUS digital ultrasonic thickness gauge, AC or battery, 50 Hz to 60 Hz. Kits available with standard dual element transducers.*
- Charger/AC adapter (100 VAC, 115 VAC, 230 VAC)
- Internal data logger
- GageView interface program
- Test block* and couplant
- USB cable
- Rubber protective boot with gauge stand and neck strap
- User's manual
- Two-year limited warranty
Measurement features: THRU-COAT, Thru-Paint Echo-to-Echo, EMAT compatibility, Min./Max. mode, two alarm modes, differential mode, B-scan, Application Auto-Recall, temperature compensation, Average/Min. mode
*In the EMEA region, transducers are not included and must be purchased separately.
Software Options
39DLP-OXIDE (Q1470008): Code-activated Internal Oxide measurement software
39DLP-HR (Q1470006): Code-activated High Resolution measurement software
39DLP-MM (Q1470007): Code-activated Multilayer measurement software
39DLP-HP (Q1470005): Code-activated High Penetration (low frequency) measurement software
39DLP-EBSCAN (Q1470004): Encoded B-scan software
Optional Accessories
1/2XA/E110 (U8767104): Filter adapter for E110-SB EMAT transducer
38-9F6 (U8840167): RS-232 cable
38-C-USB-IP67 (U8800998): USB cable for IP67 sealed operation
38DLP/RFS (U8780288): Foot switch, factory installed
HPV/C (U8780124): Digital caliper for thickness input for velocity measurements
38DLP-V-CC (U8840172): Cable for digital caliper
EPLTC-C-VGA-6 (U8840035): VGA output cable
MICROSD-ADP-2GB (U8779307): 2 GB external microSD memory card (gauge can use up to a 32 GB microSD card)
BSCAN-ENC (U8779522): Encoded B-scan buggy
38DL-ENC-CBC-10 (U8840168): 10 ft encoder cable
