Borescope Light Sources

Videoscopes and Borescopes

Overview

Borescope light sources provide illumination for industrial fiberscopes or rigid borescopes. The illumination is transmitted from the light source to the remote visual inspection instrument via a light guide cable, and then through the scope via an integral fiber bundle to the viewing tip. Explore our range of borescope light sources and light guide cables for long-lasting and bright illumination.

LED Light Source for Borescopes

Featuring a long-life white LED, the LG-LSED-RVI light source has about 100 times a longer lifespan than the ILK-7 halogen light source yet consumes about one-eighth of the power. This low consumption model meets most industrial needs.

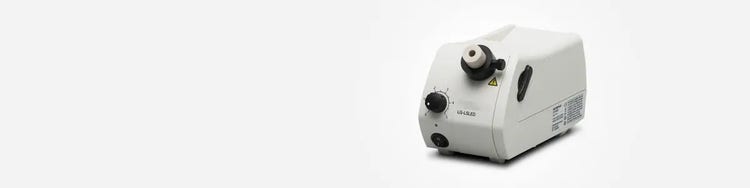

LED Light Source LG-LSLED-RVI
LG-LSLED-RVI
Voltage Input: AC 100–240 V, 50/60 Hz
Output: DC 24 V (with supplied AC adapter)
Power consumption 37W
Dimensions (W × H × D) 114 × 137 × 231 mm
Weight 2.45 kg (5.4 lb)
LED lifespan Approx. 60,000 hours

Light Guide Cable

3 mm MK Liquid

3 mm MK Liquid
Standard lengths*
1.8 m (5.9 ft)
2.5 m (8.2 ft)
5 m (16.4 ft)

3 mm Liquid

3 mm Liquid
Standard lengths*
1.8 m (5.9 ft)
2.5 m (8.2 ft)

5 mm Liquid

5 mm Liquid
Standard lengths*
1.8 m (5.9 ft)
2.5 m (8.2 ft)

5.5 mm Fiber

5.5 mm Fiber
Standard lengths*
1 m (3.3 ft)
2 m (6.6 ft)
3 m (9.8 ft)
5 m (16.4 ft)

*Other lengths available on request

3 mm MK Liquid
3 mm Liquid
5 mm Liquid
5.5 mm Fiber
Small Diameter Borescope
MK Mini-Modular
Series 5 (4 mm or 0.16 in.)
Series 5 (5.5 mm or 0.22 in.)
Series 5 (6 mm or 0.24 in.)
Series 5 (8 mm or 0.31 in.)
Series 5 (10 mm or 0.39 in.)

✓ = Optimal Brightness Option ● = Compatible △ = Not Recommended
