Ultra-compact image sensor for image transmission. High-resolution images are displayed on an LCD monitor.

The videoscope captures light reflected from a subject through an objective lens and directs it to the surface on the image sensor. The image sensor then converts the light into electrical signals and transfers this data to the videoscope control unit. The unit then sends video output to the monitor.

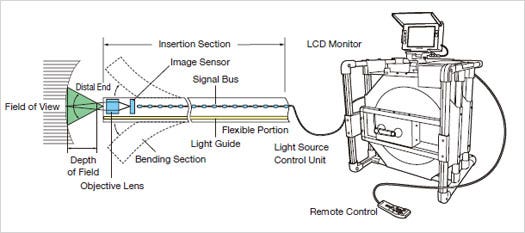

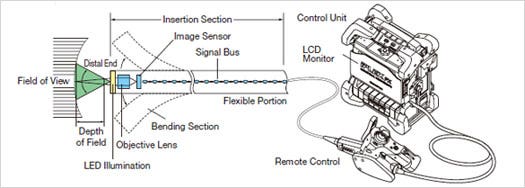

Structure Drawing:

• IPLEX FX/ IPLEX LX/ IPLEX LT/ IPLEX UltraLite/ IPLEX MX II

• IPLEX YS/ IPLEX TX

Features of Olympus Industrial Videoscopes:

• Setup-free, portable system providing simple operation at any site
• Bright and sharp image delivered to a high resolution LCD monitor
• Still image and movie recording functions ^*
• A range of optical tip adapters for optimal inspections
• Advanced stereo measurement modes for high-precision inspections. ^*
• Rugged body with a crush and abrasion resistant insertion tube
• Extensive scope lineup including ultra-thin, extra-long and working channel types.

*Some products do not have this function.

Magnification Ratio of IPLEX-series Monitors:
• IPLEX FX / IPLEX LX / IPLEX LT / IPLEX YS

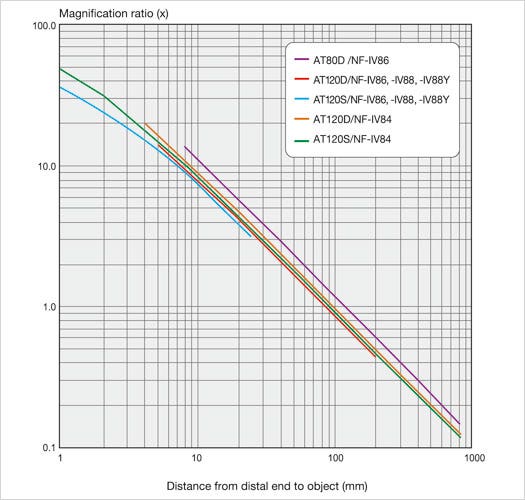

Far focus adapter

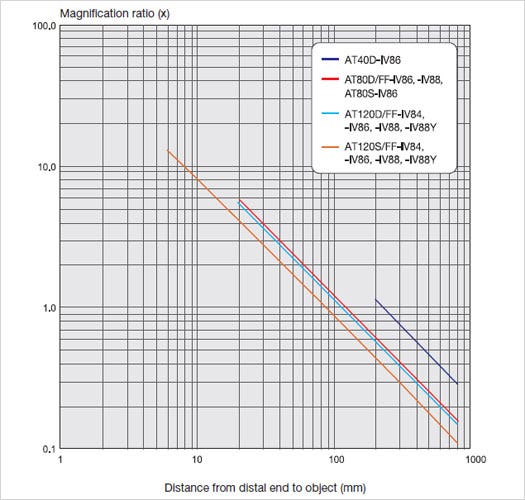

Near focus adapter

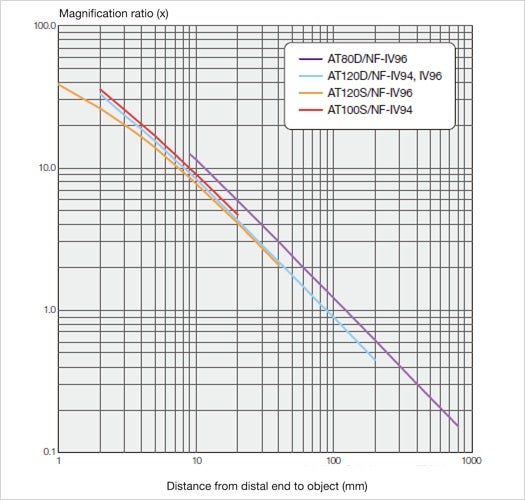

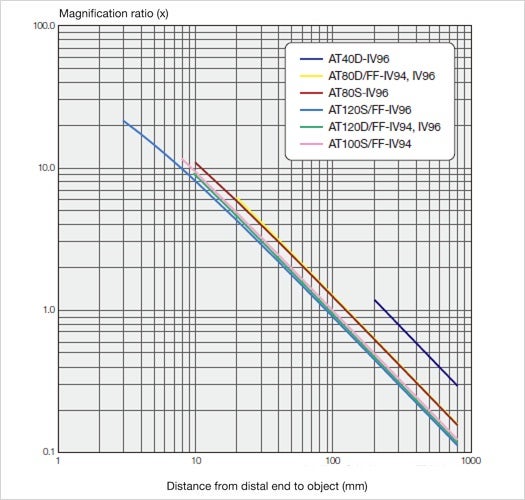

• IPLEX RX/ IPLEX RT
Far focus adapter

Near focus adapter


• IPLEX UltraLite
Far focus adapter

Near focus adapter

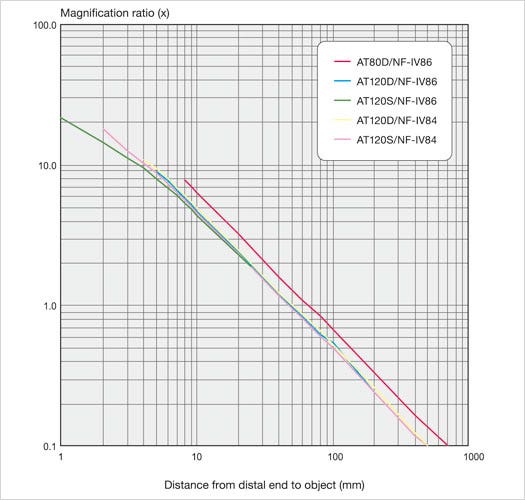

• IPLEX UltraLite

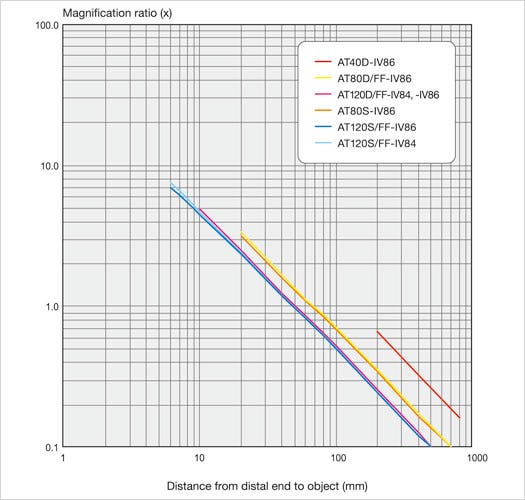

Far focus adapter

Near focus adapter

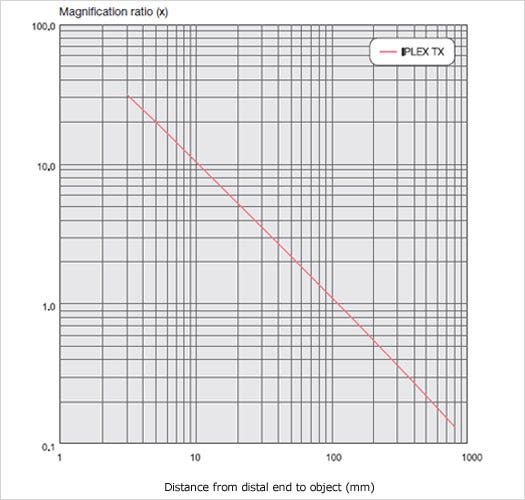

• IPLEX TX
