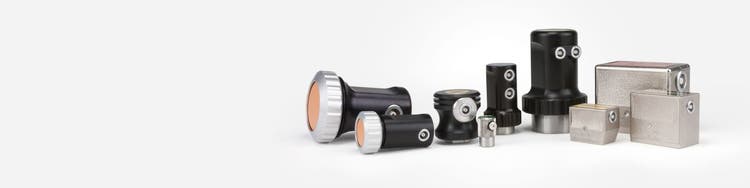

Las sondas estándar Atlas para Europa se dotan de conectores LEMO, diámetros de elementos en sistema métrico y niveles de frecuencia comunes, como 1, 2 y 4 MHz. Están configuradas para cumplir con los criterios normativos europeos y el resto del mundo.
Contact Transducers
Freq. MHz
Nominal Element Size mm
Transducer Part #
Near Field mm
Typical Bandwidth (%)
Connector
Connector Location
Outline #
2
10
CN2R-10
7.2
85
LEMO® 00
Right Angle
3
24
CN2R-24
45
85
LEMO 00
Right Angle
4
4
10
CN4R-10
15.6
85
LEMO 00
Right Angle
3
24
CN4R-24
91
85
LEMO 00
Right Angle
4
5
5
CN5R-5
5
60
Microdot
Right Angle
5
10
5
CN10R-5
10
60
Microdot
Right Angle
5
CN2R-24
DGS diagrams are currently not available for Contact Transducers.
3
4
5
Protected Face Transducers

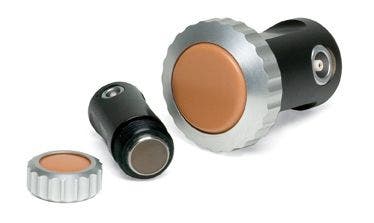

PF2R-10 (left image), PF4R-24 (right image)
Freq. MHz
Nominal Element Size mm
Transducer Part #
Near Field mm
Typical Bandwidth (%)
Connector
Connector Location
Outline #
1
24
PF1R-24
23
45
LEMO 1
Right Angle
12
24
PF1S-24
23
45
LEMO 1
Straight
11
2
10
PF2R-10
7.2
45
LEMO 00
Right Angle
13
24
PF2R-24
45
45
LEMO 1
Right Angle
12
24
PF2S-24
45
45
LEMO 1
Straight
11
4
10
PF4R-10
15.6
35
LEMO 00
Right Angle
13
24
PF4R-24
91
30
LEMO 1
Right Angle
12
24
PF4S-24
91
30
LEMO 1
Straight
11
DGS diagrams are included with all Protected Face Transducers.
11
12
13
Protective Membrane Accessories
PM-24-12 (left image), MRN-24 (right image)
Description
Fits With Nominal Element Size
Part Number
-
mm
-
Set of 12 Membranes
10
PM-10-12
Set of 12 Membranes
24
PM-24-12
Retaining Ring
10
MRN-10
Retaining Ring
24
MRN-24
Dual Element Transducers
Freq MHz
Nominal Element Size mm
Transducer Part #
Focus in Steel mm
Typical Bandwidth (%)
Connector
Connector Location
Outline #
2
7 x 18
DL2R-7X18
15
50
LEMO 00 (2)
Right Angle
2
7 x 18
DL2R-7X18-0
30
50
LEMO 00 (2)
Right Angle
2
11
DL2R-11
8
48
LEMO 00 (2)
Right Angle
1
4
3.5 x 10
DL4R-3.5X10
10
45
LEMO 00 (2)
Right Angle
1
6 x 20
DL4R-6X20
12
48
LEMO 00 (2)
Right Angle
2
6 x 20
DL4R-6X20-0
25
48
LEMO 00 (2)
Right Angle
2
DL2R-7X18 (left image), DL4R-3.5X10 (right image)
DGS diagrams are included with all Dual Element Transducers.
1
2

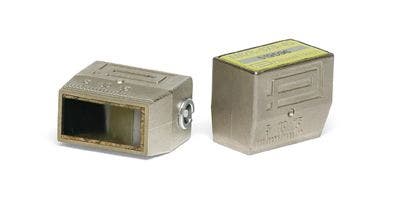

Integral Angle Beam Transducers
Freq. MHz
Nominal Element Size mm
Angle (°)
Near Field in steel mm
Transducer Part #
Typical Bandwidth
Connector (%)
Connector Location
Outline #
1
20 x 22
45
45
AM1R-20X22-45
55
LEMO® 01
Right Angle
9
20 x 22
60
45
AM1R-20X22-60
55
LEMO 01
Right Angle
9
20 x 22
70
45
AM1R-20X22-70
55
LEMO 01
Right Angle
9
2
8 x 9
45
15
AM2R-8X9-45
40
LEMO 00
Right Angle
6
8 x 9
45
15
AM2S-8X9-45
40
LEMO 00
Straight
7
8 x 9
60
15
AM2R-8X9-60
40
LEMO 00
Right Angle
6
8 x 9
60
15
AM2S-8X9-60
40
LEMO 00
Straight
7
8 x 9
70
15
AM2R-8X9-70
40
LEMO 00
Right Angle
6
8 x 9
70
15
AM2S-8X9-70
40
LEMO 00
Straight
7
14 x 14
45
39
AM2R-14X14-45
45
LEMO 00
Right Angle
8
14 x 14
60
39
AM2R-14X14-60
45
LEMO 00
Right Angle
8
14 x 14
70
39
AM2R-14X14-70
45
LEMO 00
Right Angle
8
20 x 22
38
90
AM2R-20X22-38
40
LEMO 01
Right Angle
9
20 x 22
45
90
AM2R-20X22-45
40
LEMO 01
Right Angle
9
20 x 22
60
90
AM2R-20X22-60
40
LEMO 01
Right Angle
9
20 x 22
70
90
AM2R-20X22-70
40
LEMO 01
Right Angle
9
4
8 x 9
38
30
AM4R-8X9-38
40
LEMO 00
Right Angle
6
8 x 9
45
30
AM4R-8X9-45
40
LEMO 00
Right Angle
6
8 x 9
45
30
AM4S-8X9-45
40
LEMO 00
Straight
7
8 x 9
60
30
AM4R-8X9-60
40
LEMO 00
Right Angle
6
8 x 9
60
30
AM4S-8X9-60
40
LEMO 00
Straight
7
8 x 9
70
30
AM4R-8X9-70
40
LEMO 00
Right Angle
6
8 x 9
70
30
AM4S-8X9-70
40
LEMO 00
Straight
7
20 x 22
45
180
AM4R-20X22-45
40
LEMO 01
Right Angle
9
20 x 22
60
180
AM4R-20X22-60
40
LEMO 01
Right Angle
9
20 x 22
70
180
AM4R-20X22-70
40
LEMO 01
Right Angle
9
5
14 x 14
45
88
AM5R-14X14-45
40
LEMO 00
Right Angle
7
14 x 14
60
88
AM5R-14X14-60
40
LEMO 00
Right Angle
7
14 x 14
70
88
AM5R-14X14-70
40
LEMO 00
Right Angle
7
6
3 x 4
45
N/A
AM6S-3X4-45
38
Microdot®
Straight
10
3 x 4
60
N/A
AM6S-3X4-60
38
Microdot
Straight
10
3 x 4
70
N/A
AM6S-3X4-70
38
Microdot
Straight
10
DGS diagrams are included with all Integral Angle Beam Transducers except AM6S-3x4-45, AM6S-3x4-60 and AM6S-3x4-45.
