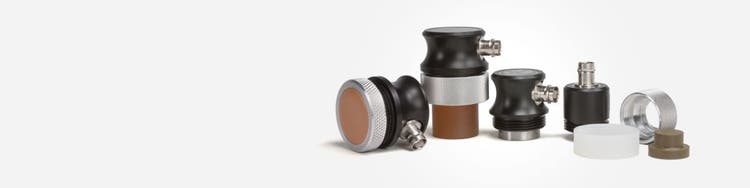

Son sondas monoelemento de contacto por onda longitudinal que pueden ser usadas con líneas de retardo, membranas o cubiertas protectoras antidesgaste.
Advantages:
- Provides versatility by offering removable delay line, protective wear cap, and protective membrane
- When the transducer is used alone (without any of the options), the epoxy wear face provides good acoustic impedance matching into plastics, many composites, and other low impedance materials
- Cases are threaded for easy attachment to the delay line, protective membrane, and wear cap options
Applications:
- Straight beam flaw detection
- Thickness gaging
- High temperature inspections
- Inspection of plates, billets, bars, and forgings
Standard Protected Face
- Comfort Fit sleeves are designed to be easily held and provide steady grip while wearing gloves
- Standard connector style Right Angle BNC (RB), may be available in Straight BNC (SB)
- Delay line, protective membrane, and wear cap options sold separately from the transducer
Transducer Dimensions (in inches)
| Nominal Element Size | (A) | (B) | (C) |
| 1.50 | 1.53 | 1.75 | 2.25 |
| 1.125 | 1.53 | 1.38 | 1.81 |
| 1.00 | 1.53 | 1.25 | 1.63 |
| 0.75 | 1.53 | 0.99 | 1.41 |
| 0.50 | 1.53 | 0.63 | 1.19 |
| Frequency (MHZ) |
Nominal Element Size | ACCUSCAN-S | CENTRASCAN | VIDEOSCAN | |
| in | mm | Part/ Item No | Part/ Item No | Part/ Item No | |
| 0.5 | 1 |
A601S-RB U8440001 |
V601-RB U8442001 |
||
| 0.5 | 1.5 |
V689-RB U8442029 |
|||
| 1 | 0.5 |
A603S-RB U8440005 |
C603-RB U8441002 |
V603-RB U8442005 |
|
| 1 | 0.75 |
V614-RB U8442021 |
|||
| 1 | 1 |
A602S-RB U8440003 |
C602-RB U8441001 |
V602-RB U8442003 |
|
| 2.25 | 0.5 |
A606S-RB U8440011 |
C606-RB U8441004 |
V606-RB U8442011 |
|
| 2.25 | 0.75 |
A605S-RB U8440009 |
V605-RB U8442009 |
||
| 2.25 | 1 |
A604S-RB U8440007 |
C604-RB U8441003 |
V604-RB U8442007 |
|
| 2.25 | 1.5 |
V695-RB U8442037 |
|||
| 3.5 | 0.5 |
A682S-RB U8440027 |
V682-RB U8442027 |
||
| 3.5 | 0.75 |
A681S-RB U8440025 |
|||
| 3.5 | 1 |
A680S-RB U8440023 |
V680-RB U8442023 |
||
| 5 | 0.5 |
A609S-RB U8440017 |
C609-RB U8441006 |
V609-RB U8442017 |
|
| 5 | 0.75 |
A608S-RB U8440015 |
V608-RB U8442015 |
||
| 5 | 1 |
A607S-RB U8440013 |
V607-RB U8442013 |
||
| 10 | 0.5 |
A611S-RB U8440019 |
V611-RB U8442019 |
||
High Temperature Delay Line Options
- Allows for intermittent contact with hot surfaces*
- Improves near surface resolution
- Contouring of delay lines provides better coupling on curved surfaces
- Warm temperature delay lines (WTD) can be used for room temperature applications
| Nominal Element Size | Delay Line Retaining Ring |
350°F max. (175°C) |
500°F max. (260°C) |
900°F max. (480°C) |
|
| inches | mm | ||||
| 1.00 | DRN-3 | WTD-3-x | HTD-3-x | VHTD-3-x | |
| 0.75 | DRN-4 | WTD-4-x | HTD-4-x | VHTD-4-x | |
| 0.50 | DRN-5 | WTD-5-x | HTD-5-x | VHTD-5-x | |
*Recommended usage cycle is ten seconds maximum contact followed by one minute of air cooling. However, the transducer itself should not be heated above 122°F (50°C).
X = standard delay line lengths, available in 1/2" (13 mm), 1" (25 mm), 1-1/2" (38 mm). Specify at time of ordering.
Note: For the delay lines above, a room temperature material longitudinal wave velocity of 0.100 in/µsec ±0.005 in/µsec may be used as an approximation for basic calculations. This value should not be used for engineering design calculations.
Protective Membrane Option
- Improves coupling on rough or uneven surfaces
- Dry couple to smooth, clean surfaces
| Nominal Element Size | Membranes Only* | Membrane Retaining Ring | Kits | ||
| inches | mm | pkg of 12 | pkg of 60 | ||
| 1.50 | PM-1-12 | MRN-1 | PMK-1 | ||
| 1.125 | PM-2-12 | MRN-2 | PMK-2 | ||
| 1.00 | PM-3-12 | MRN-3 | PMK-3 | ||
| 0.75 | PM-4-12 | MRN-4 | PMK-4 | ||
| 0.50 | PM-5-12 | MRN-5 | PMK-5 | ||
*Available in 36" x 36" x 1/32" sheets. Order part number NPD-665-3101.
† Kit includes 12 Membranes, 1 ring, C-2 couplant
Protective Wear Cap Option
• The nylon wear cap provides an economical solution in applications requiring scanning or scrubbing of rough surfaces
Element Size
