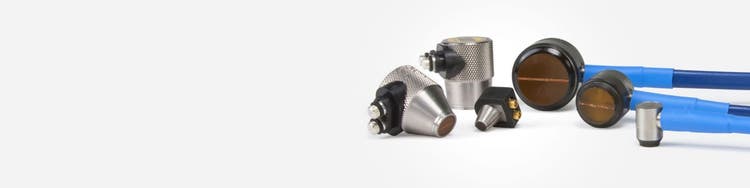

Sondas duales de medición
Sondas duales de medición
Solicite una cotización o compre una sonda mediante la selección del número de artículo.
Item Number
Part Code
Frequency
(MHz)
(MHz)
Connector Type
Connector Location
Range in Steel (mm)
Range in Steel (in)
Temperature Range °F
Temperature Range °C
Tip Diameter (mm)
Tip Diameter (in)
U8450017
D797-SM
2
Microdot
Straight
3.5 - 635
0.150 - 25
-5 - 752
-20 - 400
22.9
0.9
U8450016
D797
2
Potted
Right Angle
3.5 - 635
0.150 - 25
-5 - 752
-20 - 400
22.9
0.9
U8454038
D7910
5
Potted
Right Angle
1.00 - 500.00
0.040 - 20.000
32 -122
0 - 50
12.7
0.5
U8450021
D799
5
Potted
Right Angle
1.0 - 508
0.040 - 20
-5 - 300
-20 - 150
11
0.434
U8450025
D7906-RM
5
Microdot
Right Angle
1.0 - 50
0.040 - 2.0
32 - 122
0 - 50
11
0.434
U8450005
D7906-SM
5
Microdot
Straight
1.0 - 50
0.040 - 2.0
32 - 122
0 - 50
11
0.434
U8450011
D791-RM
5
Microdot
Right Angle
1.0 - 508
0.040 - 20
-5 - 752
-20 - 400
11
0.434
U8450007
D790-RL
5
LEMO
Right Angle
1.0 - 508
0.040 - 20
-5 - 932
-20 - 500
11
0.434
U8450008
D790-SL
5
LEMO
Straight
1.0 - 508
0.040 - 20
-5 - 932
-20 - 500
11
0.434
U8450009
D790-SM
5
Microdot
Straight
1.0 - 508
0.040 - 20
-5 - 932
-20 - 500
11
0.434
U8450002
D790
5
Potted
Straight
1.0 - 508
0.040 - 20
-5 - 932
-20 - 500
11
0.434
U8450010
D791
5
Potted
Right Angle
1.0 - 508
0.040 - 20
-5 - 932
-20 - 500
11
0.434
U8620225
MTD705
5
Lepra/Con
Right Angle
1.0 - 19
0.040 - 0.75
32 - 122
0 - 50
5.1
0.2
U8450014
D794
5
Potted
Straight
0.75 - 50
0.030 - 2
32 - 122
0 - 50
7.2
0.283
U8450006
D7908
7.5
Potted
Right Angle
1.0 - 37
0.040 - 1.5
32 - 122
0 - 50
7.2
0.283
U8450018
D798
7.5
Potted
Right Angle
0.71 - 100
0.028 - 4
-5 - 300
-20 - 150
7.2
0.283
U8450020
D798-SM
7.5
Microdot
Straight
0.71 - 100
0.028 - 4
-5 - 300
-20 - 150
7.2
0.283
U8450019
D798-LF
7.5
Potted
Right Angle
0.71 - 100
0.028 - 4
-5 - 300
-20 - 150
8.9
0.35
Sondas monoelemento para medir la corrosión
Sondas monoelemento para medir la corrosión
Para usar con los medidores 38DL PLUS y 45MG
* Opción de software para óxido/magnetita disponible solamente para el medidor 38DL PLUS.
**La opción E110-SP no está disponible para el medidor 45MG.
†Adaptador requerido para E110 (N.º de pieza 1/2XA/E110).
N.º de pieza de sonda
N.º de pieza
Frec.
Diámetro de la punta
Tipo de sonda
Conector
Alcance en acero
Rango de temperatura
MHz
pulg.
mm
Tipo
Área
pulg.
mm
°F
°C
V260-SM
U8411019
15
0,080
2
Sonopen®
Microdot®
Recta
0.02 - 0.400
0.5 - 10
De 32 a 122
De 0 a 50
V260-RM
U8411018
15
0,080
2
Sonopen
Microdot
Ángulo de 90°
0.02 - 0.400
0.5 - 10
De 32 a 122
De 0 a 50
V260-45
U8411017
15
0,080
2
Sonopen
Microdot
Ángulo de 45°
0.02 - 0.400
0.5 - 10
De 32 a 122
De 0 a 50
M2017*
U8415002
20
0,250
6,35
Magnetita u óxido interno
Microdot
Ángulo de 90°
Acero:
0.020 - 0.50
Óxido:
0.010 - 0.050
0.020 - 0.50
Óxido:
0.010 - 0.050
Acero:
0.5 - 12
Óxido:
0.25 - 1.25
0.5 - 12
Óxido:
0.25 - 1.25
De 32 a 122
De 0 a 50
M2091*
U8415018
20
0,250
6,35
Onda transversal en línea de retardo reemplazable
Microdot
Ángulo de 90°
Acero:
0.020 - 0.50
Óxido:
0.006 - 0.050
0.020 - 0.50
Óxido:
0.006 - 0.050
Acero:
0.5 - 12
Óxido:
0.150 - 1.25
0.5 - 12
Óxido:
0.150 - 1.25
De 32 a 122
De 0 a 50
E110-SB†**
U8471001
-
1,25
28,5
EMAT
BNC
Recta
0.080 - 5
2.0 - 125
De 32 a 176
De 0 a 80
Cables
Cables duales para medidores
Número de pieza del cable
Código de pieza
Para usar con
Longitud
Tipo de cable
Tipo de enchufe
.
.
.
pies
metros
LCMD-316-5B
U8800353
D790-SM
5,0
1,5
Estándar
Recta
RLCMD-316-5B
U8800367
D790-SM
5,0
1,5
Estándar
Ángulo de 90°
LCMD-178-5B SSA
U8800352
D790-SM
5,0
1,5
Reforzado con blindaje
Recto
RLCMD-178-5B SSA
U8800366
D790-SM
5,0
1,5
Reforzado
Ángulo de 90°
LCLD-316-5G
U8800330
D790-RL
5,0
1,5
Estándar
Recta
LCLD-316-5H
U8800331
D790-SL
5,0
1,5
Estándar
Recta
LCMD-316-5C
U8800354
D791-RM
5,0
1,5
Estándar
Recta
LCMD-316-5D
U8800355
D797-SM
5,0
1,5
Estándar
Recta
LCMD-316-5J
U8800357
D798-SM
5,0
1,5
Estándar
Recta
LCMD-316-5L
U8800358
D7906-SM
5,0
1,5
Estándar
Recta
LCLPD-78-5
U8800332
MTD705
5,0
1,5
Estándar
Recta
LCM-74-4
U8800348
V260-SM, V260-RM, V260-45, M2017
4,0
1,2
Estándar
-
LCM-188-4 SSA
U8800342
V260-SM, V260-RM, V260-45, M2017
4,0
1,2
Reforzado
-
LCB-74-4
U8800320
E110-SB
4,0
1,2
Estándar
-
