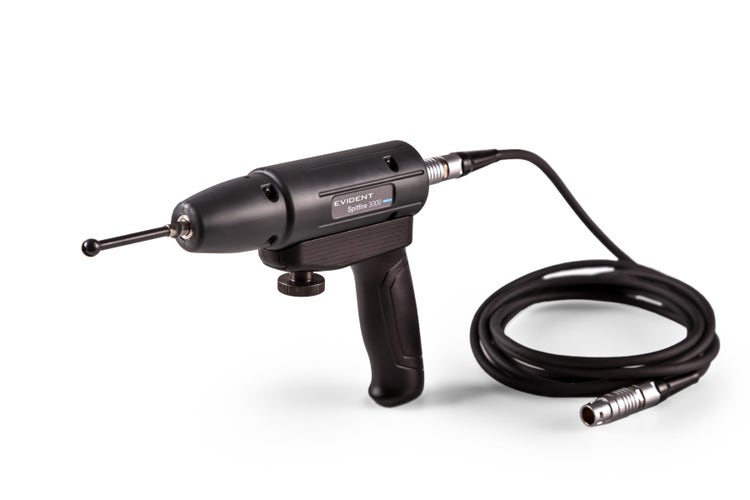

Scanner Spitfire 3000
Lo scanner rotante per fori di bulloni Spitfire 3000™ permette un controllo di tipo portatile o a mani libere per l'ispezione di fissaggi, fori di fissaggi e fori di bulloni mediante i nostri rilevatori di difetti eddy current NORTEC™. È possibile rilevare i difetti in modo rapido con i controlli eddy current a alta velocità (fino a 3000 rpm) e ad alta frequenza (fino a 6 MHz) Un'impugnatura ergonomica permette un'operatività confortevole prolungata su aerei, oltre che per altri tipi di applicazioni.
Spitfire 3000 Scanner
Specifications
Speed Range
600 to 3000 rpm
Speed Control
Instrument controlled
Frequency Range
200 kHz to 6 MHz
Probe Connector
4-pin LEMO or 4-pin Fischer with O-rings
Probe Types
Reflection differential
Signal Coupling
Rotary transformer
Stall Torque
.0421 kg-mm (5.96 oz-in.) on high torque at 3000 rpm
Torque Selection
Switchable among three ranges (low, medium,
and high)
and high)
Mounting
Ergonomic handgrip; removable rail system for mounted applications
Orientation
No physical restrictions
Alarm
LED indicator located at the rear and top of the case
Cable Connector
16-pin LEMO
Size(L × D):
152 mm × 43 mm (6 in. × 1.7 in.)
Weight
0.45 kg (1 lb)
Part Number
Q7500187 (LEMO); Q7500203 (Fischer)
