Vanta Elementシリーズ
Vanta Elementハンドヘルド蛍光X線（XRF）分析計シリーズは、高速性、堅牢性、および接続性を、費用効果の高い2つのモデルで提供します。Vanta Element分析計は手頃な価格で合金判定が可能です。Vanta Element-S分析計は軽元素の検出機能が搭載され、軽元素分析をお手頃な価格で追加することができます。いずれのモデルもさまざまなスキルレベルのユーザー向けに扱いやすく、現代的で使いやすい操作性を備えています。材料および合金品種の判定を数秒で実行でき、スクラップリサイクルや金属製造用途の合金比較も簡単です。
Vanta Element Handheld XRF Analyzer Series
Overview

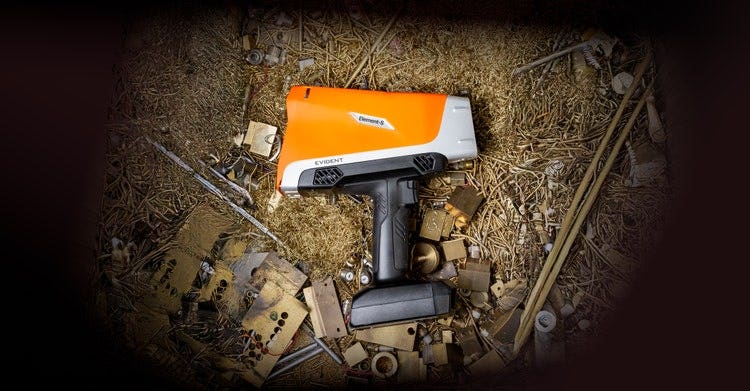

Vanta Element® Handheld XRF Analyzer Series
Handle It with Confidence
Get alloy chemistry and grade ID in seconds with affordable XRF testing. The Vanta Element handheld XRF analyzer series provides elemental analysis for fast alloy identification and sorting in two cost-effective models:

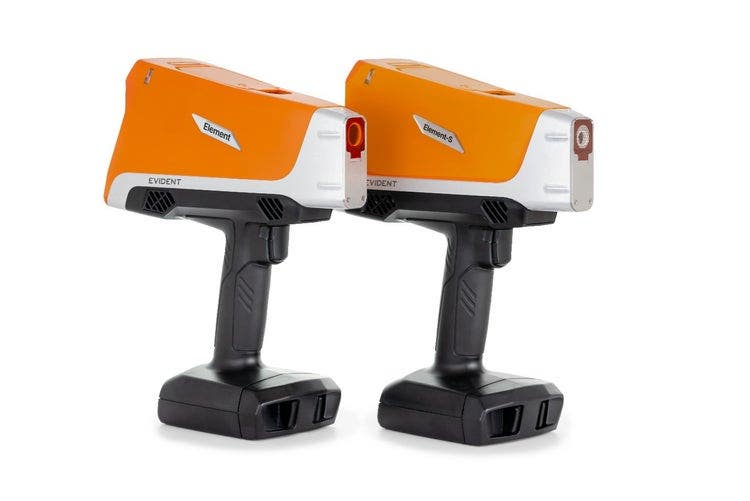

- Vanta Element analyzer for fast, basic alloy ID
- Vanta Element-S analyzer adds light element detection of magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P)
Both models feature fast grade ID and clear on-screen grade comparison, giving you the confidence to speed up metal testing for scrap sorting, metal manufacturing, and precious metals analysis. Easy to use and easy to learn, the smartphone-like interface streamlines user training and the sorting process.
Uncompromising Value and Efficiency
Our next-generation Vanta Element models are cost-effective and engineered for efficiency, with analysis that is up to two times faster than previous models. Get maximum value with no compromise on performance.
| Model | Vanta Element Model | Vanta Element-S Model |
| Use | Affordable alloy ID | Affordable light element detection |
| Best for | Basic analyses | Analyzing magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), and phosphorus (P) |
| Detector | Silicon drift detector | Faster silicon drift detector |
| Window | Thick Kapton window | Prolene window with Kapton mesh support |
| Excitation source | 2-watt X-ray tube with 35 kV tungsten (W) anode | 4-watt X-ray tube with 50kV silver (Ag) anode |
| Element addition avaliable | Yes | Yes |
Speed and Precision That Get the Job Done
The Vanta Element series brings exceptional accuracy and speed to the alloy and metal analysis that sorters, manufacturers, and inspectors rely on in their work.
- Fast and accurate Vanta® electronics
- Axon Technology stability and count rate
- Silicon drift detector for a short testing time and improved element identification
Convenient Ways to Save and Share
With convenient file access, integrated data management, and modern connectivity features, the Vanta Element series saves you time from results to reporting.
- Direct export to a USB drive
- 1 GB microSD card for storing results
- Wireless data transfer to a network folder (optional)
- Review and share results on a PC, tablet, or smartphone
- Use new features instantly with automatic software updates
- Seamless data management in the Evident Connect cloud
Built to Last, Proven to Perform
Built for greater uptime in demanding environments, the Vanta Element series delivers a low cost of ownership. Long-lasting confidence is built into every Vanta Element model.
- IP54 rated for protection against dust and moisture
- Drop tested (MIL-STD-810G) to protect against falls and reduce the need for costly repairs
- Rated for continuous testing from −10 °C to 45 °C (14 °F to 113 °F)
- Balanced, comfortable handle with a secure grip
- Stainless steel faceplate for wear protection
- Easy, toolless window replacement
- Peace of mind with a standard three-year warranty

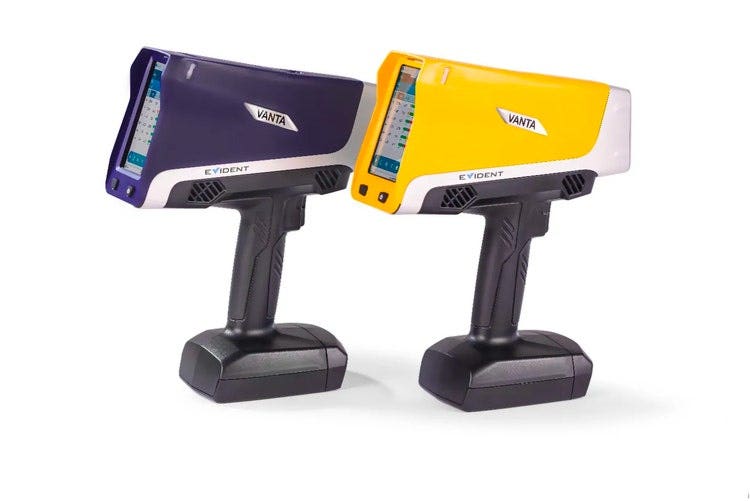

Learn More About the Vanta Series
The Vanta Max model offers the series’ highest analytical capabilities for robust applications, including mineral exploration, academic research, soil testing, and environmental analysis. The Vanta Core model combines value with speed, low limits of detection (LODs), and a wide elemental range, making it the standard choice for fast alloy identification.
Specifications
Vanta Specifications
| Vanta Element Model | Vanta Element-S Model | |
| Dimensions (W x H x D) | 10.4 × 29.6 × 24.1 cm (4.1 × 11.6 × 9.5 in.) | |
| Weight | 1.71 kg (3.77 lb) with battery, 1.48 kg (3.26 lb) without battery | 1.84 kg (4 lb) with battery, 1.61 kg (3.55 lb) without battery |
| Excitation Source | 2-watt X-ray tube with 35 kV tungsten anode | 4-watt X-ray tube with 50kV silver (Ag) anode |
| Primary Beam Filtration | Fixed aluminum filter | 4-position filter wheel |
| Detector | Entry-level silicon drift detector (SDD) with a high-sensitivity graphene window | SDD with a high-sensitivity graphene window |
| Barometer | No | Yes |
| Power | Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max | |
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control | |
| Operating Environment | Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle Humidity: 10% to 90% relative humidity noncondensing |
|
| Drop Test | Military Standard 810-G 4-foot (1.2 m) drop test | |
| IP Rating and Detector Shutter | IP54: dust protected and protected against water splashing from all directions | |
| Operating System |
Linux Cloud enabled with user fleet manager capability |
|
| Data Storage | microSD slot with removable 1 GB Industrial SD card included | |
| USB |
Two USB 2.0 type A host ports for accessories such as Wi-Fi, Bluetooth, and USB flash drives. One USB 2.0 type mini-B port for connection to computer. |
|
| Wi-Fi® | Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor | |
| Bluetooth® | Supports Bluetooth with an optional USB adapter | |
| Warranty | Three-year warranty | |
| Optional Accessories | Field Stand, Soil Foot, and Holster | |
*High-temperature performance may vary due to electrical component availability.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Evident Corporation is under license.
Accessories

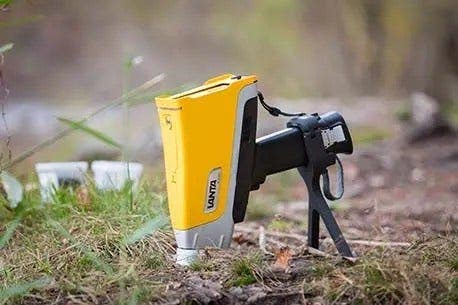

Vanta Soil Foot
The Vanta Soil Foot provides a stable three-point support for the Vanta analyzer. This accessory facilitates hands-free analysis, making it convenient when longer test times are required.

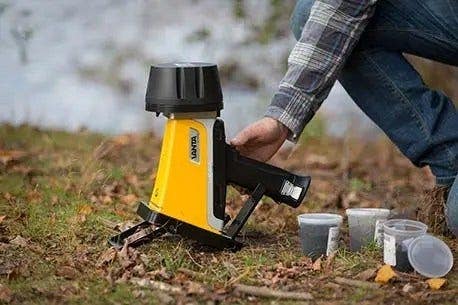

Vanta Field Stand
When testing small items, such as samples in cups or bags, the Vanta Field Stand offers a lightweight, mobile test stand and shielded sample chamber. The Field Stand is easy to pack and convenient to use when you are away from your office.

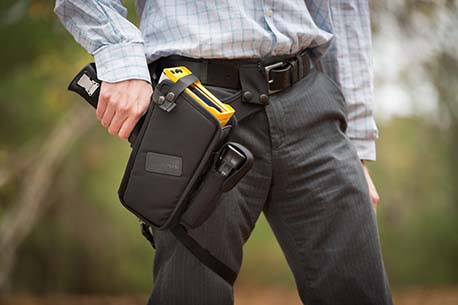

Vanta Holster
Keep your Vanta analyzer safe and secure and within easy reach with the Vanta Holster. The Holster has a strap with a fastener to secure the instrument, MOLLE/PALS webbing for additional attachment options, and brass shielding.

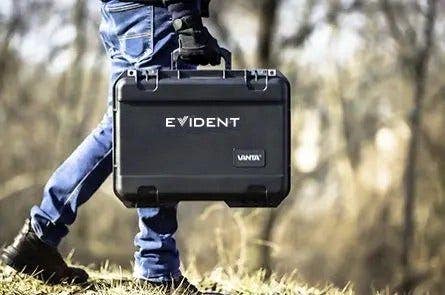

Vanta Transport Case
Rugged, hard-shell case to securely transport your Vanta handheld XRF analyzer.
