Right Angle Surface Probes

두께 및 결함 검사 솔루션

문의하기

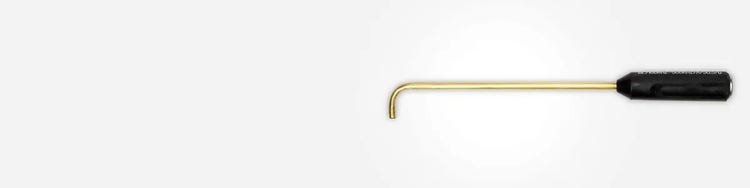

The 90-degree design of Right Angle Surface probes enables inspection of areas with restricted access. Belonging to the family of detachable stainless-steel shaft surface probes, right angle probes feature small coils and a small-diameter housing built for higher frequencies. They are usually used for surface breaking crack detection.

Advantages

  • Suitable for small defect detection.
  • Reaches areas inaccessible to standard probes.
  • Drop helps to inspect around fasteners.
  • Available with Powerlink™ technology.
  • Wide selection of lengths and drops.
  • Available with bridge or reflection configuration.

Applications

  • Through paint inspection of aircraft rivets.
  • Aircraft structure inspection, aircraft unit inspection, and aircraft engine inspection.
  • Through paint detection of stress corrosion cracking in stainless and carbon steel.
  • Surface crack inspection of manufacturing and transportation equipment.

These probes are compatible with the NORTEC 600

The lightweight NORTEC 600 series eddy current flaw detectors incorporate a full range of features, including automatic internal balancing of the coils and a VGA output connector. Various models also include features such as conductivity and coating thickness measurement, rotating scanner compatibility, and dual frequency operation.

Absolute Bridge

Absolute bridge type probes

  • Internal reference coils ensure the best match to the test coil when using a Triax (Fischer™*) or Powerlink™ connector.
  • Shielded coil for higher resolution.
  • Detect cracks in all directions.
  • Probe-type commonly used worldwide.
  • Cost-effective option.

Olympus absolute bridge type probes give a clean and strong signal as shown.

* All brands are trademarks or registered trademarks of their respective owners and third-party entities.

Rotating Scanner Probe

Reflection Absolute

Reflection type probes

Also known as send-receive or driver-pickup probes

  • Provides a similar response to the absolute bridge probe.
  • Available with stacked or concentric driver and pickup coils.
  • Enables crack detection in all directions.
  • Withstands variations in temperature.
  • Operates over a wide frequency range.

Olympus reflection absolute type probes give a clean and strong signal as shown.

Rotating Scanner Probe
Type
Coil
Length
Drop
Frequency
Shaft Size
Connector
Part ID
Item Number
Cable ID
Item Number
Right Angle
Reflection Absolute
6 in. (152.4 mm)
0.03 in. (0.76 mm)
50 kHz to 500 kHz
0.125 in. (3.17 mm)
Triax Fischer
9216204.00
U8623206
SPO-6687
U8800538
Right Angle
Reflection Absolute
6 in. (152.4 mm)
0.5 in. (12.7 mm)
100 kHz to 500 kHz
0.125 in. (3.17 mm)
Triax Fischer
9216216.00
U8623214
SPO-6687
U8800538
Right Angle
Reflection Absolute
6 in. (152.4 mm)
0.5 in. (12.7 mm)
50 kHz to 500 kHz
0.125 in. (3.17 mm)
Powerlink™
9222215.00
U8616103
9122083
U8800073
Right Angle
Reflection Absolute
6 in. (152.4 mm)
0.03 in. (0.76 mm)
50 kHz to 500 kHz
0.125 in. (3.17 mm)
Powerlink™
9222477.00
U8629114
9122083
U8800073
Right Angle
Reflection Absolute
11 in. (279.4 mm)
0.5 in. (12.7 mm)
50 kHz to 500 kHz
0.125 in. (3.17 mm)
Triax Fischer
9231829
U8250027
SPO-6687
U8800538
Right Angle
Reflection Absolute
8 in. (203.2 mm)
0.5 in. (12.7 mm)
50 kHz to 500 kHz
0.125 in. (3.17 mm)
Triax Fischer
9232237
U8629816
SPO-6687
U8800538

Bridge Differential

Bridge differential probe

  • Suitable for small defects, such as fatigue cracking.
  • Directional sensitivity.

Olympus bridge differential type probes give a clean and strong signal as shown.

Reflection Differential
Type
Coil
Length
Drop
Frequency
Shaft Size
Connector
Part ID
Item Number
Cable ID
Item Number
Right Angle
Bridge Differential
4 in. (101.6 mm)
0.2 in. (5.08 mm)
100 kHz to 500 kHz
0.125 in. (3.17 mm)
Powerlink™
9231821.00
U8610681
9122083
U8800073
