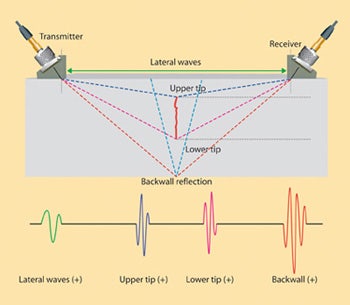

TOFD transducers and wedges generate refracted longitudinal waves in steel for use in applications involving crack sizing by means of the Time of Flight Diffraction technique.
Advantages
Our time-of-flight diffraction transducers are highly damped longitudinal wave probes that offer excellent resolution in challenging TOFD applications. These highly sensitive composite element broadband transducers are available in frequencies from 2.25 MHz to 15 MHz and in sizes from 3 mm (0.25") to 12 mm (0.50"). They are for use with specialized TOFD wedges designed to produce refracted longitudinal waves in steel.
Miniature Screw-in TOFD Transducers
Transducer Dimensions (in inches)
Case Type
(A)
(B)
(C)
Thread Pitch
ST1
0.44
0.55
0.22
3/8 - 32
ST2
0.71
0.685
0.257
11/16 - 24
Transducer Dimensions (in inches)
Case Type
(A)
(B)
(C)
Thread Pitch
ST1
0.44
0.55
0.22
3/8 - 32
ST2
0.71
0.685
0.257
11/16 - 24

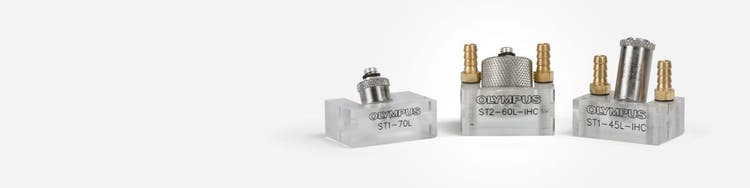

Miniature TOFD Screw-in Wedges
Frequency
Nominal Element Size
CENTRASCAN
VIDEOSCAN
(MHz)
in.
mm
Part /
Item No.
Item No.
Part /
Item No.
Item No.
2.25
0.25
6
C542-SM/U8435019
-
2.25
0.375
10
C566-SM/U8435030
-
2.25
0.5
13
C540-SM/U8435017
-
5
0.125
3
C567-SM/U8435031
-
5
0.25
6
C543-SM/U8435020
-
5
0.375
10
C568-SM/U8435032
-
5
0.5
13
C541-SM/U8435018
-
10
0.125
3
C563-SM/U8435028
-
10
0.25
6
C544-SM/U8435021
-
15
0.125
3
-
V564-SM/U8474029
