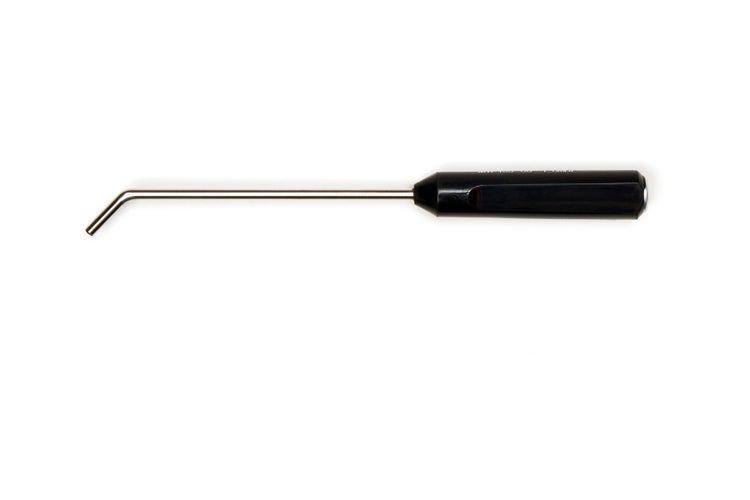

축각 표면 프로브

이 분리형 스테인리스 스틸 샤프트 프로브의 작은 코일과 고주파 범위는 표면 파손 균열을 감지하는 데 이상적입니다. 각진 디자인으로 접근이 제한된 구역을 검사할 수 있습니다.

Angle Shaft Surface Probes Thickness and Flaw Inspection Solutions

The small coils and high frequency range of these detachable stainless-steel shaft probes make them ideal for the detection of surface breaking cracks. Their angled design enables the inspection of areas with restricted access.

Advantages

Absolute Bridge

Absolute bridge type probes

  • Internal reference coils ensure the best match to the test coil when using a Triax (Fischer™*) or Powerlink™ connector.
  • Shielded coil for higher resolution.
  • Detect cracks in all directions.
  • Probe-type commonly used worldwide.
  • Cost-effective option.

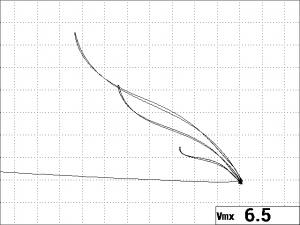

Olympus absolute bridge type probes give a clean and strong signal as shown.

* All brands are trademarks or registered trademarks of their respective owners and third-party entities.

Rotating Scanner Probe

Reflection Absolute

Reflection type probes

Also known as send-receive or driver-pickup

  • Provides a similar response to the absolute bridge probe.
  • Available with stacked or concentric driver and pickup coils.
  • Enables crack detection in all directions.
  • Withstand variations in temperature.
  • Operate over a wide frequency range.

Olympus reflection absolute type probes give a clean and strong signal as shown.

Rotating Scanner Probe
Type
Coil
Angle
Length
Drop
Frequency
Shaft Size
Connector
Part ID
Item Number
Cable ID
Item Number
Angle Shaft
Reflection Absolute
45°
6 in. (152.4 mm)
0.5 in. (12.7 mm)
50 kHz to 500 kHz
0.125 in. (3.17 mm)
Powerlink™
9230999.00
U8629476
9122083
U8800073
Angle Shaft
Reflection Absolute
30°
6 in. (152.4 mm)
0.5 in. (12.7 mm)
50 kHz to 500 kHz
0.125 in. (3.17 mm)
Triax Fisher
9231965
U8629480
SPO-6687
U8800538
