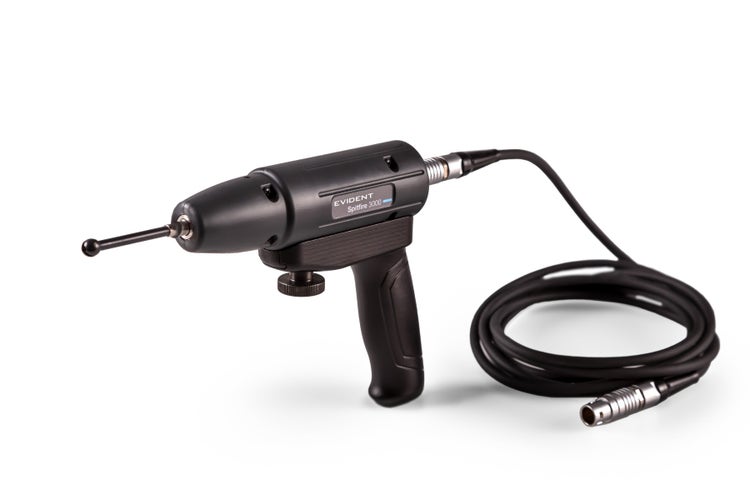

Spitfire 3000 스캐너
Spitfire 3000™ 회전식 볼트홀 스캐너는 NORTEC™ 와전류 결함 감지기를 사용하여 파스너, 보어, 볼트홀을 검사할 수 있도록 휴대용 또는 핸즈프리 검사 기능을 제공합니다. 빠른 속도(최대 3000rpm)와 높은 주파수(최대 6MHz) 와전류 테스트를 통해 결함을 빠르게 찾을 수 있습니다. 인체공학적 손잡이 덕분에 항공기 및 기타 응용 분야에서 오랫동안 사용해도 편안합니다.
Spitfire 3000 Scanner
Specifications
Speed Range
600 to 3000 rpm
Speed Control
Instrument controlled
Frequency Range
200 kHz to 6 MHz
Probe Connector
4-pin LEMO or 4-pin Fischer with O-rings
Probe Types
Reflection differential
Signal Coupling
Rotary transformer
Stall Torque
.0421 kg-mm (5.96 oz-in.) on high torque at 3000 rpm
Torque Selection
Switchable among three ranges (low, medium,
and high)
and high)
Mounting
Ergonomic handgrip; removable rail system for mounted applications
Orientation
No physical restrictions
Alarm
LED indicator located at the rear and top of the case
Cable Connector
16-pin LEMO
Size(L × D):
152 mm × 43 mm (6 in. × 1.7 in.)
Weight
0.45 kg (1 lb)
Part Number
Q7500187 (LEMO); Q7500203 (Fischer)
