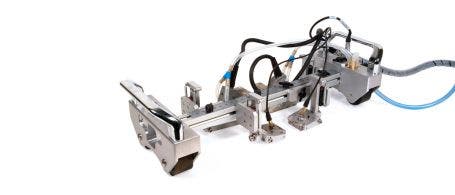

HSMT-Compact Scanner

The HSMT-Compact is a manual one-axis encoded scanner. In particular, it is light and small, and also versatile. It can be used (with up to 4 probes) on plates and for circumferential scans on pipes as small as 4.5 in. OD pipes.

개요

The HSMT-Compact is a light, small, and versatile manual one-axis encoded scanner. It can be used -with up to four probes- on plates and for circumferential scans on pipes as small as 4 in. schedule (4.5 in. OD). The scanner length can be changed and the frame can extend outside the limit of the wheels, providing a configuration that is well suited for hard-to-reach places such as pipe-to-component welds.

The HSMT-Compact completes the HSMT family. While the HSMT-Flex and HSMT-X03 are designed for construction welding inspection, the HSMT-Compact is designed for maintenance weld inspection.

HSMT-Compact Kit Includes:

• Scanner frame with handles
• Additional frame bars: 400 mm (16 in.) and 600 mm (24 in.)
• Four magnetic, plastic-covered wheels
• Waterproof, spring-loaded wheel encoder
• OmniScan-compatible encoder with 5 m cable
• Four 90° probe holder brackets
• Four spring-loaded arms (SLA)
• Four TOFD/PE yokes (31.75 mm)
• Two phased array yokes (40 mm)
• Irrigation tubing and accessories
• Two metric/U.S. rulers
• Hard carrying case

Note: Probes and wedges are not included in the basic kit.

Configurations

A typical configuration includes two phased array probes and a pair of TOFD probes, to comply with ASME code.

Other configurations include:

• 1 pair of TOFD probes
• 2 pairs of TOFD probes
• 2 PA probes

Options

Manual Water Pump Kit

Water pump is compatible with scanner umbilical cables. It can also be used with provided tubing. Includes tank, tubing, and Y-splitters (part number: OPIX105).

TRPP 5810 Remote Pulser/ Preamplifier

Four-channel 40 dB Remote Pulser/Preamplifier with LEMO® connectors to amplify probe and instrument output signals. Using the TRPP 5810 and composite probes enhances the S/N ratio in TOFD inspections.

Features

• Circumferential scan on 4 in. schedule pipes (4.5 in. OD), or greater
• Magnetic wheels hold the unit against a ferromagnetic inspection surface.
• Light aluminum frame with customizable length
• Frame design allows probes to be positioned outside the wheels.
• Support up to 4 probes on pipes or flat surfaces
• Fully adjustable probe positioning
• Independently spring-loaded probe holders
• Waterproof, spring-loaded encoder
• Removable handles
• Eyelet for umbilical or lanyard attachment
• Water manifold integrated into the scanner frame
• Metric/U.S. rulers on the scanner for easy probe separation measurement
