GLIDER 스캐너
GLIDER 스캐너는 약간 구부러지거나 평평한 복합 표면의 수동 검사를 위한 2축(X-Y) 인코딩 스캐너입니다.흡입 컵으로 고정되는 스캐너는 래스터 스캐닝에 매우 적합합니다.기술: ECA, EC, UT, PA.
개요

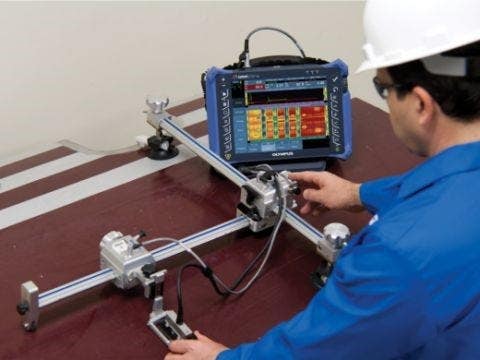

Manual X-Y Scanner
The GLIDER X-Y Scanner is a 2-axis encoding scanner for the manual inspection of slightly curved or flat composite surfaces. The scanner is well suited for raster scanning with the following technologies:
- Conventional ultrasonics (UT)
- Phased array ultrasonics (PAUT)
- Eddy current (EC)
- Eddy current array (ECA)
Commonly inspected materials include composites and aluminum, using suction-cup pods; and carbon steel, using optional magnetic pods.

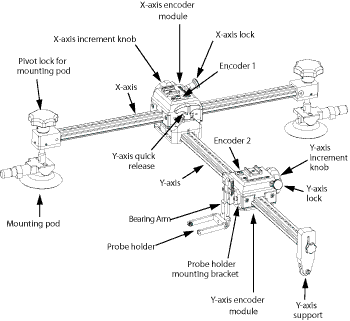

Design Characteristics
The X-axis is attached to two mounting pods. Depending on the material to inspect, one of the following models can be used:
- Suction-cup mounting pod (included)

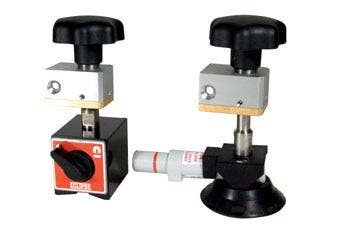

- Magnetic mounting pod (optional)
There are two encoder modules (one on each axis) to measure the probe position. The displacement of these modules can be in 3.27 mm steps, free running, or locked.

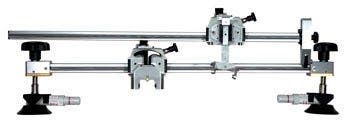

The scanner comes in three formats (18 in., 24 in., and 36 in.), depending on the scan coverage needed:
- GLIDER 18 x 18
- GLIDER 24 x 24
- GLIDER 36 x 36
Options
Magnetic mounting pods enable use on ferromagnetic surfaces (part number GLIDER-A-01)
Tracks
18 in., 24 in., or 36 in. tracks are available as options.
Manual Water Pump Kit
Water pump is compatible with scanner umbilical cables. It can also be used with provided tubing. Includes tank, tubing, and Y-splitters (part number OPIX105).
Electric Water Pump Kits
The CFU-03 and CFU-05 are portable electric pump units used to supply couplant to wedges during ultrasonic inspections.
특징
- 한 개의 프로브를 사용하는 위상 배열 UT, 기존 UT 및 와전류 검사 기법에 적합함
- 위치가 인코딩된 X-Y 스캔용의 방수 인코더를 포함하는 두 개의 축
- 역회전을 최소화하여 배치한 축
- 정밀하고 원활한 변위를 위해 두 개의 모듈 모두 베어링에 장착됨
- 피벗 장착 마운팅 포드 2개로 표면 추적 가능
- 잠금장치로 각 축을 잠글 수 있음
- 모듈은 3.27mm씩 증가하거나 자유 구동 모드로 이동할 수 있음
- 프로브 홀더는 필요한 경우 스프링이 장착될 수 있는 베어링 암 시스템에 장착됨.
- 알루미늄 프레임을 사용해 경량의 녹 방지 구성 요소 구현
- 슬라이딩 Y축으로 스캔 유연성을 높이고 휴대성을 개선함
사양
무게: 5~8kg, 구성에 따라 다름
석션 컵 포드 유지력: 컵당 18kg
자기 포드 유지력: 베이스당 81kg
인코더 분해능: 13스텝/mm(±0.15스텝/mm), 330스텝/in.(±0.006스텝 /in.)
부분 스캔 최소 곡률: 50cm(20in.), 외경
