HST-Lite
새로운 HST-Lite 스캐너는 신호 품질이 중요한 환경에서 비용 효율적인 1채널 TOFD 검사를 위한 완벽한 선택입니다. 자기 휠과 스프링 장착 프로브 홀더의 조합은 고품질의 일선 검사를 수행하는 데 필요한 안정성을 제공합니다. 스캐너는 한 손으로만 작동할 수 있으며, 뒤집어진 위치에서도 강자성 표면에 부착시킬 수 있습니다.
HST-Lite
Thickness and Flaw Inspection Solutions
Overview
Manual One-Axis Scanner

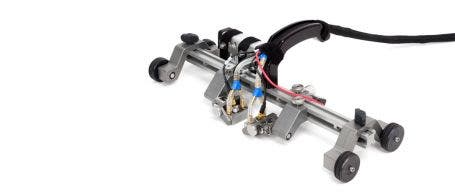

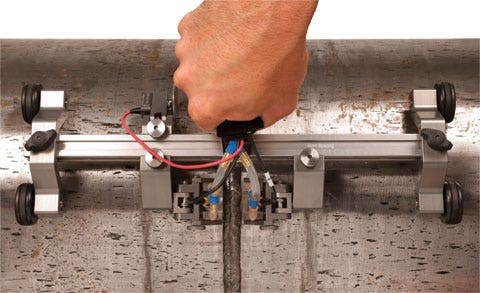

The new HST-Lite scanner is the perfect choice for cost-effective, one-channel TOFD inspections when signal quality is important. The combination of magnetic wheels and spring-loaded probe holders offer the stability required to perform high quality, one-line inspections. The scanner can be operated using only one hand, and will attach to ferromagnetic surfaces even when in an upside-down position.
The scanner's position can be encoded around the circumference of pipes as small as 4.5 in. (114.3 mm) OD, as well as on flat surfaces. Adjustment of the different scanner components can be performed without tools.
Features
- Circumferential scans performed with two TOFD probes on pipes 4.5 in. (114.3 mm) OD, or greater.
- Four magnetic wheels firmly attach the unit to ferromagnetic inspection surfaces.
- Light aluminum frame.
- Independently positioned and spring-loaded probe holders.
- Waterproof, spring-loaded encoder with 9 step/mm resolution.
- Removable handle for lower profile.
- Attachment devices for umbilical cables.
- The frame design enables probes to be positioned outside the wheels (2 additional magnetic wheels are required).
- Engraved references on the scanner and pointer on the probe holders ensure easy probe separation measurement.
Standard Inclusions
- Scanner frame with handle.
- Four magnetic wheels.
- OmniScan-compatible, waterproof, spring-loaded wheel encoder with 5 m cable.
- Two spring-loaded arms (SLA) with TOFD-P/E yokes
(31.75 mm wide with 5 mm diameter buttons). - Irrigation tubing and accessories.
- Cable conduit.
- Carrying case.
Note: Probes and wedges are not included with the scanner.
Specifications
Options
5682 Remote Preamplifier Kit
P/N: 5682-KIT02 [U8779091]
Couplant-Feed Units
P/N: WTR-SPRAYER-8L [U8775001]
TomoScan FOCUS LT Encoder Cable Adaptor
P/N: C1-DE15F-BXM-0.30M [U8767107]
Magnetic Wheels
P/N: CHAINSCAN-A-MWHEEL [U8779383]
Replacement Encoder
P/N: HST-Lite-SP-ENC [U8775277]
Extra Handle
P/N: HST-Lite-A-Handle [U8775278]
Extra TOFD Probe Holder Kit
P/N: HST-Lite-A-PH-TOFD [U8775279 ]
