VersaMOUSE
VersaMOUSE™는 위상 배열 프로브를 사용해 선형 인코딩 스캔을 수행하도록 설계된 스캐너입니다. 통합 인덱싱 버튼은 CFRP 평면 패널 및 부식 검사와 같은 2D 매핑 응용에 이상적입니다. VersaMOUSE는 인코딩된 1라인 스캔을 수행한 다음 수직 방향으로 위치를 인덱싱할 수 있습니다. 그런 다음 다른 1라인 스캔을 수행해서 이전 스캔과 나란히 배치시킬 수 있습니다.. 이 과정을 반복해서 관심 영역에 대한 완전한 2D지도를 생성시킬 수 있습니다.
Overview
The VersaMOUSE™ is a scanner designed for linear encoded scans with a phased array probe. The integrated indexing button makes it ideal for 2-D mapping applications such as CFRP flat panel and corrosion inspections. The VersaMOUSE can perform an encoded one-line scan, followed by indexing of the position in the perpendicular direction. Another one-line scan can then be performed and juxtaposed to the previous scan. This process is repeated to produce a complete 2D map of the area of interest.
The exclusive adjustable yoke of the VersaMOUSE is easy to set up on an IHC-type wedge using standard attachment holes. The spring-loaded system is optimized to offer the lowest clearance possible. The yoke is also attached to the scanner using a quick-connect system, which keeps the probe either parallel or at a 90° skew to the scan axis.
The encoder wheels are specially designed to resist slippage on wet surfaces. The rugged construction makes this scanner an affordable, yet reliable solution for all phased array inspections performed with a single probe. For even better stability on ferromagnetic surfaces, an optional magnetic wheel package is available.
Features
- Encoded linear scan (one axis) for phased array inspection.
- Integrated clicker button for indexing enabling 2-D mapping.
- Adjustable fork for easy and fast installation of multiple wedge dimensions.
- Two rubber wheels that remain in contact with the surface for maximum adherence.
- An easily clipped and spring-loaded yoke that can be positioned with a 90º skew.
- Encoder resolution: 8.4 steps/mm.
- Durable aluminum body and waterproof construction.
- Compatible with the OmniScan, the TomoScan FOCUS LT™ (with optional adaptor), and other instruments with the appropriate encoder cable (not included).
Standard inclusions
- OmniScan-compatible 2.5 m encoder cable.
- One adjustable PA yoke (width: 65 mm, length: 65 mm).
- A carrying case.
Note: Probes and wedges are not included with the scanner.
Options
Magnetic Wheels package
For maximum adherence of the wheels on ferromagnetic surfaces, in addition to improved stability.
P/N: VersaMOUSE-A-MagWheel [U8775247]
TomoScan FOCUS LT Encoder Cable Adaptor
P/N: C1-DE15F-BXM-0.30M [U8767107]
Specifications
| Probe-Holder Position | Length in Scan Axis (mm) | Width (mm) |
Height (mm) |
Weight (kg) |
| Front | 170 | 80 | 42 | 0.4 |
| Side | 80 | 152 | 42 | 0.4 |

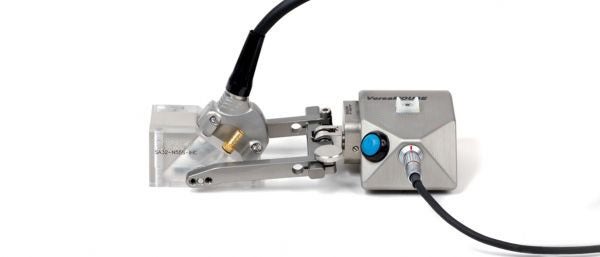

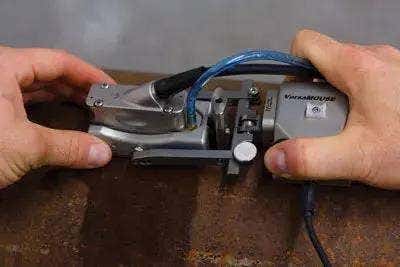

VersaMOUSE scanner and RexoFORM for corrosion inspection.

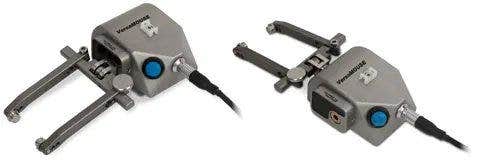

An easily clipped and spring-loaded yoke that can be positioned with a 90º skew.
