개요

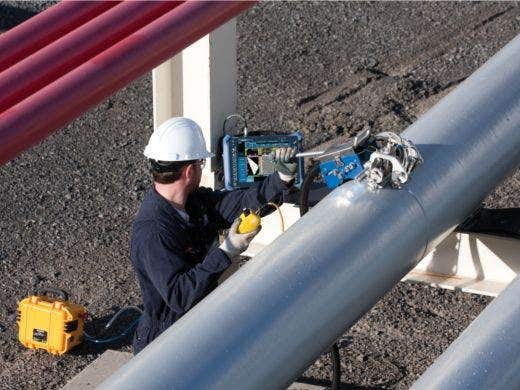

Weld Inspection—Motorized One-Axis Scanner

The WeldROVER^™ scanner is designed for customers that require a more stable inspection than what can be provided by manual scanners but need an instrument that’s more economical than the high-production zone-discrimination systems typically used in offshore pipeline construction.

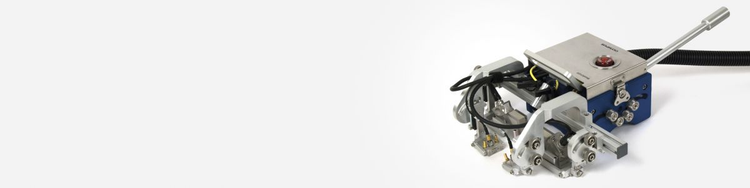

The WeldROVER scanner is a simple, industrial-strength, one-axis encoded scanner that provides fully mechanized automated data acquisition. It is designed to make fast, efficient phased array inspections on ferromagnetic piping or vessel girth welds and long seams with minimal training and setup time. The scanner can be configured with up to six probes for phased array, TOFD, and conventional UT inspection.

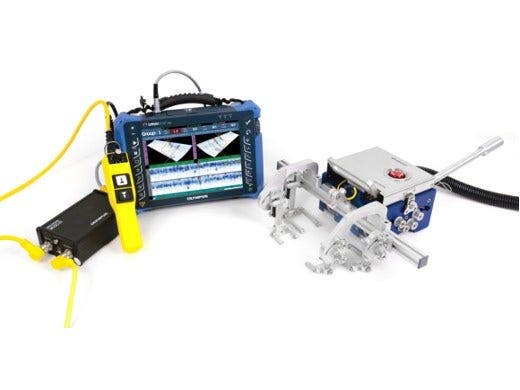

Easy to use, the WeldROVER scanner is operated by a simple two-button remote control with variable speeds. The scanner directly interfaces with OmniScan^® and FOCUS series flaw detectors without the need for complex software, motion controller electronics, or configuration. A laser-guide indicator helps you manually adjust the scanner direction using the steering lever. This makes it easier to acquire precision data without the need for guide bands, complex tracking systems, or motorized steering capabilities. It is the perfect fit for a company offering fully mechanized, automated phased array (AUT) inspection services. Less than one hour of training is required for customers that have completed the basic OmniScan course.

특징

• TOFD, 위상 배열 또는 펄스-에코 검사를 위해 최대 6개의 프로브 지원 가능
• 어떤 속도에서든 원활한 데이터 수집을 위해 일관된 스캐닝 속도 제어
• 컴팩트한 모션 컨트롤러로 5mm/초부터 50mm/초까지 10가지 스캔 속도 제공
• 조그 또는 일정한 인코딩 동작을 후방 또는 전방으로 움직이는 간단한 2개 버튼식 원격 제어
• 설정 시간 5분 이내에 OmniScan 또는 FOCUS 계측기를 사용하여 데이터 수집
• 4개의 강력한 마그네틱 휠로 강자성 표면에서도 사용 가능
• 간단하고 효율적인 접촉 매질 전달을 위해 통합된 물 매니폴드
• 스캐너에 위치한 비상 정지 버튼
• 레이저 가이드 표시기는 작동자가 용접 중앙선이나 기타 검사 기준을 따르도록 도움 제공
• TOFD-P/E 검사 개선을 위해 원격 펄서/전치 증폭기를 설치할 수 있는 여유 공간
• 분리형 전선관로 접속선으로 케이블을 보호하고 유연한 구성이 가능.프로브 재구성에 최소한의 시간 소요.
• 방수 기능(IP65)

사양

Specifications

Scanner speed: 5 mm to 50 mm per second
Encoder resolution: 2100 steps/mm (typical)
Power consumption: 90 W
Maximum input current: 4 A
Voltage: 24 VDC
Power supply input voltage: 100 VAC or 240 VAC, autoswitching

Standard inclusions

• Motorized scanner with rotating probe-holder arms at the front and back of the scanner
• 2 frame bars for probe-holder fixation of 200 mm (8 in.) and one of 340 mm (13.4 in.)
• Remote control with 5 m cable
• MCDC-01: one-axis DC motion controller
• Encoder cables linking MCDC-01 to the OmniScan®
• 6 spring-loaded arms (SLA) pivoting probe holders and all brackets needed for the different configurations
• 4 TOFD-P/E 31.75 mm yokes
• 2 PA 40 mm x 55 mm yokes
• 2 PA 40 mm x 65 mm yokes for PWZ1 probes
• Irrigation tubing and fittings
• Laser guide and holder
• Two steering lever
• 5 m divisible conduit for cable protection and attachment to the scanner.
• Power supply
• Scanner and accessories hard carrying case

Note: All cables for scanner operation are 5 m.
Probes and wedges are not included with the scanner.

Configurations

A typical configuration is two PA probes and one or two pairs of TOFD probes to comply with the ASME codes.

Circumferential scan:

• Supports two probes at the back and two at the front of the scanner on pipes from 4 in. OD and up
• Supports up to four probes at the front of the scanner on pipes from 12 in. OD and up
• Supports up to six probes at the front of the scanner on pipes from 16 in. OD and up

Longitudinal scan:

• Supports up to six probes at the front of the scanner on pipes from 30 in. OD and up

Options

• Electrical water pump (P/N: CFU03)
• Manual water pump (P/N: WTR-SPRAYER-8L)
• TomoScan Focus LT encoder cable adaptor (P/N: C1-DE15F-BXM-0.30M)
• Extra 5 m divisible cable conduit (P/N: OPTX0719)
• Extra spring-loaded probe holder (P/N: WELDROVER-A-SLA)
• Extra laser guide (P/N: WELDROVER-A-LASER)
• Modular instrument and accessories hard-carrying case. The modules can be used to transform the scanner case into a workstation. (P/N: WELDROVER-A-ICASE)
• Spare parts kit (P/N: WELDROVER-A-SPKIT)

For TOFD inspection:

• TRPP-5810 2-channel pulser/preamplifier (P/N: TRPP-5810)
• 5682 1-channel preamplifier (P/N: 5682)
• TOFD probes and wedges (see ordering information table)
• Extra TOFD/PE 31.75 mm yokes (P/N: ADIX689)
• UT probe cables
  • 5 m UT RG174 coaxial cable with LEMO-00 to LEMO-00 connectors (P/N: C174-LM-LM-5M)
  • 5 m UT RG174 coaxial cable with LEMO-00 to Microdot connectors (P/N: C174-LM-UDOT-5M)
  • 0.45 m UT RG174 coaxial cable with LEMO-00 to Microdot connectors (P/N: C174-LM-UDOT-0.45M)

For Phased Array inspection:

• PA probes and wedges (see ordering information table)
• 0.5 m PA extension cable with four UT connections
  (P/N: E128P0-0202-OM)
• PA probe splitter (P/N: OMNI-A-ADP05)
• Extra PA 40 mm x 55 mm yoke (P/N: ADIX655)
• Extra PA 40 mm x 65 mm yoke for PWZ1 probes (P/N: ADIX1082)
