DELTA Professional

실리콘 드리프트 검출기(SDD)와 4W 최적화된 X선 튜브를 결합한 DELTA 프로페셔널은 속도, LOD 및 원소 범위에서 뛰어난 성능을 제공합니다. 합금 및 광업에 대해 Mg 등을 분석합니다. DELTA 프로페셔널은 Olympus의 휴대용 XRF를 위한 최고의 가치를 지닌 솔루션입니다.

이 제품은 단종되었으며 대체 제품은 다음과 같습니다. Vanta Max

XRF 분석기 DELTA Professional

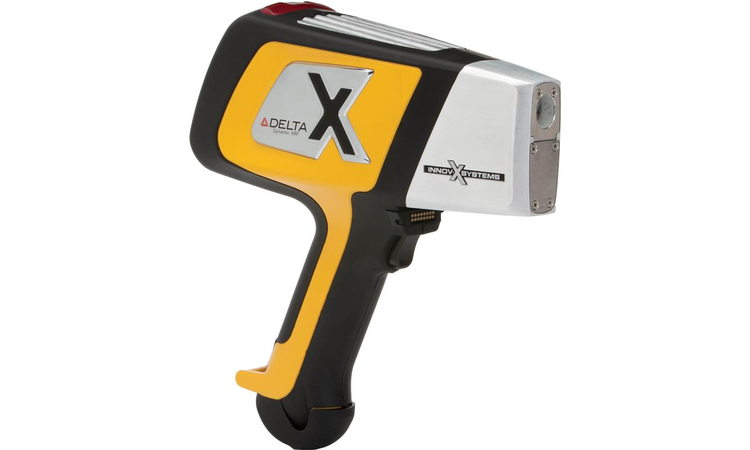

The DELTA Professional

With New X-act Count Technology

The DELTA Professional provides excellent performance in speed, LODs, and elemental range. It is housed in an industrial designed body ruggedized to demanding environments. It provides the best mix of durability and analytical performance with lower cost of ownership.

The DELTA Professional Incorporates everything you need in a handheld XRF with state-of-the-art innovations and a rugged design.

Feature and Benefits

Optimized DELTA Configuration

  • New X-act Count Technology
  • Silicon Drift Detector
  • Automatic Filtering
  • Application Specific Tubes

Enhanced Analytical Performance

  • Light Elements and Alloys
  • Mg, Al, Si, and S Sensitivity
  • Transition and Heavy Metals
  • Rare Earth Elements (REEs)

Value Solution

  • Fast Measurement Time
  • Broad Elemental Range
  • Low Limits of Detection
  • Outstanding Precision
  • Hot Swap Battery for Continuous Operation

Specifications

The DELTA Professional

The DELTA Professional with new X-act Count Technology is configured with a 40kV miniature X- ray tube, advanced Silicon Drift Detector (SDD), specialized filters, and multi-beam optimization. It is the best value solution from Evident for handheld XRF analyzers. The DELTA Professional provides superior performance in speed, LODs , and elemental range.

DELTA Professional Specifications

Dimensions
260 x 240 x 90 mm (10.25 x 9.5 x 3.5 in.)
Excitation source
4W Ag, Rh, Au, or Ta anode (per application) X-ray tube
Detector
Silicon Drift Detector
Environmental temperature range
-10 °C to 50 °C (14 °F to 122 °F)
Analytical range
Alloy and Mining: Mg and up for Rh/Ag and Al and up for Ta/Au; Soil: P and higher
Processing electronics
530 MHz CPU with integrated FPU with 128 MB RAM; Proprietary Evident X-act Count Digital Pulse Processor (DPP)
Smart Electronics
Barometer for atmosphere pressure correction of light elements' measurements
Power
Rechargeable Li-ion battery; Hot-swap maintains analyzer power during battery change
Display
32 bit Color QVGA resolution, Blanview transmissive backlit touchscreen; 57 x 73 mm (2.25 x 2.9 in.)
Data Storage
1 GB microSD (stores ~75,000 readings)
Data Transfer
USB

Standard Accessories

  • Waterproof Carrying Case
  • Two (2) Li-ion Batteries
  • Electronic User Manual and User Interface Guide and Printed Quick Start Guide
  • Docking Station
  • Mini USB Cable
  • 316 Stainless Steel Calibration Check Reference Coin
  • Ten (10) Spare Windows
  • Integrated Wrist Strap
  • DELTA PC Software
  • Factory Authorized Training & Support

Optional Accessories

  • XRF WorkStation for mobile benchtop use
  • Soil Foot facilitating hands-free In-sltu testing
  • Soil Extension Pole offering ergonomic In-sltu testing while standing/walking
  • Belt Holster
