27MG 초음파 두께 측정기
27MG 기본 초음파 두께 측정기는 내부적으로 부식되거나 침식된 금속 파이프와 부품의 두께를 한쪽 면에서 정확하게 측정하도록 설계되었습니다. 내구성이 뛰어난 경량 제품으로, 한 손으로 쉽게 조작할 수 있도록 인체공학적으로 설계되었습니다.
Overview
The Evident 27MG is an affordable ultrasonic thickness gauge designed to make accurate, measurements from one side on internally corroded or eroded metal pipes, tanks, and other equipment. It weighs only 12 oz. (340 g) and is ergonomically designed for easy, one-hand operation. Despite its compact size, the 27MG has many innovative measurement features utilizing the same technologies that are available on our more advanced thickness gauges. The durable, rugged 27MG is battery-operated and features a large, backlit LCD with easy-to-read numerals, and an intuitive color-coded keypad with direct access to many key features.
Standard features include Automatic Probe Recognition to ensure optimal transducer performance, Auto Zero compensation to enhance the accuracy of measurements on hot surfaces, Gain Adjust to improve measurements on sound-attenuating materials such as cast metals, Differential mode, Hi-Low Alarm settings, and a Min./Max. mode that captures the minimum or maximum thickness at 20 measurements per second.
The 27MG is designed for inspectors and maintenance engineers that need to monitor the wall thickness in metal pipes, tanks, beams, and structural supports that are susceptible to corrosion on the inside surface. An ultrasonic thickness gauge provides a quick, cost-effective solution by transmitting sound into the material from the outside, making it unnecessary to damage the part.
Transducers

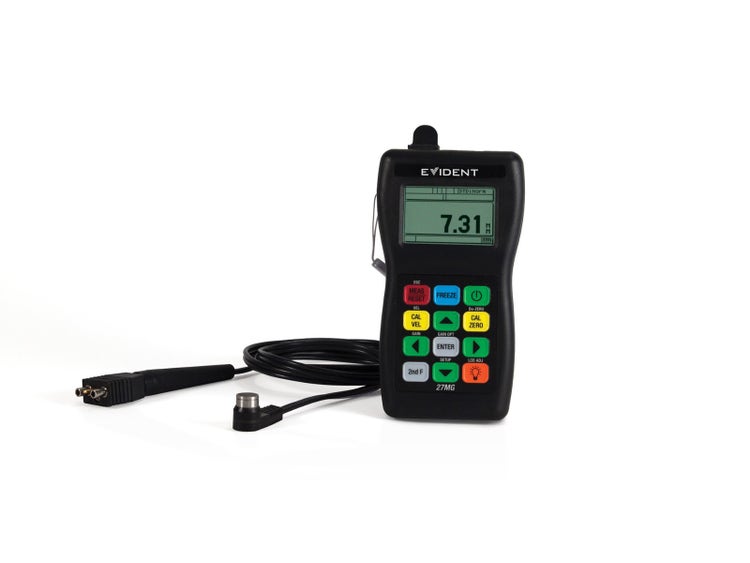

The 27MG comes standard with the low-cost D7910 dual element transducer that enables you to make thickness measurement for many basic corrosion applications. For measurements on very thin or thick materials, or small diameter pipes, Evident has available a full line of dual element transducers. Evident transducers compatible with the 27MG feature Automatic Probe Recognition that optimizes transducer performance by automatically recalling the default V-path correction.

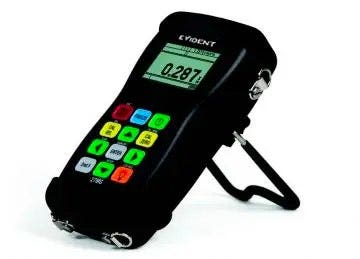

27MG with the optional Protective Rubber Boot with Neck Strap and Gauge Stand
Specifications
Standard: 0.01 mm (0.001 in.)
Standard Package
- 27MG digital ultrasonic thickness gauge
- Dual element transducer
- AA alkaline batteries
- Test block and couplant
- Carrying case
- Wrist strap
- User’s manual on CD
- Getting started Guide
- Measurement features: Min./Max. mode, Differential mode, Gain Adjust Freeze mode, Automatic Probe Recognition, Zero Compensation
Standard inclusions may vary depending on your location. Contact your local distributor.
Optional Accessories
- 2214E (U8880014): 5-step test block, English units
- 2214M (U8880016): 5-step test block, metric units
- 27MG/RPC (U8780343): Protective rubber boot with Neck Strap and Gauge Stand
For additional accessories such as holders, wands, and couplants, please consult Evident.
Transducers
Transducers with Automatic Probe Recognition
The 27MG is compatible with our complete line of easy interchangeable dual element transducers that vary in frequencies, diameters, and temperature capabilities to deal with virtually every application.
1 Dependent on material, transducer type, surface conditions, and temperature. Full range may require Gain Adjust.
2 Maximum temperature with intermittent contact only.
3 Stainless steel cable available; consult Evident for details.
