35RDC 복합 손상 검사기
35RDC 복합물 손상 검사기는 단순한 작동/비작동 초음파 측정기로, 항공기 복합물 구조에 대한 충격으로 발생한 표면 아래의 결함을 감지하도록 설계되었습니다.
개요
35RDC Composite Damage Checker

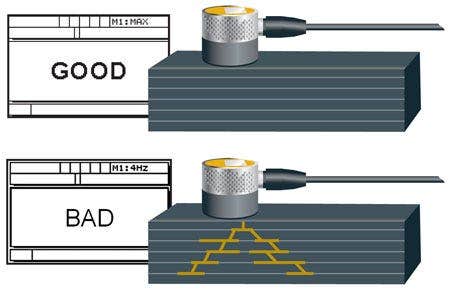

The handheld 35RDC is a simple Go/No-Go ultrasonic instrument designed to detect subsurface defects caused by impact damage on solid laminate aircraft composite structures. The 35RDC features a backlit LCD that displays the word GOOD if no subsurface damage is found or the word BAD when it detects subsurface damage. It uses an ultrasonic transducer that can be placed or scanned on the area of composite material suspected of having impact damage. Weighing only 0.24 Kg (8.5 oz.) and featuring a simplified keypad, this rugged ultrasonic instrument is easy to operate and requires minimal training.
Features
- For use on solid laminate structure aerospace composites
- Simple one-button calibration
- Thickness range 0.63 mm to 22.8 mm (0.025 in. to 0.900 in.)
- Simple Good/Bad/Beyond Cal display readout
- Back light matrix display with user help text
- AA battery operation
- Handheld, weighing only 0.24 Kg (8.5 oz.)
- Energy saving Auto Power off feature
- Long battery life, 150 hours typical
- Battery life indicator
Transducers

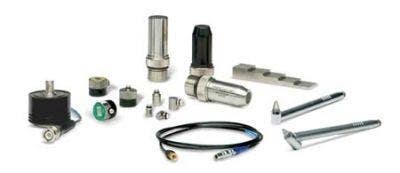

Olympus offers a complete selection of transducers, cables, couplants, calibration test blocks, and accessories to meet a wide variety of ultrasonic precision thickness gauging applications.
Precision Thickness Gage Transducers
사양
- Digital Readout Good, Bad or Beyond CAL thickness
- Advanced user setting shows A-scan or waveform. For use by qualified NDT personnel only.
** Thickness range depends on material, transducer, and surface conditions.
Optional Accessories
USB/ADP-115: AC-115 power supply
USB/ADP-230: AC-230 power supply
*All specifications are subject to change without notice.
