인라인 ERW 고온 검사 시스템
이 인라인 PAUT 프로세스 제어 시스템은 용접 냉각과 풀림 사이에 배치되어 ERW 튜브 이음매와 HAZ를 점검합니다. 이것의 고유한 자체 냉각 웨지 및 자동 알람은 최대 100°C(212°F)의 온도로부터 위상 배열 프로브를 보호합니다.
Fully Automated ERW Tube Process-Control
Overview

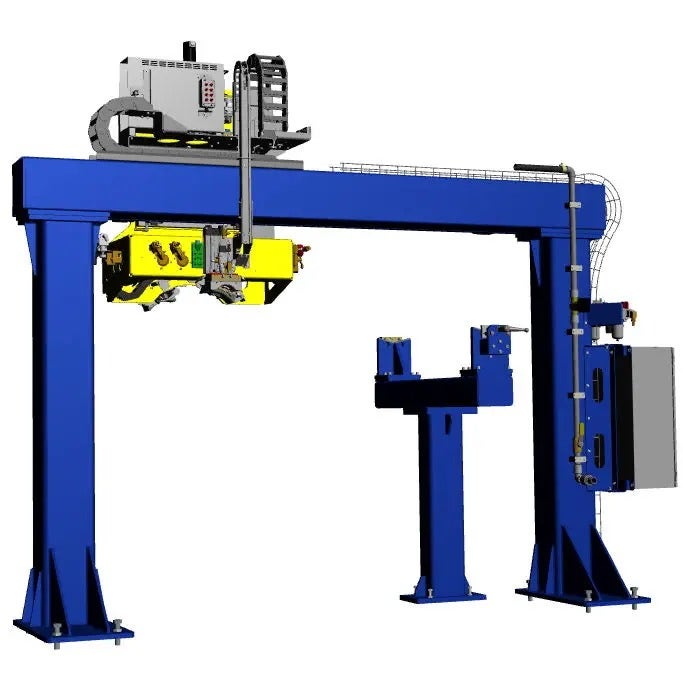

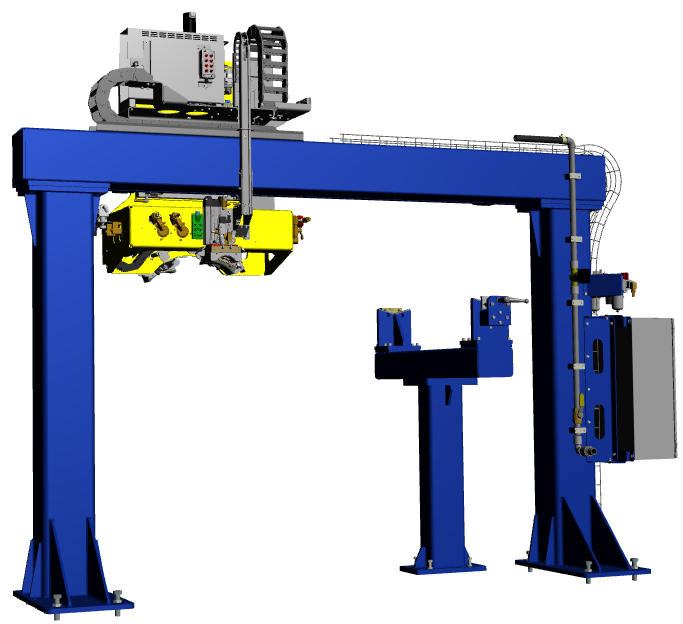

ERW Solutions: In-Line ERW High-Temperature Inspection System
The In-Line ERW High-Temperature Inspection System integrates into the production line between the weld cooling and annealing, where the pipe temperature is 100 °C (212 °F) or lower. A special self-cooling wedge combined with automatic alarms protect the phased array (PA) probe against excessive temperatures.
Using conventional ultrasonic (UT) and PA technology, the system inspects the internal and external surfaces of the ERW seam and the heat-affected zone (HAZ) in pipes ranging from 60.3 mm to 508 mm (2.4 in. to 20 in.) OD. Automatic weld tracking technology connected to servomotor-driven mechanisms helps ensure coverage of the region of interest.
The following typical defects are detected:
- Longitudinal cracks
- Through-drilled holes
- Lamination defects in the HAZ (up to 25 mm (1 in.) on each side of the weld)
Strict Standard Compliance for OCTG Tube Manufacturers

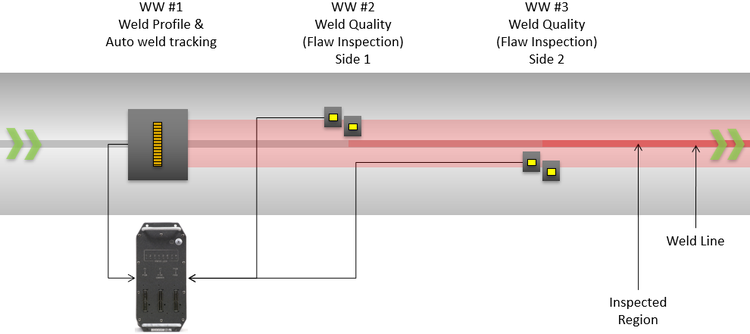

Completely automated, the In-Line ERW High-Temperature System’s phased array probe tracks and records the weld profile and the UT probes detect flaws in the welded area using the automatic positioning. This turnkey system gives ERW pipe manufacturers the tools to meet the inspection requirements of international standards:
- Automatically tracks the heat-affected zone (HAZ)
- Displays the profile of the weld in real time
- Automatically positions the flaw detection probe for optimal detection
- Minimizes dependence on operator skill
- Easy and fast changeover using preset probe holders and saved setup files
- Protects the phased array probe using a closed-loop cooling system
Software and Acquisition Unit

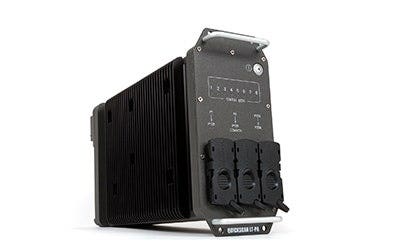

Phased Array Acquisition Unit
The QuickScan™ PA 32:256 module meets IP55 standards and is designed to easily integrate into industrial environments.
Easy Setup and Data Management
QuickView™ software makes it easy to configure the system and acquire and manage data. The results are merged and displayed to clearly differentiate between accepted and rejected tubes.
- Software wizard assists you in creating setups for different tube sizes
- Quickly access predefined configuration and calibration parameters for each tube diameter
- Restrict access to certain users to help minimize operator errors
- Calibration and inspection information are stored for traceability
- Offers an operating mode that requires minimal human intervention

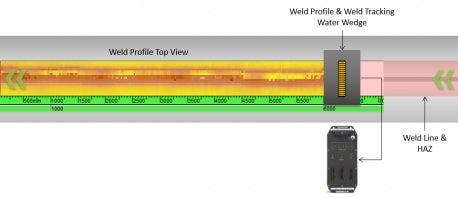

Real-Time Weld Profiling
QuickView software displays a complete weld profile view in real time without mechanical oscillation of the phased array probe.
- Evaluate the shape of the cut using the easy-to-interpret C-scan of the weld profile.
- Make informed, on-the-spot decisions thanks to the continuous and comprehensive view of the weld, covering a long portion of the tube.
- The weld profile data is also used for the weld tracking algorithm, helping ensure the conventional UT probes are properly positioned for an optimal inspection.
Specifications
| Standard Product Range | Diameter | 60.3 mm to 508 mm (2.375 in. to 20 in.) |
| Wall Thickness | 3 mm to 16 mm (0.118 in. to 0.630 in.) | |
| Speed | Typically 600 mm/sec (limited by the production line speed) | |
| Coverage | 100% weld volume for cracks/TDH and up to 25 mm on each side of weld for lamination detection | |
| Data Presentation | Real-Time Inspection Results | C-scan, A-scan, B-scan, strip charts, and alarms |
| Inspection Modes | Typical Inspection Modes | Longitudinal and lamination |
| Operating Temperature | Up to 100°C | |
| Detection Capabilities for Typical Reference Defects | Repeatability | Longitudinal notches: <3 dB; 3.2 mm TDH: <4 dB; 1.6 mm TDH: <5 dB; 6.35 mm FBH: <3 dB; 3.2 mm FBH: <4 dB |
| Standards | ISO, API | |
| Reporting and Data Storage | Report Types | Inspection, calibration, and calibration-check user-configurable reports |
| Storage | Real-time database inspection data storage |
