종방향 서브머지드 아크 용접(longitudinal submerged arc welded, LSAW) 튜브는 강철판을 구부리고 주조한 다음, 이중 면 서브머지드 아크 용접을 사용하여 가장자리를 이어 제조합니다. 이 용접 방법은 석유 및 가스 산업에서 원거리 탄화수소 운송 파이프라인에 흔히 사용됩니다.
LSAW Tube Inspection System
Overview
Longitudinal submerged arc welded (LSAW) tubes are manufactured by bending and molding steel plate and then joining the edges using a double-sided submerged arc weld. They are commonly used in the oil and gas industry for long-distance hydrocarbon transport pipelines.

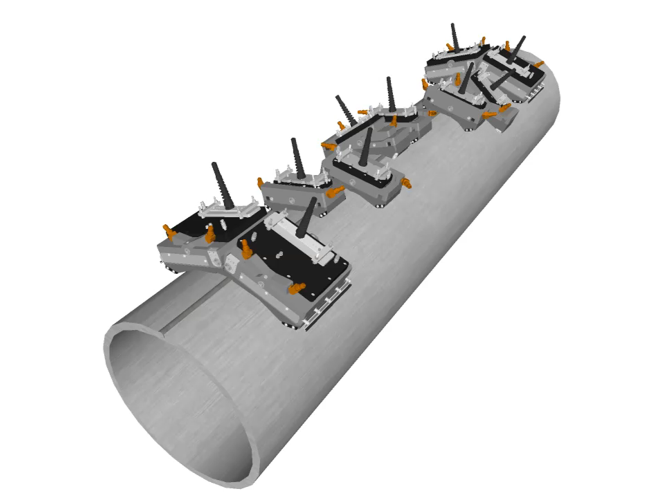

Olympus Longitudinal Submerged Arc Weld (LSAW) Inspection System
Olympus’ LSAW high-performance tube and weld inspection solution uses ultrasonic phased array probes integrated into fully automated testing systems to meet stringent requirements for weld-volume inspection. The LSAW system helps manufacturers ensure the quality of longitudinal submerged arc welded tubes and can be adapted to meet the varying needs of oil country tubular goods (OCTG) manufacturers.
LSAW Pipe Inspection Requirements
The LSAW system is built to comply with international standards governing pipe manufacturing inspection requirements. It inspects 100% of the weld volume in line pipes ranging from 304.8 mm to 2032 mm (12 in. to 80 in.) OD, in addition to the heat affected zone (HAZ).
Detected defects:
- Longitudinal and transverse cracks (up to 3 mm (0.12 in.) ID and OD for each side)
- Lack of fusion, lack of penetration, and penetrators according to the wall thickness (DEP standard*)

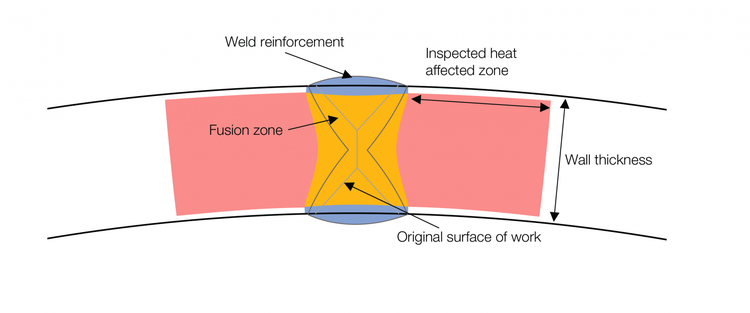

- Lamination defects in the HAZ (up to 75 mm (3 in.) for each side of the weld)
LSAW Automated Turnkey Solution Features
Integrating the LSAW inspection system into the quality control process enables manufacturers to:
- Minimize dependency on operator skill, owing to the system’s automatic calibration
- Detect defects at normal production speed with regular calibration checks
- Limit the overall dimensions of the inspection head
- Optimize detection with 2D scan visualization
- Reduce changeover and probe setup time with automatic probe positioning and phased array beam steering
