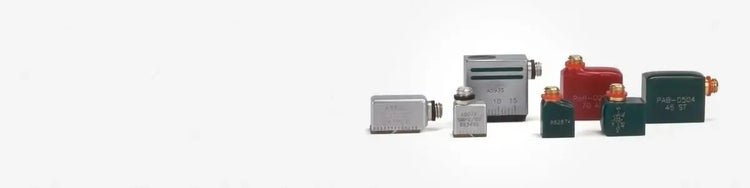

整合角度声束探头提供卓越的信噪比特性，并含有耐用的塑料防磨面。某些样式既有直角型Microdot连接器，也有平直型Microdot连接器。
概述
整合角度声束探头
- 耐用的塑料防磨面不仅可延长探头的使用寿命，还避免了探头擦伤关键部件
- 探头的接近距离短和总体高度低的特点使其成为在狭小空间进行检测的上佳选择
- 这种小整合探头具有卓越的信噪比
- 超微RM外壳样式探头附带指环
A592S-SM
0.25"，SM样式，用于检测铝制工件
A5952S-RM.tif A592S-RM
0.25"，RM样式，用于检测铝制工件
整合角度声束
0.187"，RM样式
A5023
0.187"，SM样式
A5014
0.25"，RM样式，用于检测钢制工件
欲了解更多信息, 请联系我们.
| Frequency (MHz) |
Nominal Element Size | ACCUSCAN-S | |
| in. | mm | Part / Item No. |
|
| 2.25 | 0.25 x 0.25 | 6 x 6 |
A561S-RM U8431041A562S-RM U8431042A563S-RM U8431043A564S-RM U8431044 |
| 5 | 0.25 x 0.25 | 6 x 6 |
A591S-SM U8431052A593S-SM U8431056A592S-SM U8431054A571S-RM U8431045A572S-RM U8431046A573S-RM U8431047A574S-RM U8431048A591S-RM U8431051A592S-RM U8431053A593S-RM U8431055 |
| 5 | 0.187 x 0.187 | 5 x 5 |
A5020 U8438003A5021 U8438004A5015 U8438002A5023 U8438005A5067 U8438014A5068 U8438015A5069 U8438016A5013 U8860363A5014 U8438001 |
| 10 | 0.187 x 0.187 | 5 x 5 |
A5054 \ U8438012 |
Harisonic样式
Harisonic样式
微型铸封角度声束探头通过使用整合角度声束横波楔块，在尺寸和性能之间取得了很好的平衡。与旋入式探头和楔块相比，其整体尺寸和底面都有所减小，而性能却几乎没有下降。环氧外壳可防止探头划伤被测表面。
根据应用需求，可在顶部（平直型）或侧面（直角型）安装连接器。提供45°、60°、70°和90°四种标准横波角度，也可以根据要求提供定制角度。
超小型（HS-225）和超微型（HS-877）角度声束探头提供从2.25到10.0 MHz的频率，以及从45°到90°的角度。环氧外壳可防止探头划伤被测表面。这类探头是检测小直径焊管以及需要特小底面横波探头应用的理想工具。根据所选类型，可提供顶部或侧面安装的Microdot连接器。订购时，请注明工件编号、频率、角度、被测材料、连接器位置。
探头外壳尺寸
超小型：
0.375 in.（长）× 0.425 in.（高）× .0325 in.（宽）
超微型：
0.375 in.（长）× 0.375 in.（高）× 0.250 in.（宽）
超小型：
0.375 in.（长）× 0.425 in.（高）× .0325 in.（宽）
超微型：
0.375 in.（长）× 0.375 in.（高）× 0.250 in.（宽）
| Item Number | Part Code | Frequency (MHz) |
Nominal Element Size Angle (°) |
Angle (°) | Connector Type | |
| mm | Inches | |||||
U8503183 |
PAB-0204-60-AL-RM | 2.25 | 6 x 6 | 0.250 x 0.250 | 60° Shear Wave in Steel | Right Microdot |
U8503124 |
HS-225-5-45-AL-RM | 5 | 3 x 6 | 0.120 x 0.250 | 45° Shear Wave in Aluminum | Right Microdot |
U8503092 |
PAB-0504-70-ST-RM | 5 | 6 x 6 | 0.250 x 0.250 | 70° Shear Wave in Steel | Right Microdot |
U8503091 |
PAB-0504-70-AL-RM | 5 | 6 x 6 | 0.250 x 0.250 | 70° Shear Wave in Aluminum | Right Microdot |
U8503110 |
PAB-0504-60-AL-SM | 5 | 6 x 6 | 0.250 x 0.250 | 60° Shear Wave in Aluminum | Straight Microdot |
U8430039 |
PAB-0504-45-ST-RM | 5 | 6 x 6 | 0.250 x 0.250 | 45° Shear Wave in Steel | Right Microdot |
U8503107 |
PAB-0504-45-AL-RM | 5 | 6 x 6 | 0.250 x 0.250 | 45° Shear Wave in Aluminum | Right Microdot |
U8435040 |
HS-225-5-70-ST-RM | 5 | 3 x 6 | 0.120 x 0.250 | 70° Shear Wave in Steel | Right Microdot |
U8503056 |
HS-225-5-70-AL-SM | 5 | 3 x 6 | 0.120 x 0.250 | 70° Shear Wave in Aluminum | Straight Microdot |
U8503090 |
PAB-0504-60-ST-SM | 5 | 6 x 6 | 0.250 x 0.250 | 60° Shear Wave in Steel | Straight Microdot |
U8503163 |
PAB-0504-60-ST-RM | 5 | 6 x 6 | 0.250 x 0.250 | 60° Shear Wave in Steel | Right Microdot |
U8503106 |
PAB-0504-45-AL-SM | 5 | 6 x 6 | 0.250 x 0.250 | 45° Shear Wave in Aluminum | Straight Microdot |
U8503123 |
HS-225-5-70-AL-RM | 5 | 3 x 6 | 0.120 x 0.250 | 70° Shear Wave in Aluminum | Right Microdot |
U8435041 |
HS-225-5-60-ST-RM | 5 | 3 x 6 | 0.120 x 0.250 | 60° Shear Wave in Steel | Right Microdot |
U8503086 |
PAB-0503-70-AL-SM | 5 | 5 x 5 | 0.187 x 0.187 | 70° Shear Wave in Aluminum | Straight Microdot |
U8503093 |
PAB-0504-70-ST-SM | 5 | 6 x 6 | 0.250 x 0.250 | 70° Shear Wave in Steel | Straight Microdot |
U8503054 |
HS-225-5-60-AL-SM | 5 | 3 x 6 | 0.120 x 0.250 | 60° Shear Wave in Aluminum | Straight Microdot |
U8503089 |
PAB-0504-45-ST-SM | 5 | 6 x 6 | 0.250 x 0.250 | 45° Shear Wave in Steel | Straight Microdot |
U8503082 |
PAB-0503-60-AL-SM | 5 | 5 x 5 | 0.187 x 0.187 | 60° Shear Wave in Aluminum | Straight Microdot |
U8503127 |
HS-877-5-45-ST-RM | 5 | 5 x 5 | 0.187 x 0.187 | 45° Shear Wave in Steel | Right Microdot |
U8503134 |
HS-225-5-45-AL-SM | 5 | 3 x 6 | 0.120 x 0.250 | 45° Shear in Aluminum | Straight Microdot |
U8503053 |
HS-225-5-60-AL-RM | 5 | 3 x 4 | 0.120 x 0.250 | 60° Shear Wave in Aluminum | Right Microdot |
U8503077 |
PAB-0503-45-AL-RM | 5 | 5 x 5 | 0.187 x 0.187 | 45° Shear Wave in Aluminum | Right Microdot |
U8503109 |
PAB-0504-60-AL-RM | 5 | 6 x 6 | 0.250 x 0.250 | 60° Shear Wave in Aluminum | Straight Microdot |
U8503177 |
PAB-1004-45-ST-RM | 10 | 6 x 6 | 0.250 x 0.250 | 45° Shear Wave in Steel | Right Microdot |
U8503176 |
PAB-1004-45-AL-SM | 10 | 6 x 6 | 0.250 x 0.250 | 45° Shear Wave in Aluminum | Straight Microdot |
U8503096 |
PAB-1004-45-AL-RM | 10 | 6 x 6 | 0.250 x 0.250 | 45° Shear Wall in Aluminum | Right Microdot |
U8502019 |
PAB-1003-60-AL-SM | 10 | 5 x 5 | 0.187 x 0.187 | 60° Shear Wave in Aluminum | Straight Microdot |
U8503058 |
HS-877-10-45-AL-SM | 10 | 3 x 4 | 0.187 x 0.187 | 45° Shear Wave in Aluminum | Straight Microdot |
U8503126 |
HS-877-10-60-AL-SM | 10 | 5 x 5 | 0.187 x 0.187 | 60° Shear Wave in Aluminum | Straight Microdot |
U8503164 |
HS-877-10-70-AL-SM | 10 | 5 x 5 | 0.187 x 0.187 | 70° Shear Wave in Aluminum | Straight Microdot |
