FOCUS PX Acquisition Unit
The scalable FOCUS PX acquisition unit and FocusPC software incorporate the latest phased array (PA) and conventional UT technologies for easy integration into automated and semiautomated systems. This inspection solution enables you to generate and save C-scan and A-scan raw data for applications where the verdict is based on post-inspection data analysis. This includes applications in industries such as aerospace (composite laminate), power generation (wind blade), transportation (train wheels), metal (forged parts), and more.
Phased Array Instrumentation Designed for Demanding Inspections

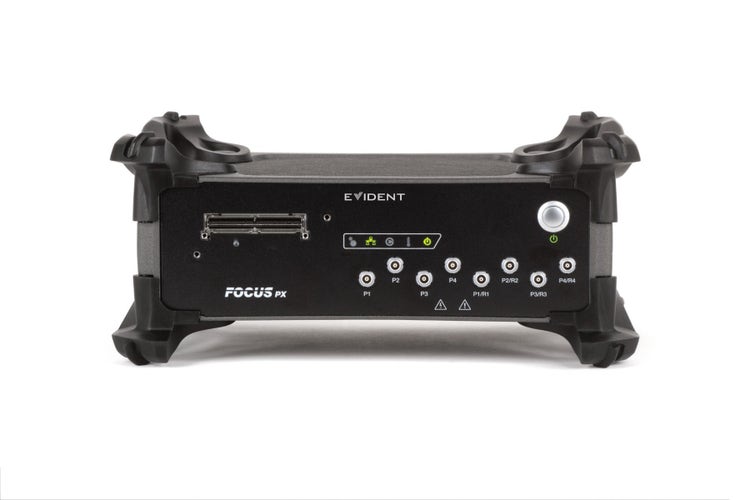

FOCUS PX Instrument
Excellent Signal Quality
The FOCUS PX provides excellent phased array signal quality using the latest Evident technology, resulting in significantly improved signal-to-noise ratio.
Up to 12 dB SNR improvements
Up to 4 dedicated UT channels
Scalable and Powerful

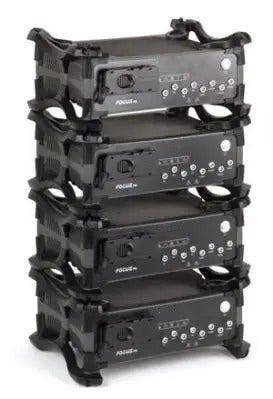

The FOCUS PX is equipped with the latest phased array technology to deliver significant performance enhancements and faster inspection speed in highly demanding applications. Up to four FOCUS PX units can be used in parallel, offering a significant increase in inspection speed and advanced multiprobe configurations.
Up to 4 FOCUS PX in parallel
Up to 30 MB/s data throughput
Fast Programming
The optimized FOCUS PX communication process significantly reduces programming time, resulting in minimized cycle time and improved operator experience.
Rugged
The FOCUS PX is a rugged unit that is designed for integration in harsh production environments. Designed for IP65 rating, the casing has multiple fins for optimized heat dissipation.
Up to 40 °C operating temperature
Rated IP65
Easy Integration
The FOCUS PX bumpers can be easily removed to access four screw holes for mounting the unit directly onto a scanner or inspection system.
Simple Cabling

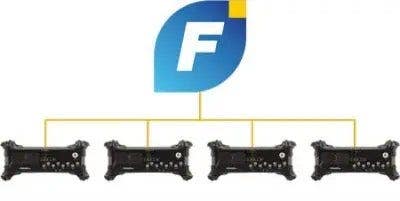

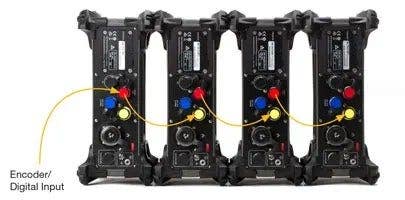

Multiple FOCUS PX units can be synchronized with each other through a simple cable configuration. This allows all I/O signals to be received by one unit, reducing cabling and greatly simplifying the overall integration.
Easy Mounting
Easy and quick installation allows the FOCUS PX to be positioned much closer to the probes, reducing cabling and optimizing signal quality.
Four screw holes are available for mounting the unit directly onto any inspection scanner.
WeldSight Software
Advanced PAUT Weld Inspection Software
Engineer compliant and repeatable advanced phased array (PA), ultrasonic (UT), and time-of-flight diffraction (TOFD) weld inspection with WeldSight™ software’s comprehensive acquisition and analysis tools.
Efficient Workflow
WeldSight software features a logical, streamlined workflow:
- Beam set creation
- UT configuration
- Calibration
- Data collection
- Analysis
- Reporting

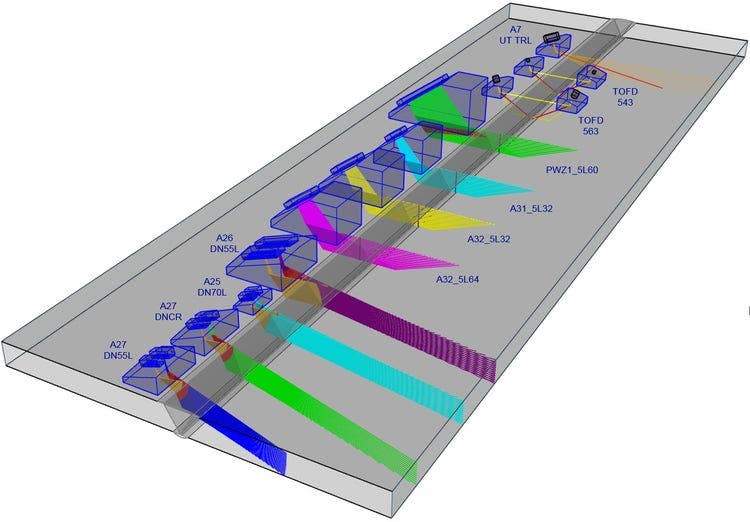

Advanced Software Functionalities
Designed for fabrication (manufacturing) or demanding in-service (maintenance) welds, WeldSight software contains the necessary tools to engineer advanced phased array inspections and analysis.
• Fully integrated BeamTool scan plan designer from Eclipse Scientific
• Automatic wedge validation and probe element validation
• Autofocusing of targets
• Improved time-corrected gain (TCG), enabling simultaneous calibration of multiple points
• Drag-and-drop customizable displays
• TOFD tools
• Dynamic C-scan merge views
• 3D imaging and polar view
•Dual Linear Array™ (DLA)/Dual Matrix Array™ (DMA) support
• Strip charts for coupling and thickness monitoring
• Indication table recording and Excel® reporting
Code Compliance and Repeatability
WeldSight™ software combined with the FOCUS PX phased array instrument, weld series or custom probes, wedges, and accessories can help ensure code compliance for manufacturing and service inspections of welds with unique and complex characterizations.
Comply with fabrication standards:
- ASME
- API
- ISO
- ASTM
- DNV
Applications targeted with this solution:
- Pressure vessels and piping
- Wind towers
- LNG tanks
- Friction stir welding (FSW)
FocusPC Software
Get the most out of your FOCUS PX with FocusPC Software
Evident offers a complete advanced phased array integration solution that meets the requirements of your most demanding inspections. The solution includes the FOCUS PX, a powerful and scalable acquisition unit; FocusPC, a powerful data acquisition and analysis software program; and three software development kits (SDK), FocusControl, FocusData, and OpenView SDK, to customize your software interface based on your application, and control FocusPC for a fully automated inspection solution.
Convenient Interface
FocusPC is designed to give easy access to the most commonly used features, improving user experience and efficiency.

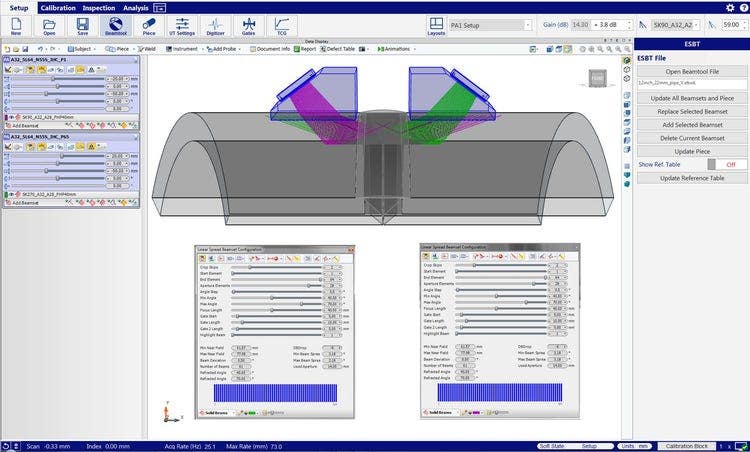

Toolbar

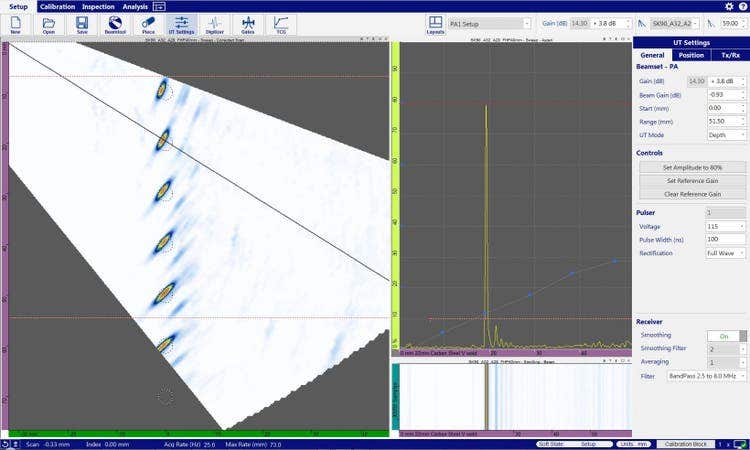

Quick access to the design, calibration, inspection and analysis features.
Optimized setup, acquisition, and analysis layouts
Freely subdivide and reorganize the different views.
Dashboard
Convenient group and inspection sequence management.
Powerful Tools
Design:
PA, UT, and TOFD acoustic configurations.
Calibration:

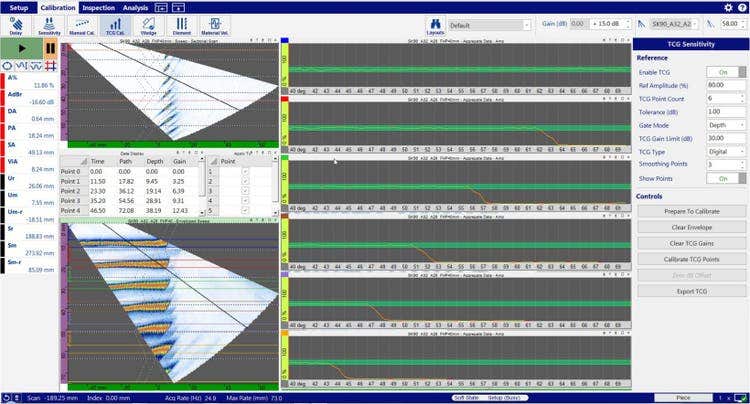

Beam delay, sensitivity and TCG calibration.
Inspection:
Part geometry and automation management.
Analysis:
Powerful features for optimized data analysis.
Powerful Acquisitions Features
FocusPC contains high-performance acquisition features that maximize the FOCUS PX performances and optimize inspection speed. FocusPC can drive up to four FOCUS PX units in parallel, enabling advanced multiprobe configurations and further reducing cycle time.
Easy Connection
The FOCUS PX seamlessly connects to any computer that has FocusPC installed, greatly simplifying the configuration process.
Advanced Analysis Tools

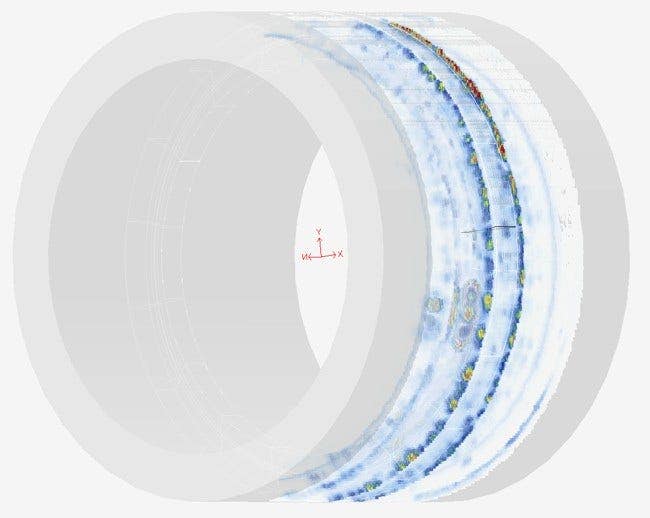

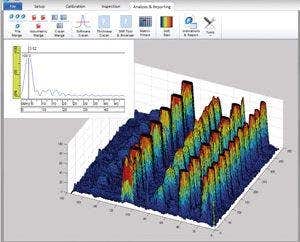

Advanced analysis tools are available in FocusPC so that you can get the most out of your FOCUS PX inspection data. Use the advanced data processing algorithms to extract valuable information and make the analysis process more efficient.
Fully Customizable Displays

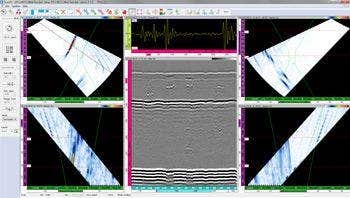

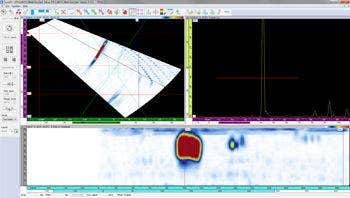

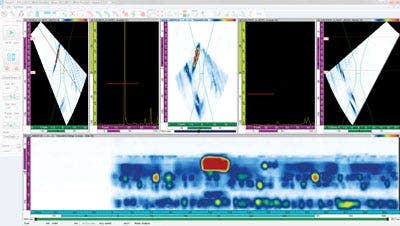

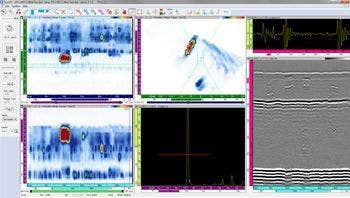

FocusPC has fully customizable displays that can be adapted to better serve specific application requirements. Each view also has multiple customizable options, optimizing user experience and operator efficiency. Freely subdivide and reorganize the different views to create optimized setup, acquisition, and analysis layouts.
Software Development Kits
Software Development Kits (SDK)
In addition to the FocusPC acquisition software, Evident offers three software development kits (SDK), FocusControl, FocusData, and OpenView SDK, to customize your software interface based on your application and control FocusPC for a fully automated inspection solution.

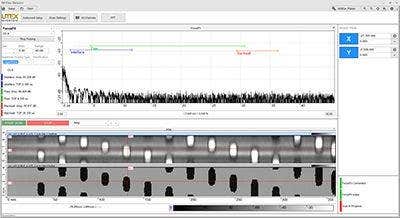

OpenView SDK
For applications that require specific features or a specific interface not offered by our standard software, the OpenView SDK enables you to create your own interface with the features required for your application. OpenView SDK is compatible with InspectionWare from UTEX and the HaroUT LabView library from Harotek.

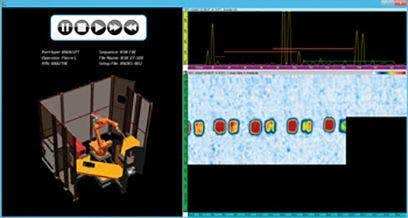

Application-Dedicated User Interface
Build dedicated user interfaces based on the application requirements and make the inspection process more efficient. This provides better system workflow control and helps reduce the chance of operator-related mistakes.
Photo Courtesy of DTEC GmbH Germany
Inspection Process Automation
Use the FocusData and FocusControl SDKs to develop custom software to control the FOCUS PX and fully automate the inspection process, optimizing cycle time and improving overall system efficiency.
Custom Data Analysis
Use the SDKs to gain direct access to inspection data from custom software, enabling the development of application-dedicated data representations and customized analysis tools.
Applications
Friction Stir Weld Inspection
The high-end FOCUS PX specifications enable stir weld inspection (FSW) inspection to be performed at faster pace than ever before while maintaining unequaled signal quality. The high data throughput capability enables uncompressed A-scan to be retrieved without compromising inspection speed.
Automated Train Wheel Inspection Systems

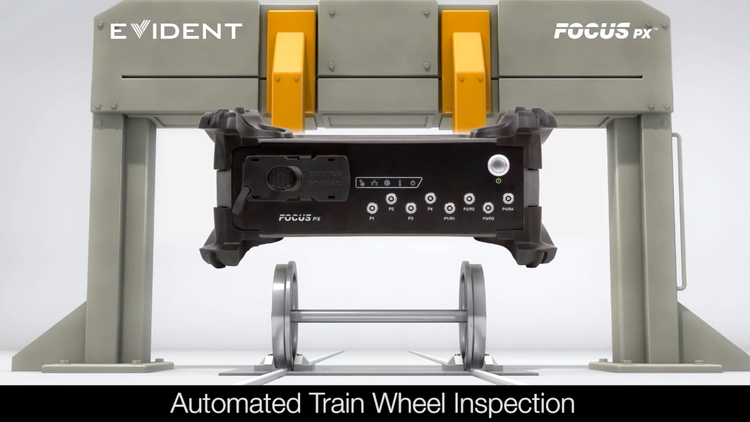

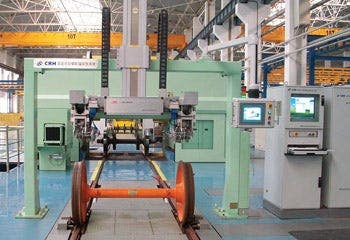

Railway transport continues to play an important role in the transportation industry; due in large part to its speed, reliability, and affordability. To maintain this viability, ensuring train safety and integrity is key. Stringent regulations are imposed on the inspection of train wheels and axles in both the manufacturing and service sectors. To meet and exceed these strict criteria, Evident provides the power and flexibility of its FOCUS PX/PC package to experienced and knowledgeable integrators, who are then able to deliver fully code-compliant inspection systems.
Automated Composite Part Inspection Systems

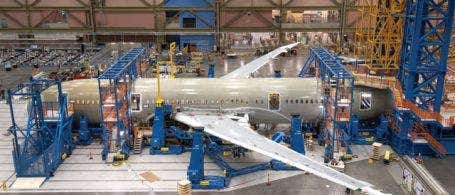

Aircraft manufacturers and suppliers are under intense pressure to continually improve the inspection rates of the laminar composite parts used in planes. To meet this challenge, Evident has developed a line of integrated instrumentation that is especially designed for high-performance composite inspection systems.
Specifications
Front

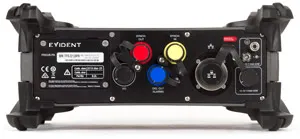

Back
16:128PR/32:128PR: 128
32:128PR: 32 consecutive elements
(8 connectors for pulse-echo and pitch-catch configurations support)
Up to 60 MB/s (2 to 4 FOCUS PX)
UT : 50 V, 100 V, and 190 V
UT : 120 dB (digital)
UT : 30 ns to 1000 ns (steps of 2.5 ns)
UT : 0.25 MHz to 28 MHz
UT : 1, 2, 4, 8, 16, 32, 64
With bumpers
(12 in. × 5.3 in. × 9.3 in.)
Without bumpers
(10.9 in. × 3.6 in. × 9.1 in.)
With bumpers
Without bumpers
