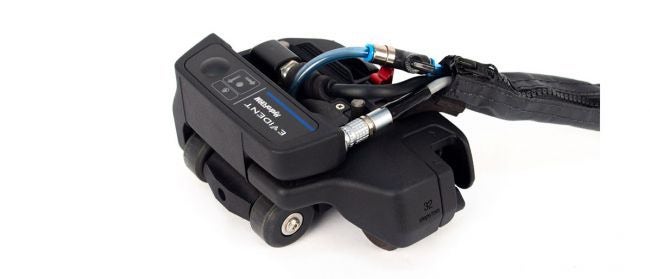

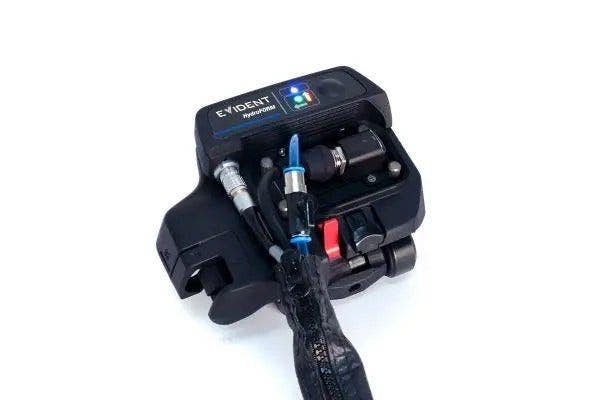

HydroFORM Semi-Automated Scanner
An easy-to-deploy 2-axis encoding PA solution, the HydroFORM semiautomated scanner enables fast and reliable high-resolution data acquisition of large surfaces. To ease raster scanning, it’s equipped with X and Y encoders, a unique water column system, and coupling check and position indicators.
An easy-to-deploy 2-axis encoding phased array (PA) solution, the semiautomated HydroFORM scanner enables fast and reliable wall-thickness mapping and midwall damage detection by acquiring high-resolution data of large surfaces in minimal time. While the standard HydroFORM package comes equipped with the proven phased array linear probe and local immersion system, you can now choose for a dual array probe configuration. Both options allow for a resolution of up to 1 mm × 1mm.
To optimize the productivity of raster scanning, the HydroFORM system is equipped with several efficiency-boosting features:
- Integrated X and Y axis encoders
- Smart indexing button
- Index position and coupling indicators
- Scan speed check
- Efficient bubble management (with I8 linear probe)
- Easy-to-index magnetic wheels (with REX2 DLA probe)
- Braking system
Easily adapting to curvatures 4 in. OD (101 mm) and greater, this PA solution facilitates a wide range of applications including:
- Monitoring wall-thickness reductions due to corrosion, abrasion, and erosion
- Detecting midfall damage, such as hydrogen-induced blistering or manufacturing-induced lamination, and differentiating these anomalies from loss of wall thickness

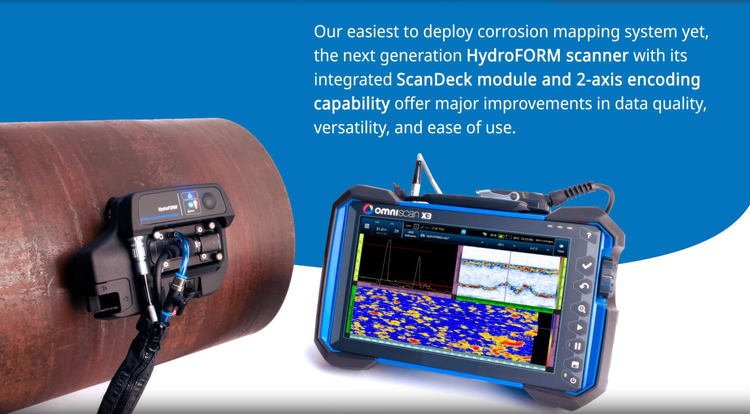

High-Performance Corrosion Mapping for Rough and Uneven Surfaces

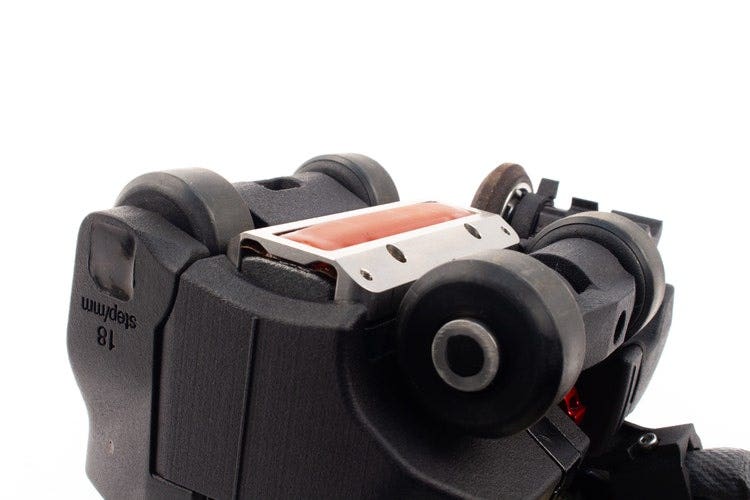

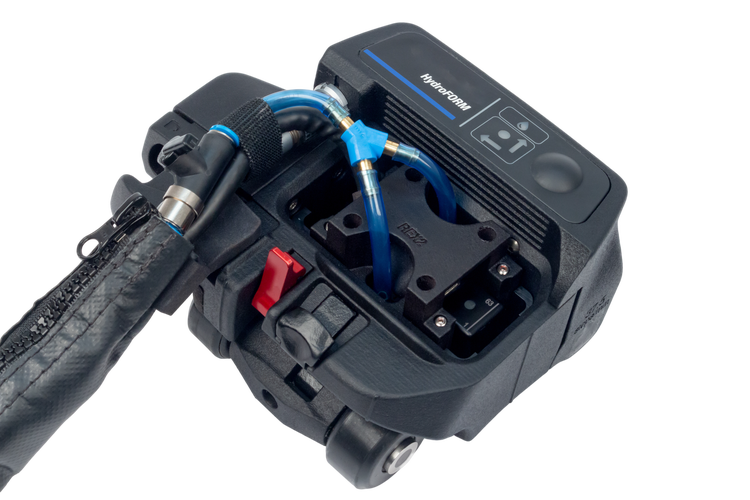

Achieve immersion-tank-quality phased array inspection without concerns about water coupling. The HydroFORM scanner's unique low-flow water-column design with foam gaskets conforms to the surface, eliminating the need for a wedge.
Other innovative features of the HydroFORM water-coupling system:
- Coupling check LED indicates when the water supply is too low
- Gasket protector to prolong the use-life
HydroFORM Polymer System: Corrosion Mapping Beyond Water-Coupled Inspections
The HydroFORM polymer system expands the inspection range of the HydroFORM scanner by replacing the traditional water delay line with a specially engineered polymer delay line. This innovative option enables reliable corrosion mapping in temperature conditions and inspection environments where maintaining a water delay line is difficult, impractical, or impossible.
Built on the proven performance and ease of use of the HydroFORM scanner, the polymer system is available in two specialized formulations optimized for either high-temperature or low-temperature inspections, extending the operating range of HydroFORM from −20 °C to 175 °C (−4 °F to 347 °F).
While the standard water delay line remains the preferred solution for rough, uneven, or highly irregular surfaces, the polymer system offers significant advantages for:
- In-service inspections where asset cooling is undesirable or impossible
- Cold process equipment and outdoor assets operating below freezing temperatures
- Inspection environments where traditional water-coupled operation is difficult or impractical
- Rope-access and at-height inspections where eliminating continuous water supply simplifies deployment
Innovative Polymer Delay Line Technology
The HydroFORM polymer system combines a high-performance polymer delay line with a protective membrane to deliver reliable ultrasonic performance while overcoming many of the traditional limitations associated with polymer-based delay lines.
While the polymer delay line has been carefully selected to provide optimal acoustic performance, the protective membrane helps ensure consistent coupling and acts as a protective barrier that prevents direct contact between the polymer and the inspection surface. This design eliminates the risk of the polymer sticking to or wearing against the surface during scanning, improving both durability and ease of operation.
Reliable Corrosion Mapping on Hot Assets up to 175 °C (347 °F)
Water-based delay lines become increasingly difficult to use as temperatures rise. As surfaces approach 100 °C (212 °F), water can boil and generate vapor bubbles that interfere with ultrasonic transmission and reduce data quality.
The HydroFORM High-Temperature polymer system replaces water with a specially formulated heat-resistant polymer, enabling reliable corrosion mapping on surfaces up to 175 °C (347 °F) with up to 30 minutes of scanning time between cooling.
Low-Temperature Inspections Down to −20 °C (−4 °F)
Water-based delay lines are also limited in cold environments where freezing prevents reliable operation.
To address this challenge, Evident is using a dedicated low-temperature polymer with optimized acoustic properties designed specifically for cold-service inspections. This configuration allows to perform inspections from −20°C (−4°F) to 50°C (122°F). Effortless High-Resolution
Corrosion Mapping with the REX2 DLA Probe
Increase the versatility and efficiency of corrosion mapping with the HydroFORM scanner by opting for the REX2 Dual Linear Array™ probe.
- See critical defects closer to the surface thanks to its high near-surface resolution enabled by angled transmitter-receiver arrays.
- Optimized for phased coherence imaging (PCI) and total focusing method (TFM) imaging, improving the detection of corrosion mechanisms such as H2S.
- Hard-wedged suspension system removes the need for an external water pump, easing difficult-access inspections, such as rope access or at heights.
- Wheel stabilization promotes smoother scanning (compared with a carbide system).
- 64 mm long active area and larger coverage (dual 64-element or dual 32-element) accelerates data acquisition, permitting high-throughput scanning with automated scanners, such as the motorized MapROVER scanner and remote-controlled SteerROVER scanner.
ScanDeck™ Module
Integrated Controls and Status Indicators

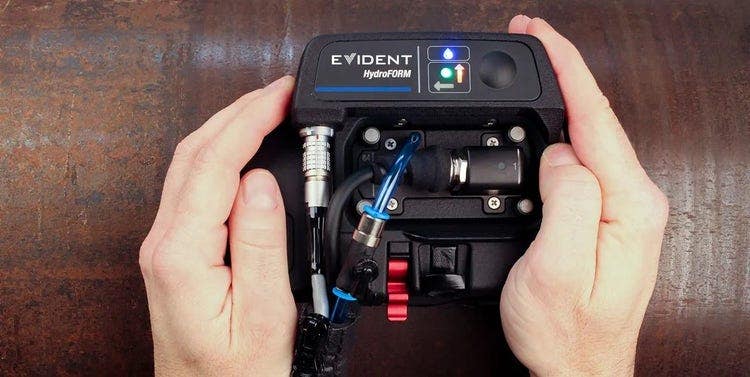

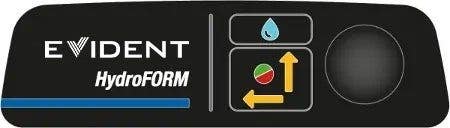

The ScanDeck module is like your scanning dashboard, situated directly in your eyeline while you operate the HydroFORM scanner. Using a combined HydroFORM and OmniScan™ X4 solution, you fully benefit from all the functionalities of the ScanDeck module.

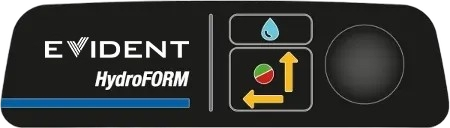

Indicator LEDs:
- Index position guidance
- Insufficient coupling warning
- Alert when maximum scan speed exceeded
- Active encoder (X or Y)
Control button:
- Start the data acquisition on the OmniScan X4 unit
- Switch between guided and freehand scanning modes
- Toggle between index and scan axis scanning
Complete PA Solution

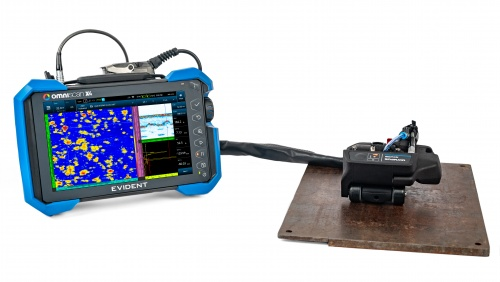

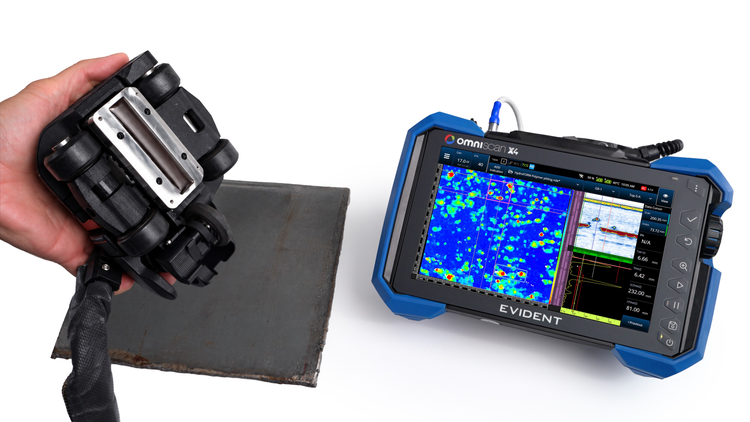

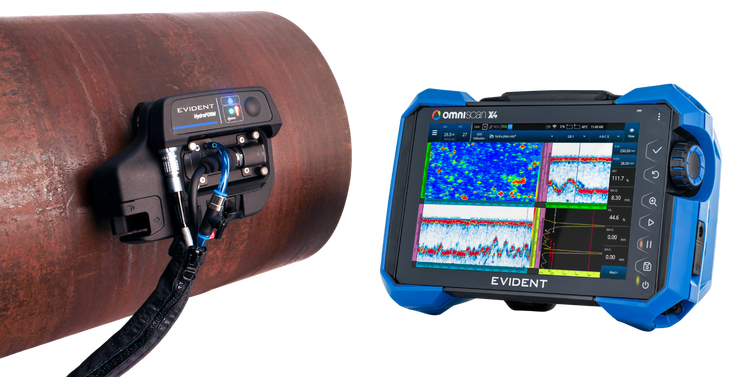

HydroFORM Scanner and Omniscan X4 Multitechnology Flaw Detector
By combining a water column system with gate synchronization on the interface echo available in the OmniScan X4 software, the HydroFORM scanner provides class-leading signal quality, reliable remaining wall measurements, and an enormous improvement in flaw characterization and imaging over conventional UT.
Configurations
Manual Encoded

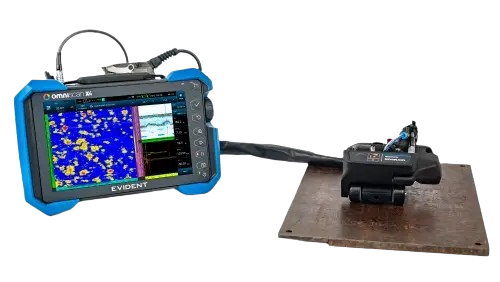

An easy-to-deploy 2-axis encoding PA solution, the HydroFORM scanner has integrated X and Y axis encoders.
Semiautomatic

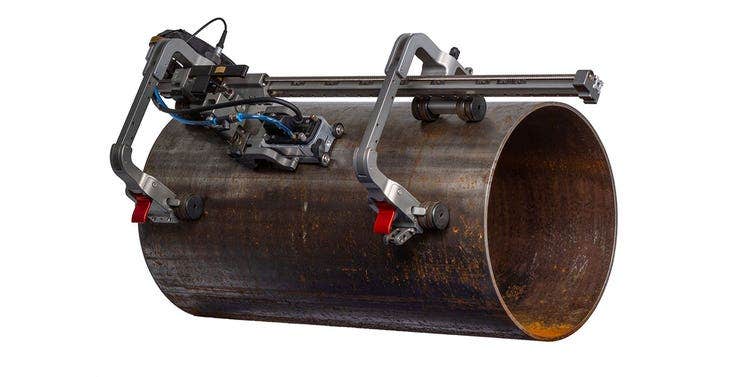

The HydroFORM mounted on a MapSCANNER.
Automatic

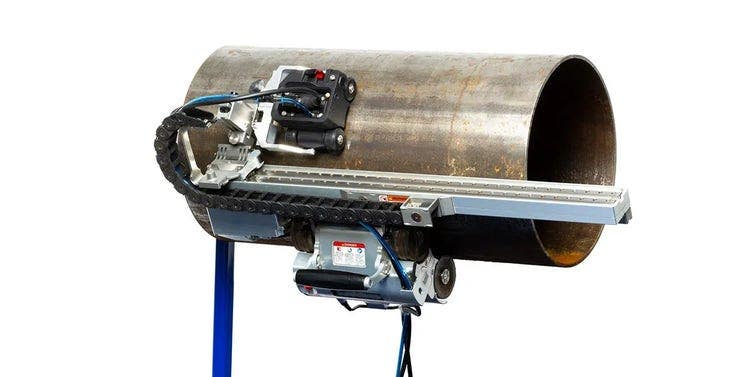

Conduct automated 2-axis corrosion mapping at high acquisition rates using the motorized MapROVER™ scanner and HydroFORM scanner.

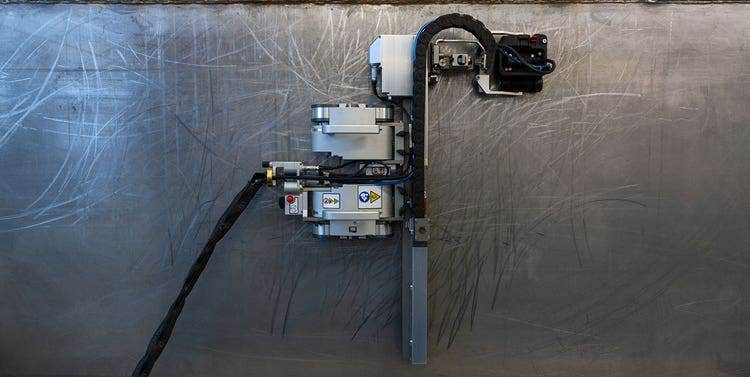

Achieve PA corrosion mapping in difficult-to-reach locations using the remote-controlled SteerROVER™ motorized scanner and HydroFORM scanner.
Specifications
HydroFORM DLA Comparison
| HydroFORM (Water) | HydroFORM (Polymer) | HydroFORM-HT (Polymer) | DLA Corrosion | DLA Corrosion | |
| Phased array probe | 7.5L64-I8-P (linear) | 7.5L64-I8-P (linear) | 7.5L64-I8-S (Linear) | REX2 (Dual) |
REX2-1DEG (Dual) |
| Delay line medium | Water | Blue Polymer | Black Polymer | Rexolite | Rexolite |
| Delay line height | 14 mm or 38 mm | 14mm | 14mm | 7.5 mm | 7.5 mm |
| Roof angle | N/A | N/A | N/A | 5° | 1° |
|
Maximun recommanded inspection thickness (in steel) |
50 mm or 150mm | 50 mm | 50 mm | 30 mm | 95 mm |
| Typical near-surface resolution (1/8 in. FBH) | 1.5 mm | 2 | 2.5 | 1 mm | 1 mm |
| Minimum Surface Temperature (°C) | 5 | -20 | -20 | -20 | -20 |
| Maximum surface Temperature (°C) | 90 | 50 | 175 | 50 | 50 |
| Recommanded usage | Rough and uneven surface | Reduced couplant Low temperature |
Reduced couplant High temperature |
Reduced couplant Near surface resolution (standard thickness) |
Reduced couplant Near surface resolution (thick materials) |
| Inspection range | OD: 4 in. and greater. ID: 10 in. and greater (16 in. with index encoder) | ||||
