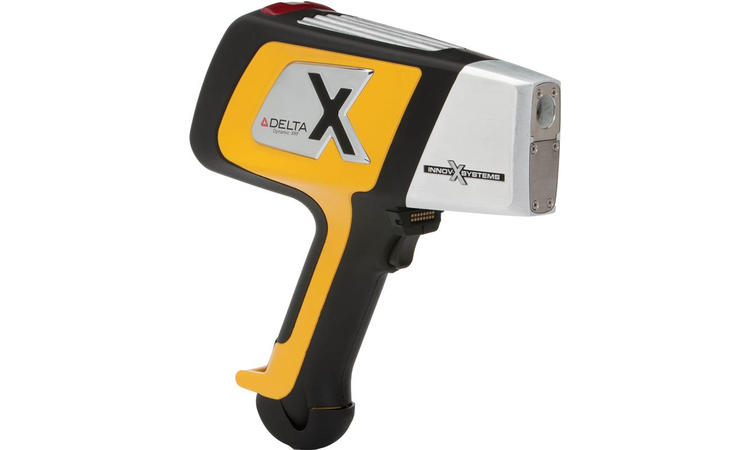

DELTA Professional
Combining a Silicon Drift Detector (SDD) and a 4W optimized X-ray tube, the DELTA Professional provides superior performance in speed, LODs, and elemental range. It analyzes Mg and higher for Alloys and Mining. The DELTA Professional is the best value solution from Olympus for handheld XRF.
This product has been discontinued and is replaced by Vanta Max
XRF Analysis DELTA Professional
The DELTA Professional
With New X-act Count Technology
The DELTA Professional provides excellent performance in speed, LODs, and elemental range. It is housed in an industrial designed body ruggedized to demanding environments. It provides the best mix of durability and analytical performance with lower cost of ownership.
The DELTA Professional Incorporates everything you need in a handheld XRF with state-of-the-art innovations and a rugged design.
Feature and Benefits
Optimized DELTA Configuration
- New X-act Count Technology
- Silicon Drift Detector
- Automatic Filtering
- Application Specific Tubes
Enhanced Analytical Performance
- Light Elements and Alloys
- Mg, Al, Si, and S Sensitivity
- Transition and Heavy Metals
- Rare Earth Elements (REEs)
Value Solution
- Fast Measurement Time
- Broad Elemental Range
- Low Limits of Detection
- Outstanding Precision
- Hot Swap Battery for Continuous Operation
Specifications
The DELTA Professional
The DELTA Professional with new X-act Count Technology is configured with a 40kV miniature X- ray tube, advanced Silicon Drift Detector (SDD), specialized filters, and multi-beam optimization. It is the best value solution from Evident for handheld XRF analyzers. The DELTA Professional provides superior performance in speed, LODs , and elemental range.
DELTA Professional Specifications
Dimensions
260 x 240 x 90 mm (10.25 x 9.5 x 3.5 in.)
Excitation source
4W Ag, Rh, Au, or Ta anode (per application) X-ray tube
Detector
Silicon Drift Detector
Environmental temperature range
-10 °C to 50 °C (14 °F to 122 °F)
Analytical range
Alloy and Mining: Mg and up for Rh/Ag and Al and up for Ta/Au; Soil: P and higher
Processing electronics
530 MHz CPU with integrated FPU with 128 MB RAM; Proprietary Evident X-act Count Digital Pulse Processor (DPP)
Smart Electronics
Barometer for atmosphere pressure correction of light elements' measurements
Power
Rechargeable Li-ion battery; Hot-swap maintains analyzer power during battery change
Display
32 bit Color QVGA resolution, Blanview transmissive backlit touchscreen; 57 x 73 mm (2.25 x 2.9 in.)
Data Storage
1 GB microSD (stores ~75,000 readings)
Data Transfer
USB
Standard Accessories
- Waterproof Carrying Case
- Two (2) Li-ion Batteries
- Electronic User Manual and User Interface Guide and Printed Quick Start Guide
- Docking Station
- Mini USB Cable
- 316 Stainless Steel Calibration Check Reference Coin
- Ten (10) Spare Windows
- Integrated Wrist Strap
- DELTA PC Software
- Factory Authorized Training & Support
Optional Accessories
- XRF WorkStation for mobile benchtop use
- Soil Foot facilitating hands-free In-sltu testing
- Soil Extension Pole offering ergonomic In-sltu testing while standing/walking
- Belt Holster
